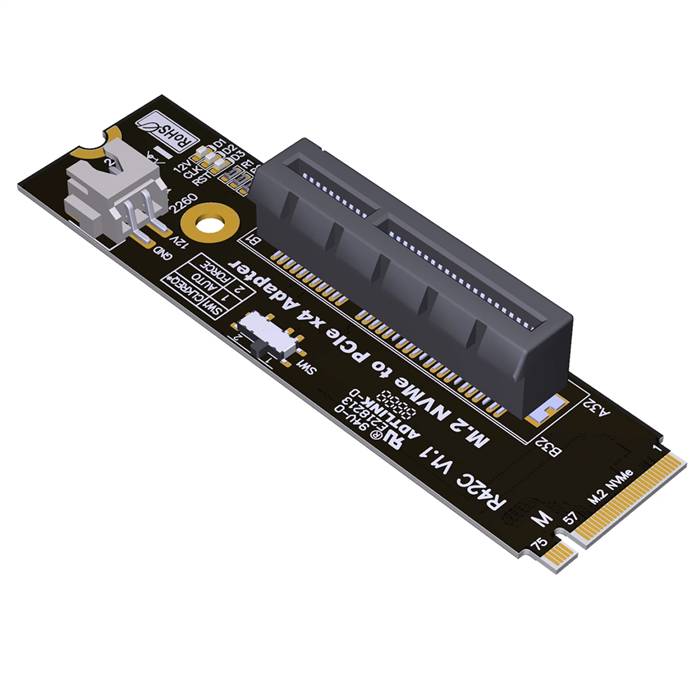

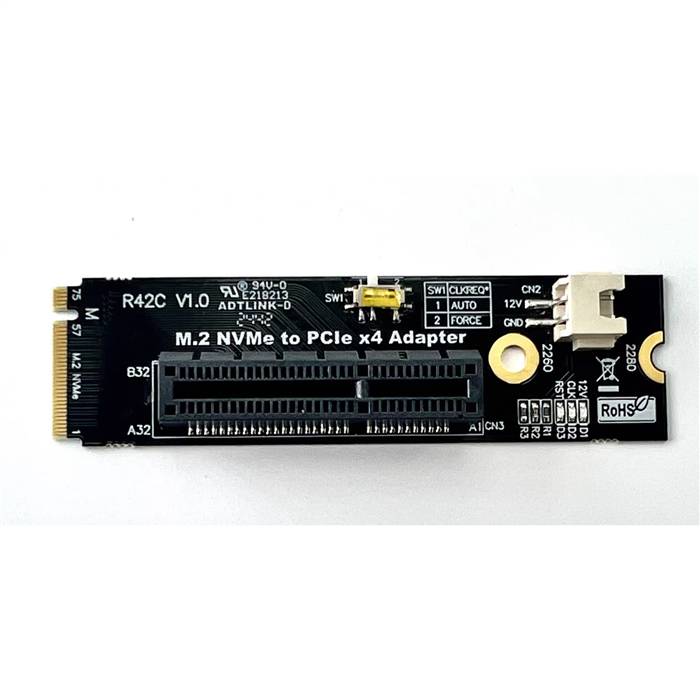

M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter Version 2

The M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter Version 2 is an enhanced interface conversion solution designed for reliable storage expansion in modern computing systems. This second-generation adapter improves upon previous designs with optimized signal integrity, better thermal management, and enhanced construction quality. The adapter enables the installation of M.2 NVMe SSDs in standard PCIe 4.0 x4 slots, providing a practical solution for utilizing high-speed storage devices in systems where dedicated M.2 slots are unavailable. With full PCIe 4.0 x4 lane support, this solution maintains maximum storage performance while offering broad compatibility across various system configurations, from desktop computers to workstations and servers.

Features

• Enhanced Signal Integrity: Improved PCB layout for better signal quality at PCIe 4.0 speeds
• M.2 NVMe M-key Interface: Supports M.2 M-key NVMe SSDs in 2280 form factor
• PCIe 4.0 x4 Compatibility: Converts to standard PCIe 4.0 x4 female slot
• Advanced Thermal Management: Updated heatsink design for better heat dissipation
• Tool-Free Installation: Easy SSD mounting with improved retention mechanism
• LED Status Indicator: Enhanced visual drive activity monitoring
• Universal Compatibility: Works with various M.2 NVMe SSDs and PCIe 4.0 systems

Specifications

• Product Model: M.2 NVMe M-key to PCIe 4.0 x4 Female Adapter Version 2
• Host Interface: M.2 M-key (PCIe NVMe)
• Target Interface: PCIe 4.0 x4 Female
• Supported Form Factors: 2280
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 64 Gbps total bandwidth)
• Supported Protocols: NVMe 1.4, PCI Express 4.0
• Lane Configuration: x4 PCIe lanes from M.2 to x4 slot
• Heatsink Material: Aluminum alloy with improved thermal interface
• Operating Temperature: 0°C to +70°C

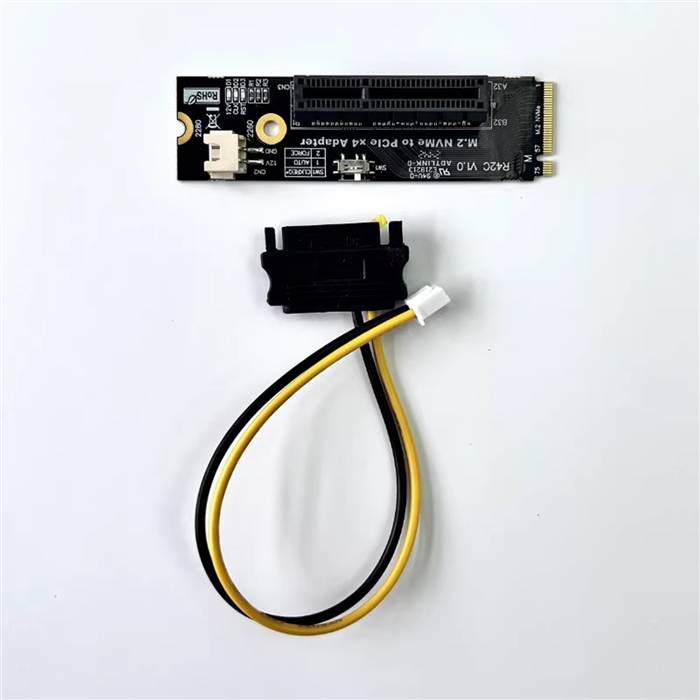

• Power Delivery: 3.3V from PCIe slot
• Board Revision: Version 2 with enhanced layout and components

Applications

• Storage Expansion: Adding high-speed NVMe storage to systems without M.2 slots
• Workstation Upgrades: Expanding storage capacity in professional workstations
• Desktop Computers: Cost-effective storage expansion for consumer systems
• Server Applications: Additional NVMe storage in server environments
• Gaming Systems: High-performance game storage for gaming computers
• Content Creation: Fast storage for video editing and content production
• Backup Solutions: High-speed backup and archive storage
• Test and Development: NVMe SSD testing and validation in PCIe slots
