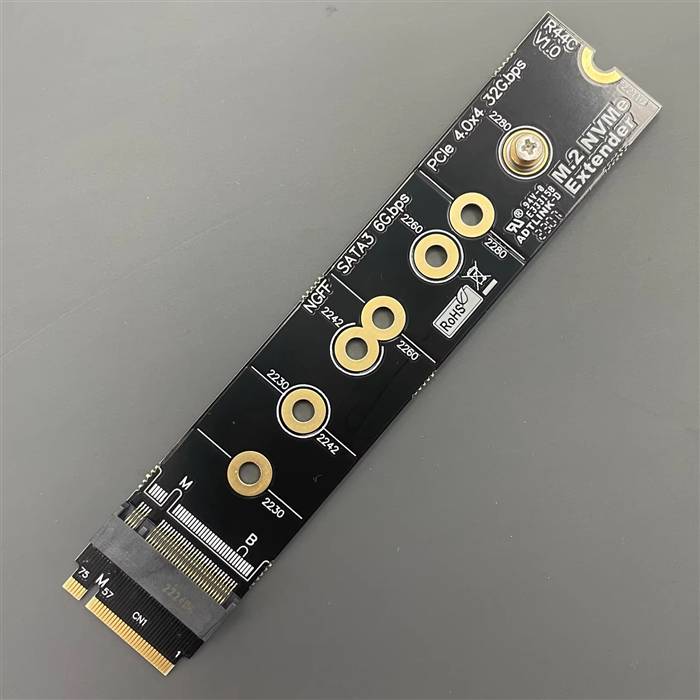

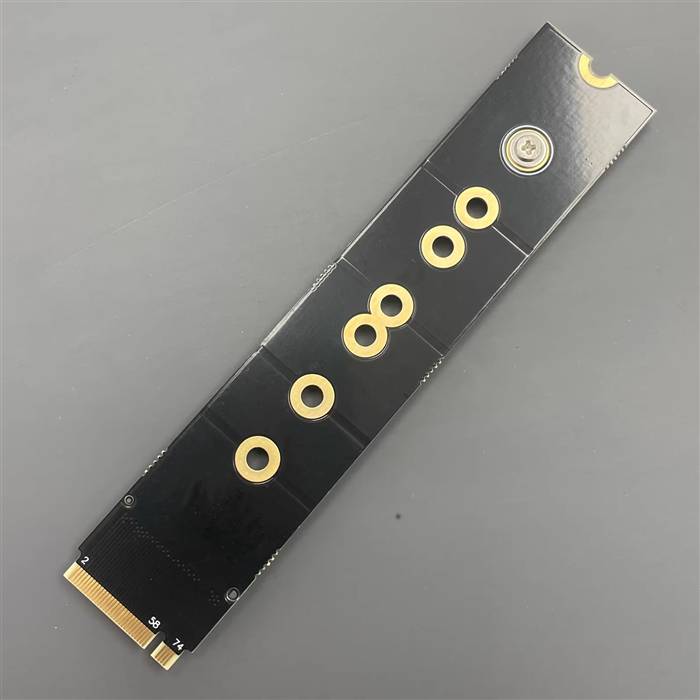

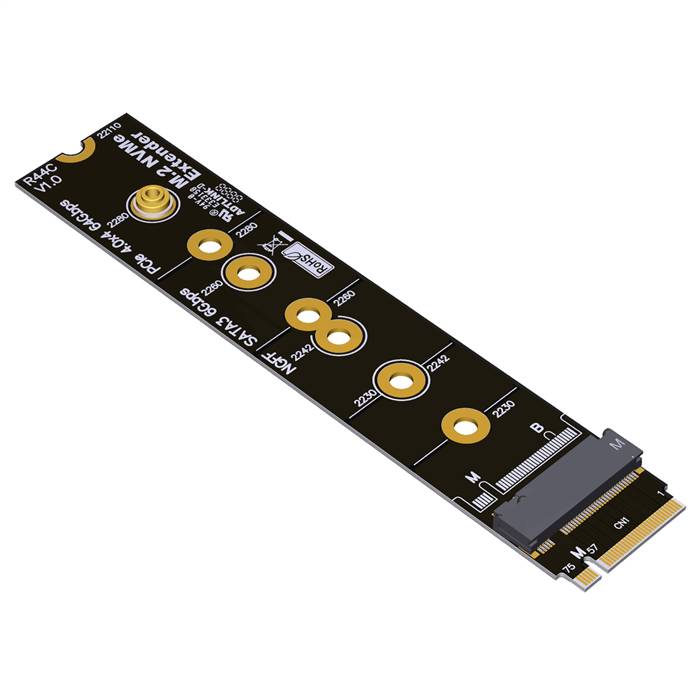

M.2 M-key Male to M.2 M-key Female Test Protection Card

The M.2 M-key Male to M.2 M-key Female Test Protection Card is a specialized testing and validation tool designed for engineering development, quality assurance, and manufacturing testing of M.2 NVMe devices and host systems. This advanced adapter provides a protected interface between M.2 hosts and devices while incorporating comprehensive safety features to prevent damage to expensive components during testing procedures. The card includes integrated circuit protection, signal monitoring capabilities, and test points for detailed signal integrity analysis. Engineered for reliability in laboratory and production environments, this solution is essential for validating M.2 NVMe performance, compatibility, and reliability while safeguarding valuable hardware from potential electrical damage.

Features

• M.2 M-key Interface: Full support for M.2 M-key NVMe male to female connectivity
• Test Protection Circuitry: Integrated protection against shorts, overcurrent, overvoltage, and ESD events
• Signal Integrity Monitoring: Multiple test points for signal quality verification and debugging
• PCIe 4.0/5.0 Compatibility: Supports current and next-generation PCIe specifications
• Hot-Plug Simulation: Safe testing of hot-plug scenarios and power sequencing
• Comprehensive Monitoring: Real-time voltage and current monitoring capabilities
• Robust Construction: Industrial-grade materials for repeated testing cycles

Specifications

• Product Model: M.2 M-key Male to M.2 M-key Female Test Protection Card
• Host Interface: M.2 M-key Male
• Target Interface: M.2 M-key Female
• Supported Form Factors: 2230, 2242, 2260, 2280, 22110
• Data Transfer Rate: Up to 32 GT/s (PCIe 5.0 compatible)
• Supported Protocols: NVMe 2.0, PCI Express 5.0/4.0/3.0
• Protection Features: Overcurrent protection, overvoltage protection, short circuit protection, ESD protection
• Test Points: Comprehensive signal test points for PCIe lanes, power rails, and sideband signals
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V with current monitoring and limiting
• Construction: Military-grade PCB with reinforced connectors and shielding

Applications

• Engineering Validation: Signal integrity testing and validation of M.2 NVMe systems
• Manufacturing Testing: Production line testing of M.2 devices and host systems
• Quality Assurance: Quality control procedures for M.2 NVMe products
• R&D Laboratories: Research and development of M.2 NVMe technologies
• Failure Analysis: Diagnostic testing and troubleshooting of M.2 compatibility issues
• Compliance Testing: Standards compliance verification for PCIe and NVMe implementations
• System Integration Testing: Verification of system compatibility and performance
• Prototype Development: Support for prototype and pre-production system development
