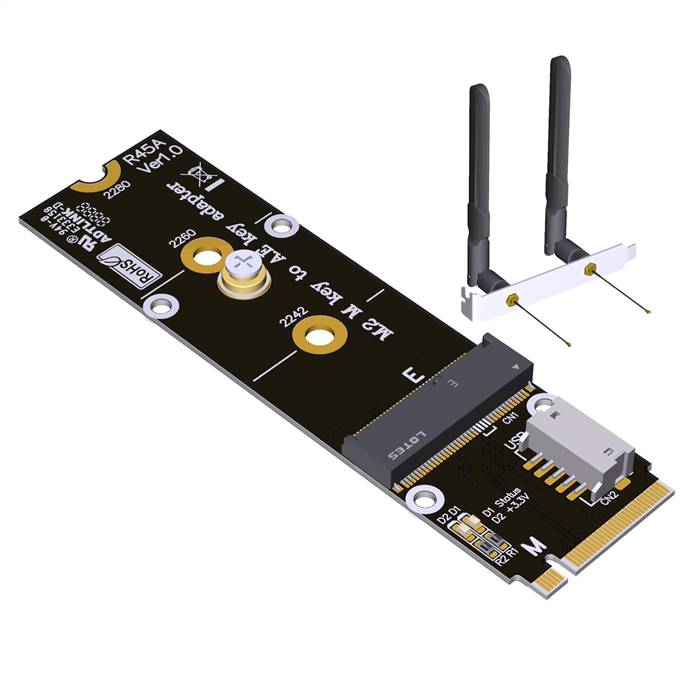

PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card with Accessories Set

The PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card with Accessories Set is a specialized interface conversion solution designed to enable wireless connectivity in systems with available M.2 M-key slots. This innovative adapter repurposes a standard NVMe SSD slot into a functional M.2 E-key interface, allowing the installation of WiFi and Bluetooth modules in systems that lack dedicated wireless capabilities. By utilizing the PCIe and USB signals available from the M.2 M-key host interface, this solution provides both the high-speed PCIe connection required for WiFi and the USB connection necessary for Bluetooth functionality. The included accessories ensure a complete installation package for seamless integration into various computing environments.

Features

• Interface Conversion: Transforms M.2 M-key NVMe slot into a functional M.2 E-key interface
• Dual Signal Support: Provides both PCIe x1 for WiFi and USB 2.0 for Bluetooth functionality
• Universal Compatibility: Supports 2230 form factor M.2 E-key WiFi/Bluetooth modules
• PCIe 4.0 Ready: Compatible with PCIe 4.0 specifications while maintaining backward compatibility
• Complete Accessory Set: Includes all necessary components for immediate installation
• Antenna Connectivity: Features IPEX/U.FL antenna connectors for external antenna connection
• LED Status Indicator: Visual operation status monitoring
• Tool-Free Installation: Designed for easy setup and configuration

Specifications

• Product Model: PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card
• Host Interface: M.2 M-key 2280 (PCIe NVMe)
• Target Interface: M.2 E-key 2230
• Supported Form Factors: 2230 for WiFi modules
• Data Transfer Rate: PCIe x1 up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0, USB 2.0
• Antenna Connectors: 2x IPEX/U.FL connectors
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from M.2 slot
• Compatibility: Windows, Linux, macOS

Accessories Set

• 2x Dual-band WiFi antennas with magnetic bases
• IPEX/U.FL to RP-SMA antenna cables
• Mounting screws for 2230 modules
• Installation guide and documentation

Applications

• Desktop Computer Upgrades: Adding wireless connectivity to systems without integrated WiFi
• Custom PC Builds: Wireless capability for custom and boutique computer systems
• Gaming Rigs: Low-latency wireless connectivity for gaming computers
• Workstation Expansion: Professional workstations requiring reliable wireless networking
• Home Theater PCs: Media center systems requiring wireless network access
• Test and Development: Wireless module testing and validation
• Legacy System Modernization: Upgrading older systems with modern wireless technology
• Embedded Systems: Industrial and commercial applications requiring wireless connectivity
