PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card

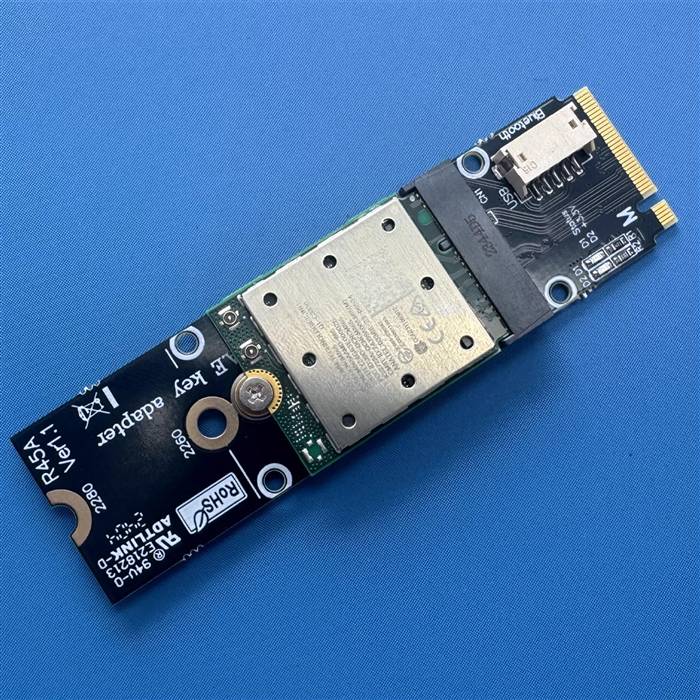

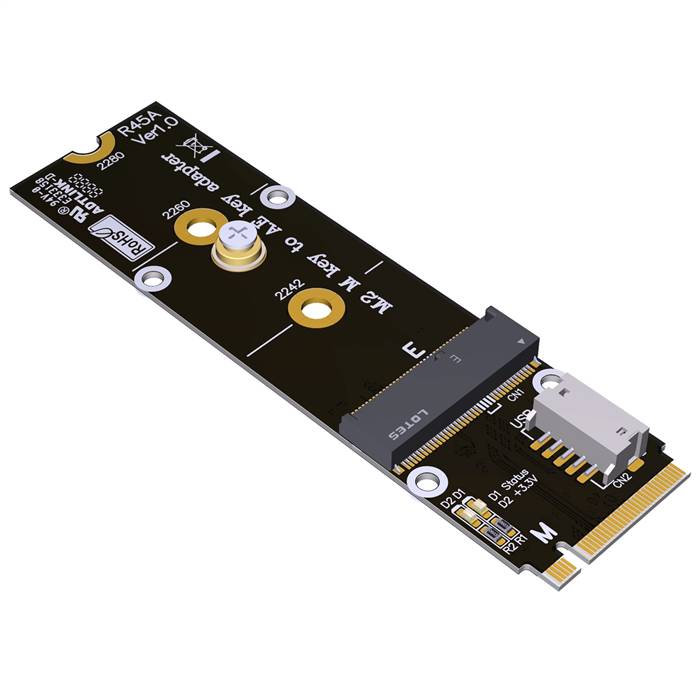

The PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card is a specialized interface conversion solution designed to enable wireless connectivity through available M.2 NVMe slots. This adapter effectively repurposes a standard M.2 M-key SSD slot into a functional M.2 E-key interface, allowing installation of WiFi and Bluetooth modules in systems lacking dedicated wireless capabilities. By utilizing both PCIe and USB signals from the host interface, this solution provides the necessary connectivity for modern wireless modules, including the high-speed PCIe connection for WiFi and USB connection for Bluetooth functionality. The compact design ensures compatibility with various system configurations while delivering reliable wireless performance.

Features

• Interface Conversion: Transforms M.2 M-key NVMe slot into M.2 E-key interface for wireless modules
• Dual Protocol Support: Provides PCIe x1 for WiFi and USB 2.0 for Bluetooth functionality
• Universal Compatibility: Supports standard 2230 form factor M.2 E-key WiFi/Bluetooth modules
• PCIe 4.0 Compatible: Works with PCIe 4.0 specifications while maintaining backward compatibility

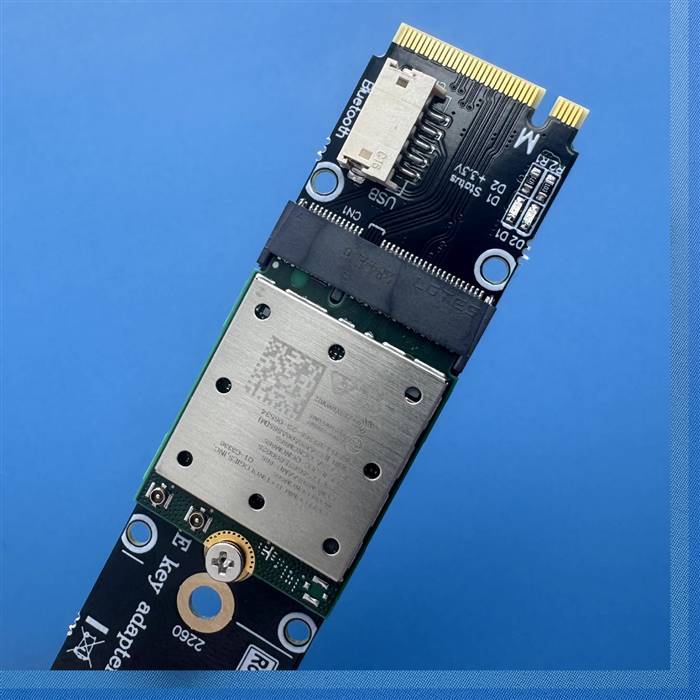

• Antenna Connectivity: Integrated IPEX/U.FL connectors for external antenna connection
• Compact Design: Space-efficient form factor for easy integration
• LED Status Indicator: Visual operation status monitoring

Specifications

• Product Model: PCIe 4.0 M.2 M-key 2280 NVMe to M.2 E-key 2230 WiFi Adapter Card
• Host Interface: M.2 M-key 2280 (PCIe NVMe)
• Target Interface: M.2 E-key 2230
• Supported Form Factors: 2230 for WiFi/Bluetooth modules
• Data Transfer Rate: PCIe x1 up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCI Express 4.0, USB 2.0
• Antenna Connectors: 2x IPEX/U.FL connectors
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from M.2 slot
• Compatibility: Windows, Linux, macOS

Applications

• Desktop Computer Upgrades: Adding wireless connectivity to systems without integrated WiFi
• Custom PC Builds: Wireless capability for custom computer systems
• Gaming Systems: Low-latency wireless connectivity for gaming computers
• Workstation Expansion: Professional workstations requiring wireless networking
• Home Theater PCs: Media center systems requiring wireless network access
• Test and Development: Wireless module testing and validation
• Legacy System Modernization: Upgrading older systems with modern wireless technology
• Embedded Systems: Industrial applications requiring wireless connectivity
