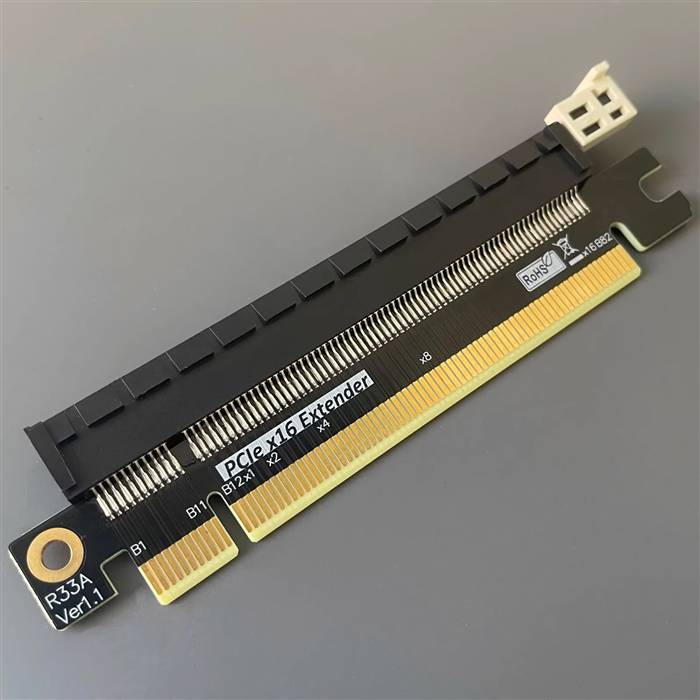

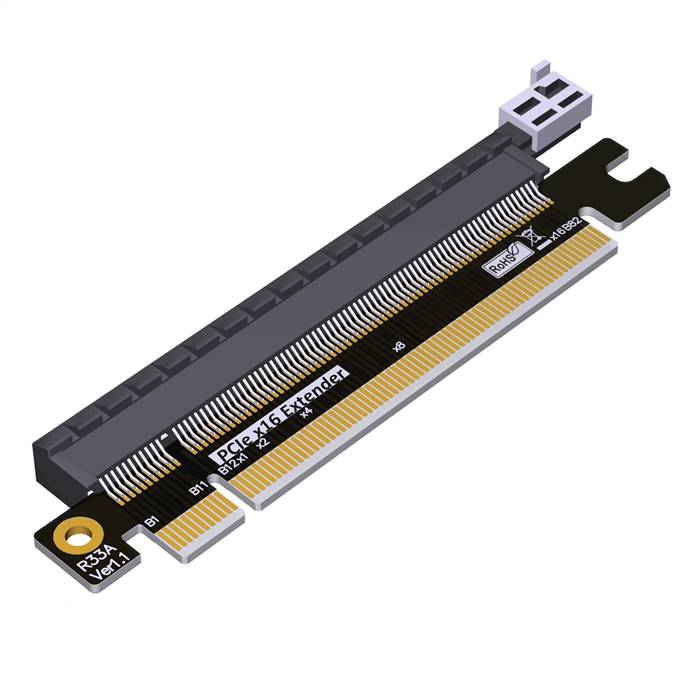

PCIe 4.0 x16 Male to x16 Female Heightened Test Protection Card

The PCIe 4.0 x16 Male to x16 Female Heightened Test Protection Card is a specialized testing and validation tool designed for engineering development, quality assurance, and manufacturing environments. This advanced adapter provides a controlled height extension between PCIe 4.0 x16 interfaces while incorporating comprehensive protection circuitry to safeguard valuable hardware during testing procedures. The card features integrated safety mechanisms that prevent electrical damage to both host systems and connected devices, making it an essential tool for validating PCIe 4.0 performance, compatibility, and reliability. With multiple test points and monitoring capabilities, this solution enables detailed signal integrity analysis while ensuring complete protection for expensive graphics cards, accelerators, and other PCIe devices during testing cycles.

Features

• PCIe 4.0 x16 Interface: Full x16 lane support at 16 GT/s data rates
• Controlled Height Extension: Precisely engineered spacing for testing access and measurement
• Comprehensive Test Protection: Integrated protection against shorts, overcurrent, overvoltage, and ESD events
• Signal Integrity Monitoring: Multiple test points for signal quality verification and debugging
• Hot-Plug Simulation: Safe testing of hot-plug scenarios and power sequencing
• Real-time Monitoring: Voltage and current monitoring capabilities for all power rails
• Robust Construction: Industrial-grade materials for repeated testing cycles

Specifications

• Product Model: PCIe 4.0 x16 Male to x16 Female Heightened Test Protection Card
• Host Interface: PCIe 4.0 x16 Male
• Target Interface: PCIe 4.0 x16 Female
• Height Increase: 25mm standard extension
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 256 Gbps total bandwidth)
• Supported Protocols: PCI Express 4.0
• Protection Features: Overcurrent protection, overvoltage protection, short circuit protection, ESD protection
• Test Points: Comprehensive signal test points for all PCIe lanes, power rails, and sideband signals
• Operating Temperature: 0°C to +70°C
• Power Delivery: 75W slot power with monitoring and current limiting
• Construction: Military-grade PCB with reinforced connectors and shielding

Applications

• Engineering Validation: Signal integrity testing and validation of PCIe 4.0 systems
• Manufacturing Testing: Production line testing of graphics cards and other PCIe devices
• Quality Assurance: Quality control procedures for PCIe 4.0 products and systems
• R&D Laboratories: Research and development of PCIe 4.0 technologies and implementations
• Failure Analysis: Diagnostic testing and troubleshooting of PCIe compatibility issues
• Compliance Testing: Standards compliance verification for PCIe 4.0 implementations
• System Integration Testing: Verification of system compatibility and performance with various PCIe devices
• Prototype Development: Support for prototype and pre-production system development and testing
