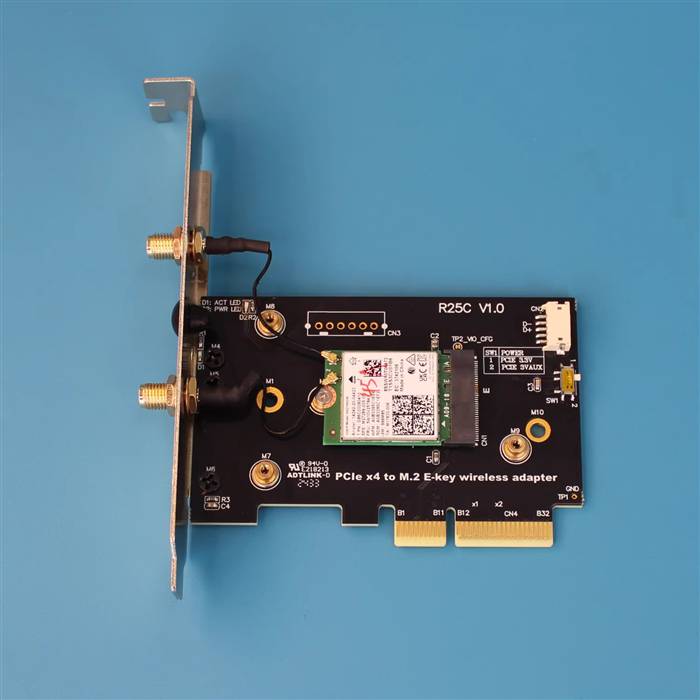

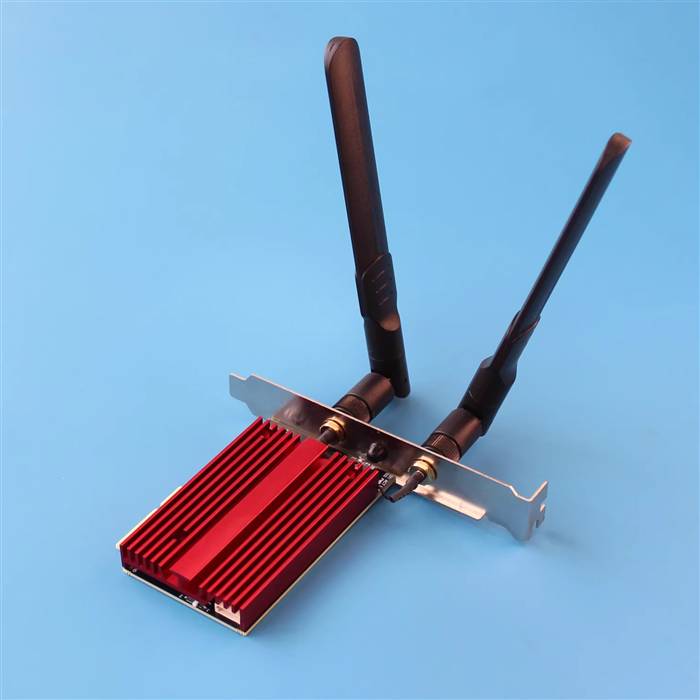

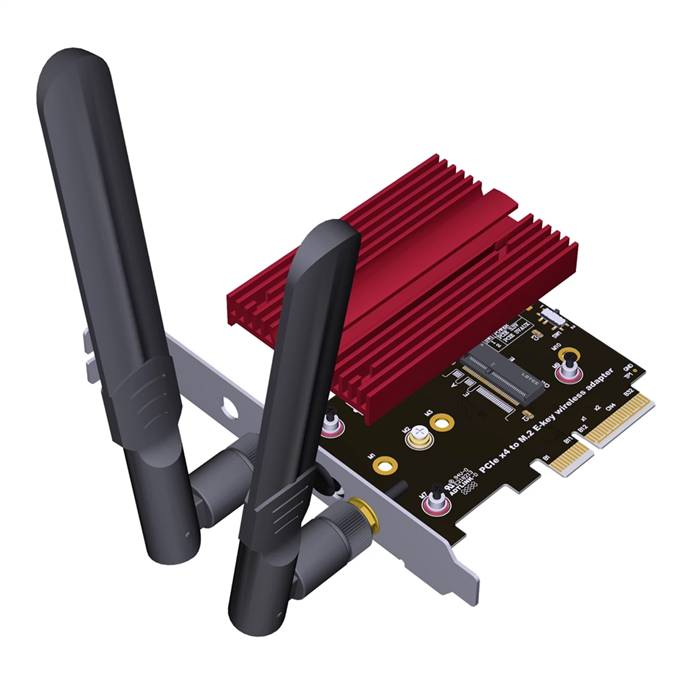

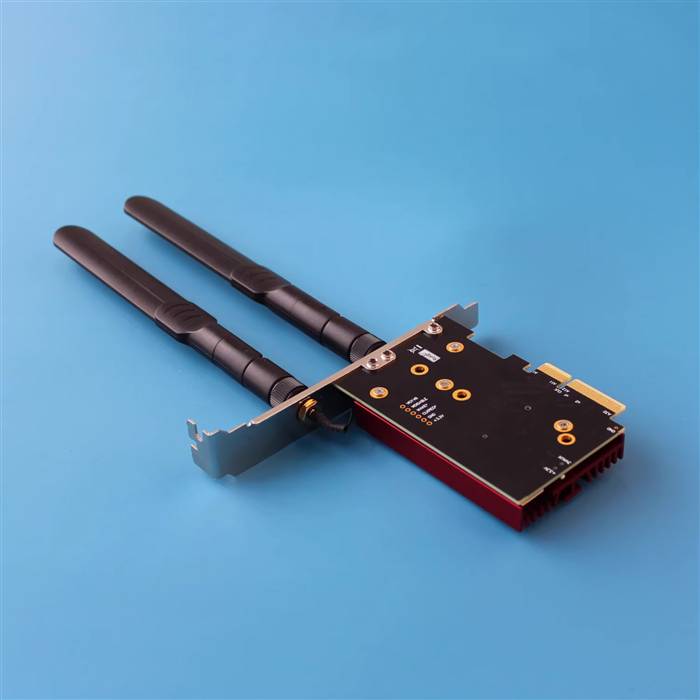

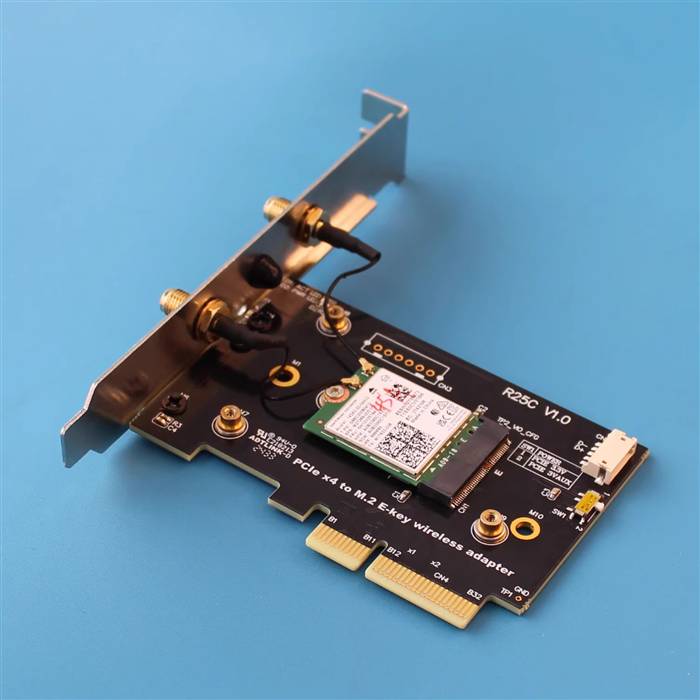

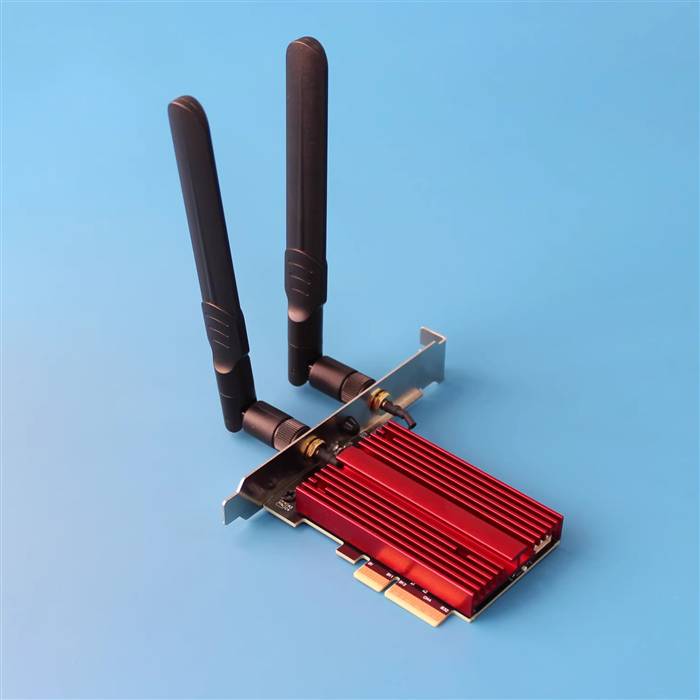

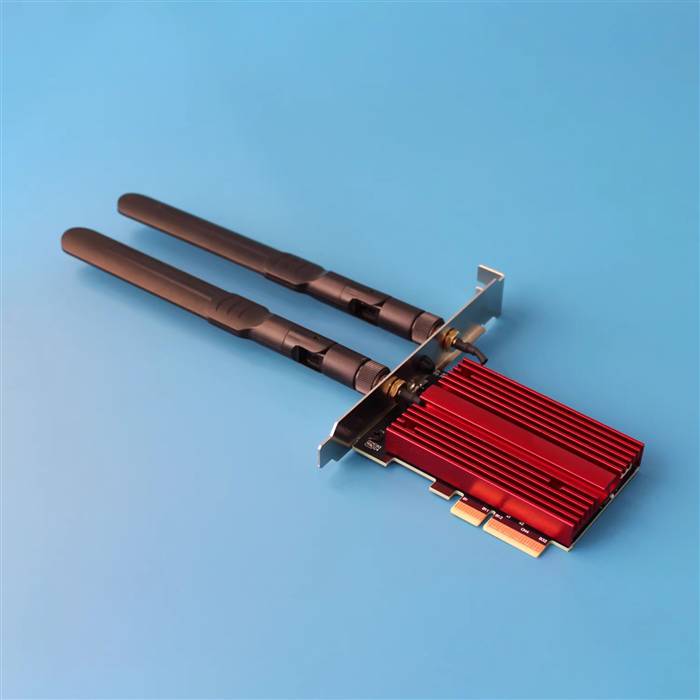

PCIe 4.0 x4 to M.2 E-Key Female WiFi Adapter

The PCIe 4.0 x4 to M.2 E-Key Female WiFi Adapter is a specialized interface conversion board designed to enable wireless network connectivity through a standard PCIe 4.0 x4 slot. This adapter provides a dedicated interface for M.2 E-key WiFi and Bluetooth modules, allowing systems without built-in wireless capabilities to add modern wireless networking features. The solution supports both PCIe and USB 2.0 interfaces required by most M.2 WiFi cards, delivering reliable wireless performance while maintaining compatibility with various M.2 E-key form factors. Ideal for desktop computers, workstations, and custom builds requiring wireless connectivity, this adapter offers a cost-effective solution for adding WiFi and Bluetooth functionality.

Features

• M.2 E-Key Interface: Dedicated connector for M.2 E-key WiFi and Bluetooth modules
• PCIe 4.0 x4 Compatibility: Utilizes standard PCIe 4.0 x4 slot for host connectivity
• Dual Interface Support: Provides both PCIe for WiFi and USB 2.0 for Bluetooth functionality
• Universal Compatibility: Supports 2230 and 2242 M.2 E-key form factors
• External Antenna Support: Includes mounting points for external antenna connectors
• Easy Installation: Tool-free module installation with secure mounting
• LED Status Indicator: Visual activity monitoring for wireless operations

Specifications

• Product Model: PCIe 4.0 x4 to M.2 E-Key Female WiFi Adapter
• Host Interface: PCIe 4.0 x4
• Target Interface: M.2 E-Key Female
• Supported Form Factors: 2230, 2242
• Interface Support: PCIe x1 (for WiFi), USB 2.0 (for Bluetooth)
• Supported Protocols: WiFi 6E (802.11ax), Bluetooth 5.3, and previous generations
• Antenna Connectors: 2x IPEX/MHF4 connectors for external antennas
• Operating Temperature: 0°C to +70°C
• Power Delivery: 3.3V from PCIe slot
• Compatibility: Windows, Linux, macOS

Applications

• Desktop Computer Upgrades: Adding wireless connectivity to desktop systems without integrated WiFi
• Custom PC Builds: Wireless capability for custom and boutique computer systems
• Workstation Expansion: Professional workstations requiring reliable wireless networking
• Gaming Systems: Low-latency wireless connectivity for gaming computers
• Home Theater PCs: Media center systems requiring wireless network access
• Office Workstations: Business computers needing WiFi and Bluetooth capabilities
• Test and Development: Wireless module testing and validation
• Legacy System Modernization: Upgrading older systems with modern wireless technology
