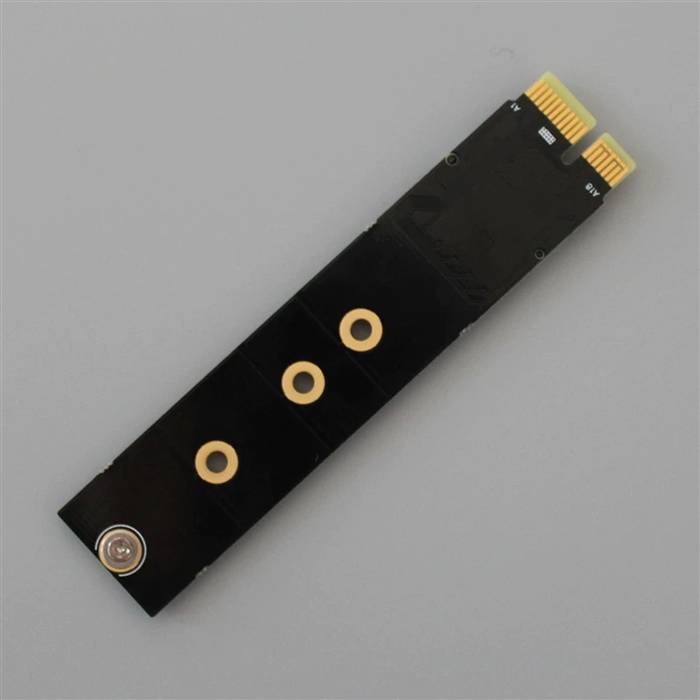

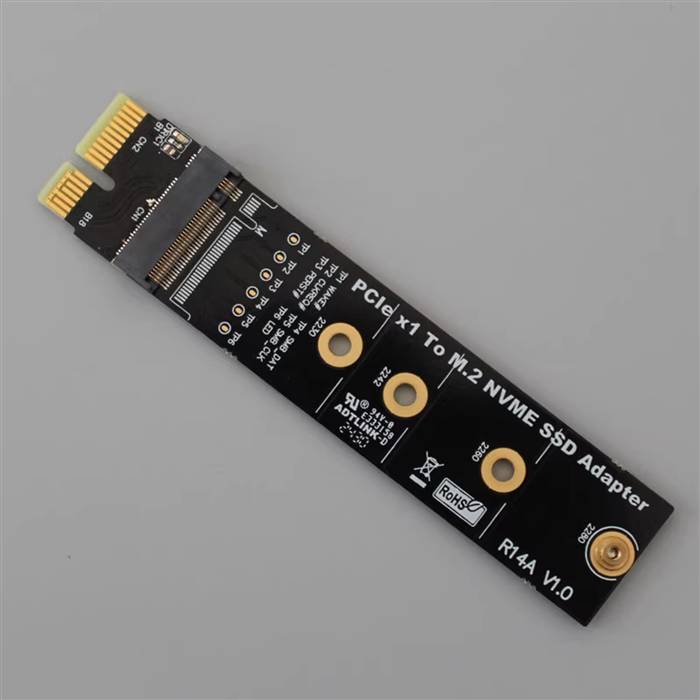

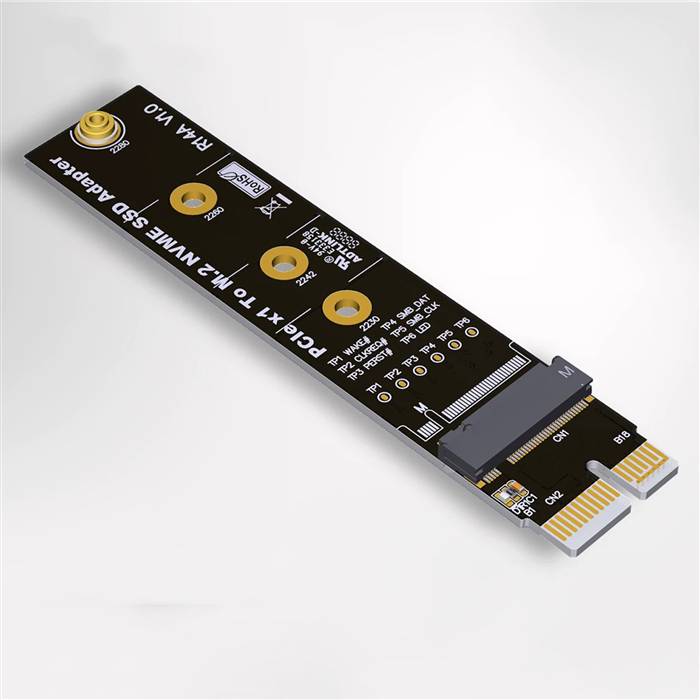

PCIe 5.0 x1 to M.2 NVMe SSD Adapter

The PCIe 5.0 x1 to M.2 NVMe SSD Adapter is a high-speed interface conversion board designed to enable M.2 NVMe SSD connectivity through a PCIe 5.0 x1 slot. This compact adapter allows users to add high-performance NVMe storage to any system with an available PCIe 5.0 x1 slot, providing an efficient solution for storage expansion and system upgrades. While operating at PCIe 5.0 speeds, this adapter delivers significantly improved storage performance compared to traditional SATA-based solutions, making it ideal for users seeking to maximize their system's storage capabilities without requiring full x16 PCIe slots or dedicated M.2 motherboard connectors.

Features

• PCIe 5.0 x1 Interface: Leverages the high bandwidth of PCIe 5.0 technology

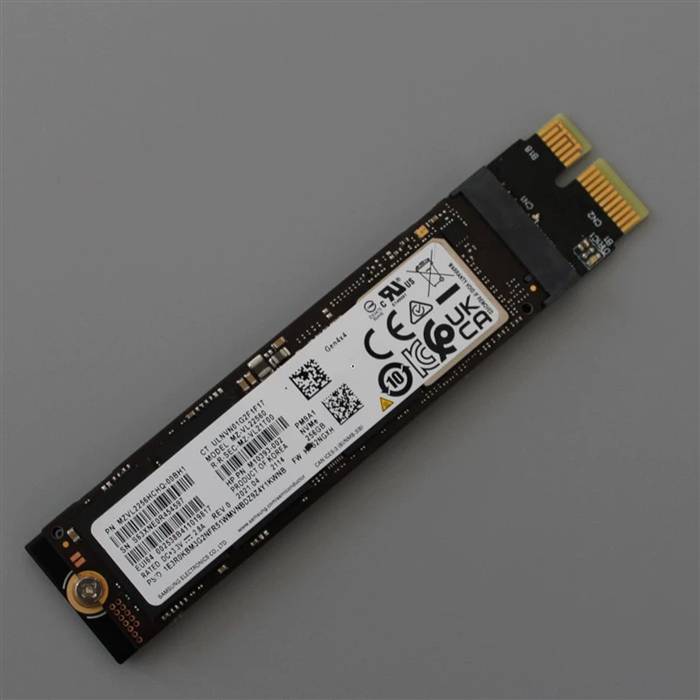

• M.2 NVMe Support: Compatible with M-key NVMe SSDs in 2280, 2260, and 2242 form factors
• High-Speed Data Transfer: Supports PCIe 5.0 data rates up to 32 GT/s per lane
• Compact Design: Space-efficient PCB layout for easy installation in tight spaces
• Universal Compatibility: Works with both consumer and enterprise NVMe SSDs
• Easy Installation: Tool-free mounting for quick setup and configuration

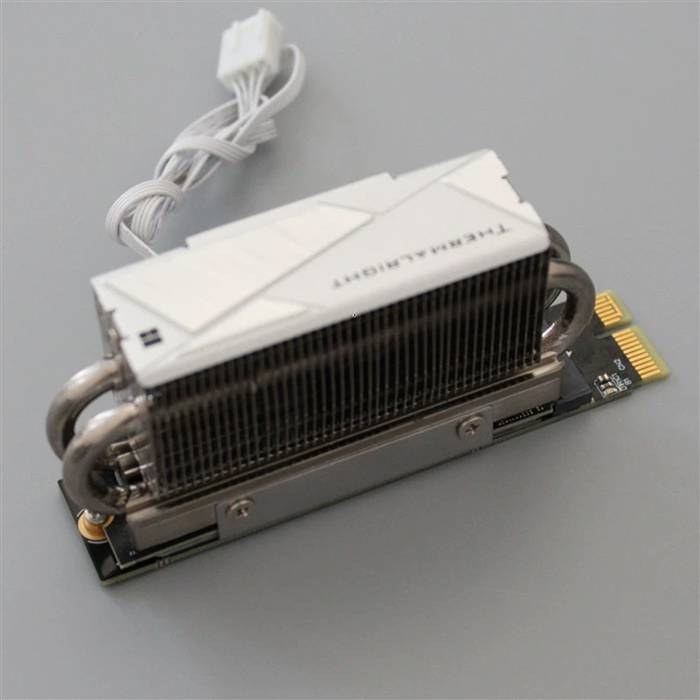

• Heat Management: Includes thermal pad for basic SSD cooling requirements

Specifications

• Product Model: PCIe 5.0 x1 to M.2 NVMe SSD Adapter

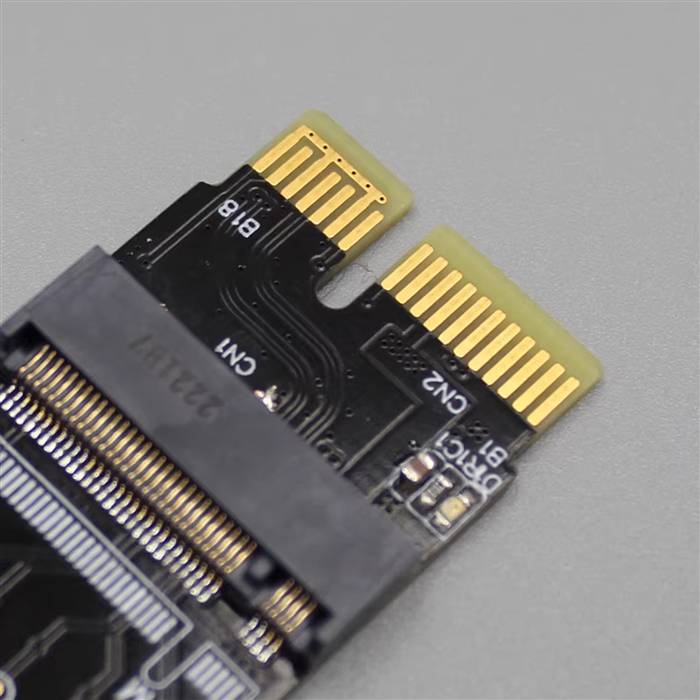

• Host Interface: PCIe 5.0 x1 Slot
• Target Interface: M.2 M-key (NVMe)
• Supported Form Factors: 2280, 2260, 2242
• Data Transfer Rate: Up to 32 GT/s (approximately 4 GB/s total bandwidth)
• Supported Protocols: NVMe 2.0, PCI Express 5.0
• Board Material: High-quality FR-4 PCB
• Operating Temperature: 0°C to +70°C
• SSD Mounting: Tool-free installation with included standoff
• Compatibility: Windows, Linux, macOS

Applications

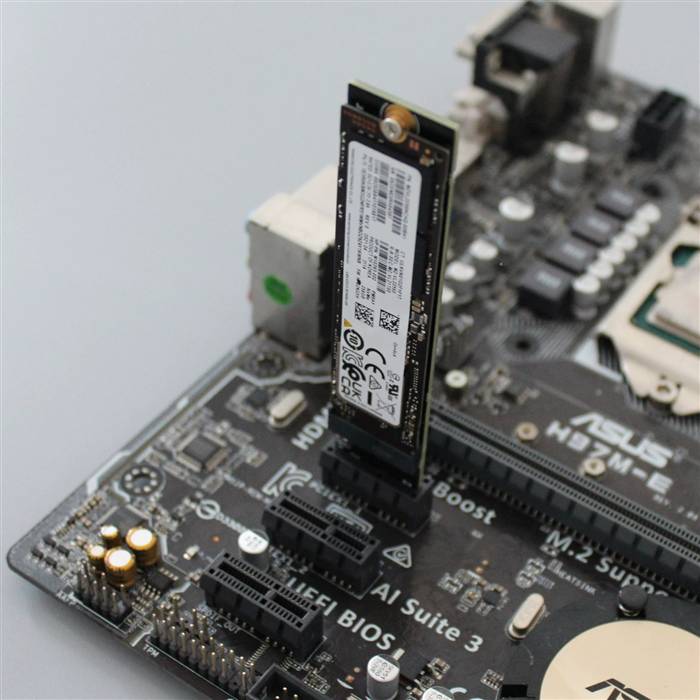

• Storage Expansion: Adding high-speed NVMe storage to systems with available PCIe x1 slots
• System Upgrades: Modernizing older systems with PCIe 5.0 capability
• Workstation Enhancement: Expanding storage capacity for creative and professional workloads
• Server Applications: Additional NVMe storage in server environments
• Test and Development: NVMe SSD testing and validation
• Backup Solutions: High-speed backup and archive storage
• Gaming Systems: Additional fast storage for game libraries
• OEM Integration: Custom storage solutions for system builders
