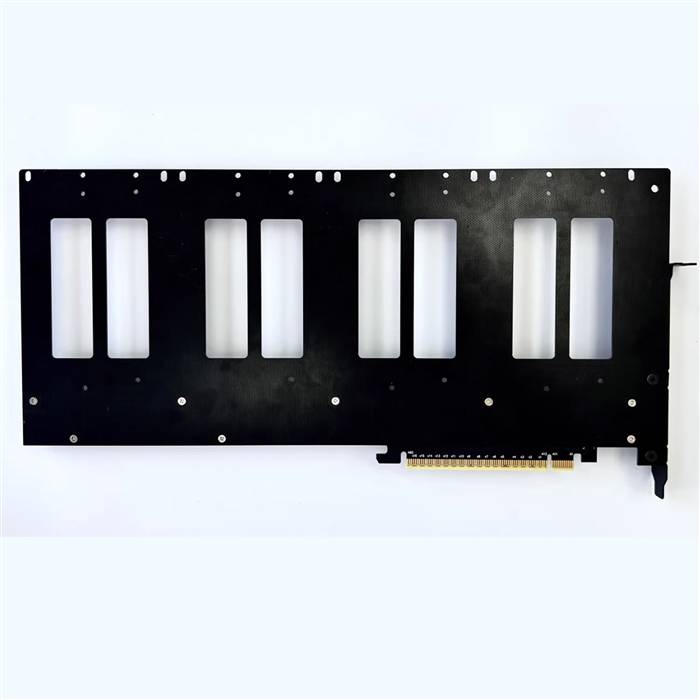

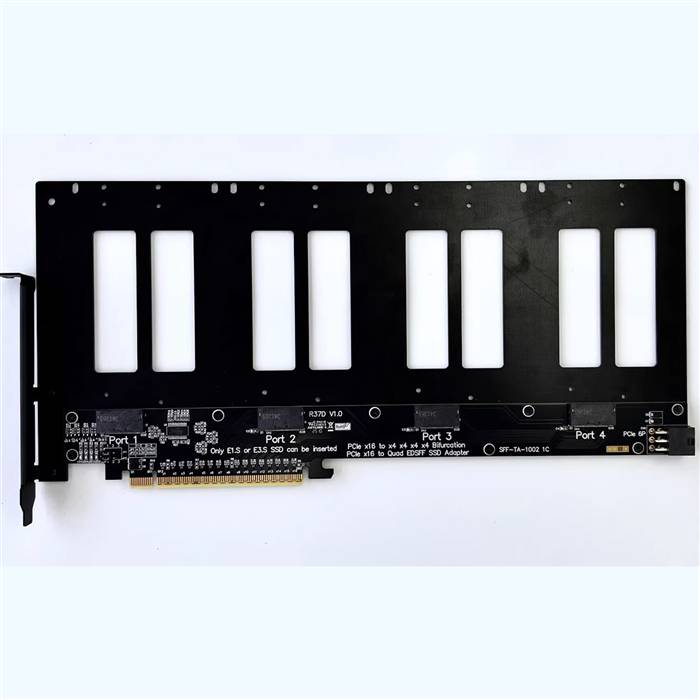

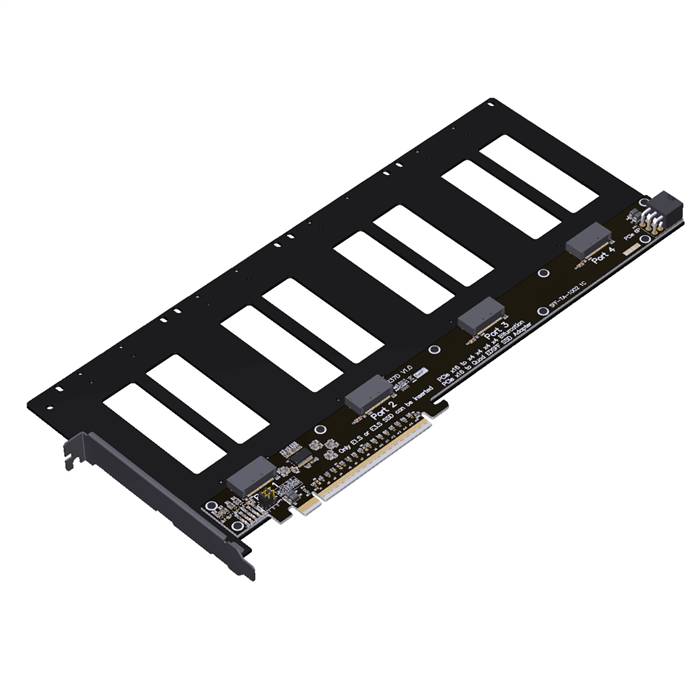

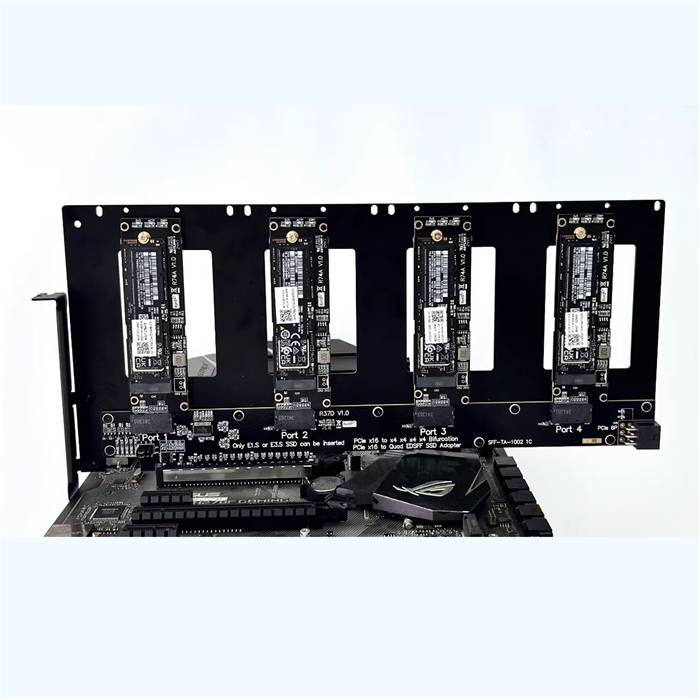

PCIe 5.0 x16 to 4-port E1.S/E3.S(SFF-TA-1002) Adapter

The PCIe 5.0 x16 to 4-port E1.S/E3.S (SFF-TA-1002) Adapter is a high-density storage expansion card designed for next-generation enterprise storage systems and data centers. This advanced adapter converts a single PCIe 5.0 x16 slot into four independent E1.S or E3.S drive interfaces, supporting the latest SFF-TA-1002 standards. Engineered for maximum storage density and performance, this solution enables the deployment of high-capacity, high-speed storage devices in a compact form factor while delivering full PCIe 5.0 bandwidth. Ideal for hyperscale computing, cloud infrastructure, and enterprise storage applications requiring scalable NVMe storage solutions.

Features

• Quad E1.S/E3.S Interfaces: Four independent SFF-TA-1002 ports supporting both E1.S and E3.S form factors
• PCIe 5.0 x16 Bandwidth: Full x16 lane utilization at 32 GT/s data rates
• High-Density Design: Maximizes storage capacity in limited space
• Hot-Plug Capable: Supports safe drive insertion and removal during operation
• Advanced Thermal Management: Optimized airflow design with individual drive cooling
• Enterprise Reliability: Designed for 24/7 operation in data center environments
• Flexible Configuration: Supports mixed E1.S and E3.S drive populations

Specifications

• Product Model: PCIe 5.0 x16 to 4-port E1.S/E3.S Adapter
• Host Interface: PCIe 5.0 x16
• Target Interfaces: 4x E1.S/E3.S SFF-TA-1002
• Supported Form Factors: E1.S (5.9mm, 7.5mm, 15mm), E3.S (7.5mm, 16.8mm, 25mm)
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 2 TB/s total theoretical bandwidth)
• Lane Configuration: x4 per E1.S/E3.S port
• Supported Protocols: NVMe 2.0, PCI Express 5.0
• Hot-Plug Support: Individual port hot-plug capability
• Operating Temperature: 0°C to +70°C
• Power Delivery: 75W through PCIe slot with additional power connector support
• Form Factor: Full-height, full-length PCIe card

Applications

• Hyperscale Data Centers: High-density storage expansion for cloud infrastructure
• Enterprise Storage Arrays: Scalable NVMe storage in enterprise environments
• AI/ML Workloads: High-performance storage for artificial intelligence and machine learning
• Big Data Analytics: Massive data processing and analysis applications
• Video Streaming: Content delivery networks and streaming platforms
• Database Servers: High-performance database applications
• Research Computing: Scientific computing and research applications
• OEM Storage Solutions: Custom storage products for system integrators
