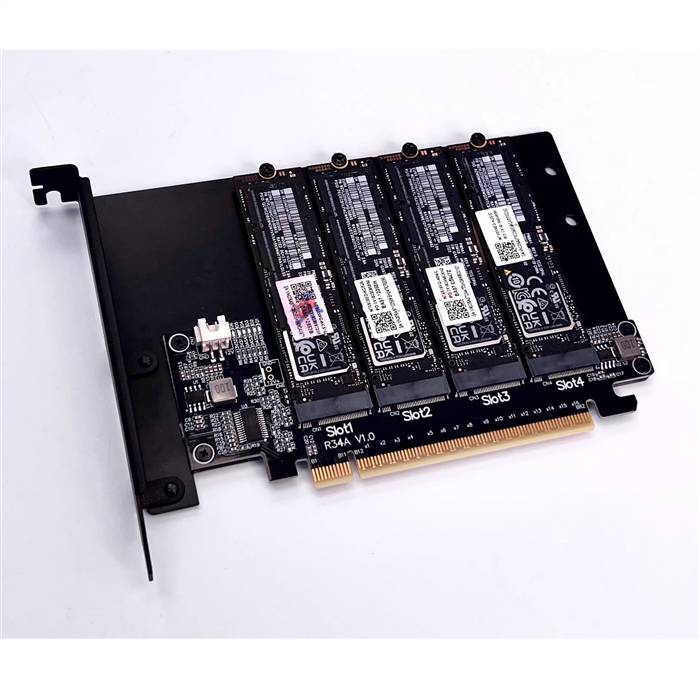

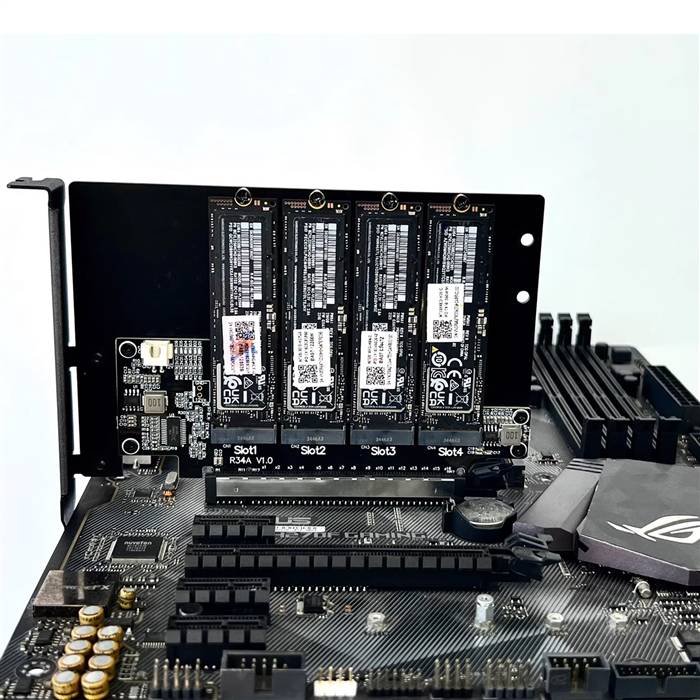

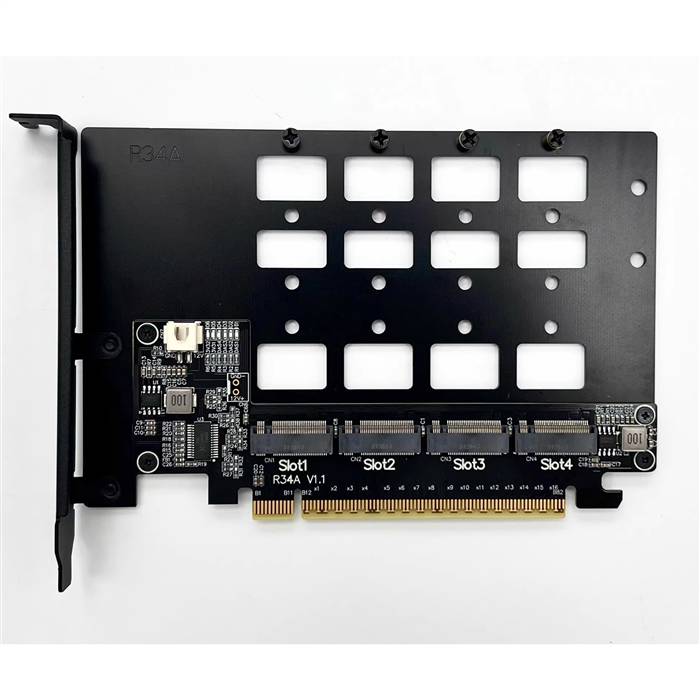

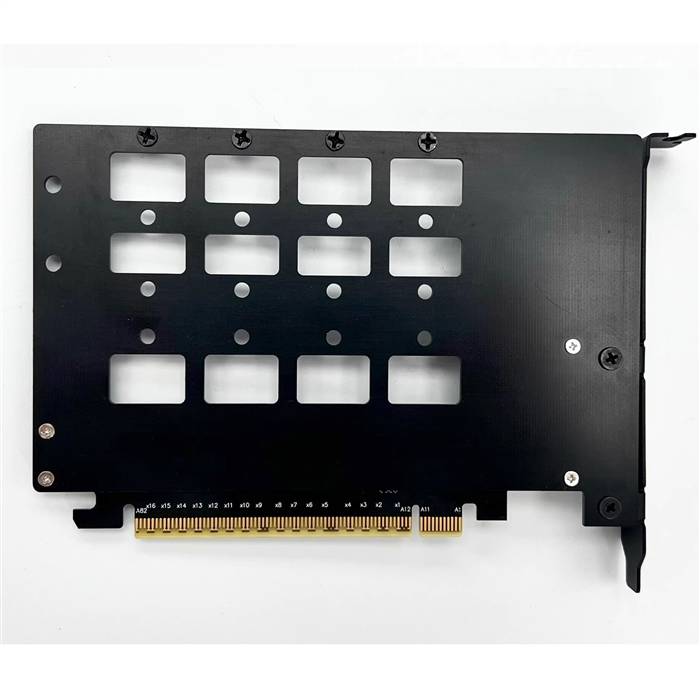

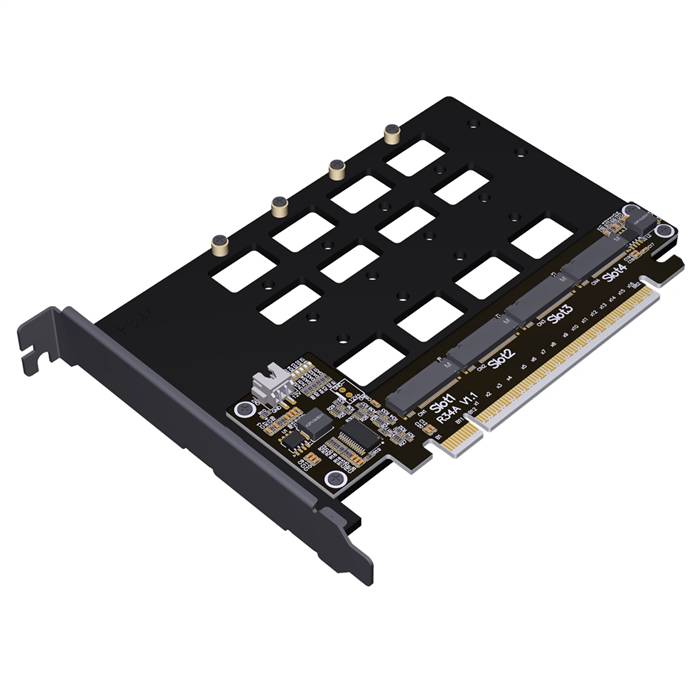

PCIe 5.0 x16 to Quad M.2 NVMe SSD Adapter

The PCIe 5.0 x16 to Quad M.2 NVMe SSD Adapter is a high-performance storage expansion card designed to maximize storage density and performance in modern computing systems. This advanced adapter converts a single PCIe 5.0 x16 slot into four independent M.2 NVMe SSD interfaces, enabling users to create high-speed RAID arrays or expand storage capacity with multiple NVMe drives. Engineered for both enterprise and enthusiast applications, this solution delivers exceptional bandwidth utilization while providing robust thermal management for sustained performance under heavy workloads. Ideal for content creators, data analysts, and enterprise users requiring maximum storage performance and capacity.

Features

• Quad M.2 NVMe Support: Four independent M.2 slots supporting 22110, 2280, 2260, and 2242 form factors
• PCIe 5.0 x16 Bandwidth: Full x16 lane utilization at 32 GT/s data rates
• Advanced Thermal Management: Individual heatsinks for each M.2 slot with thermal pads
• RAID Capability: Supports hardware and software RAID configurations
• High-Speed Design: Optimized for PCIe 5.0 signal integrity
• Tool-Free Installation: Easy SSD mounting with included quality screws
• LED Status Indicators: Individual activity LEDs for each drive bay

Specifications

• Product Model: PCIe 5.0 x16 to Quad M.2 NVMe SSD Adapter
• Host Interface: PCIe 5.0 x16
• Target Interfaces: 4x M.2 M-key (PCIe NVMe)
• Supported Form Factors: 22110, 2280, 2260, 2242
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 2 TB/s total theoretical bandwidth)
• Lane Configuration: x4 per M.2 slot
• Supported Protocols: NVMe 2.0, PCI Express 5.0
• Heatsink Material: Aluminum with copper heat pipes
• Board Material: 6-layer PCB with impedance control
• Operating Temperature: 0°C to +70°C
• Power Delivery: 75W through PCIe slot

Applications

• High-Performance Workstations: Maximum storage performance for content creation and engineering
• Data Analytics: Fast data processing and analysis with multiple high-speed drives
• Video Editing: 8K video editing and processing with rapid asset access
• Gaming Rigs: Ultra-fast game loading and asset streaming
• Server Applications: High-density NVMe storage in enterprise environments
• RAID Arrays: Creating high-performance RAID 0, 1, 5, or 10 configurations
• Data Centers: Storage expansion in server and computing clusters
• Research Computing: Scientific computing and simulation workloads requiring extreme I/O performance
