PCIe 5.0 x8 Male to x16 Female Heightened Test Protection Card

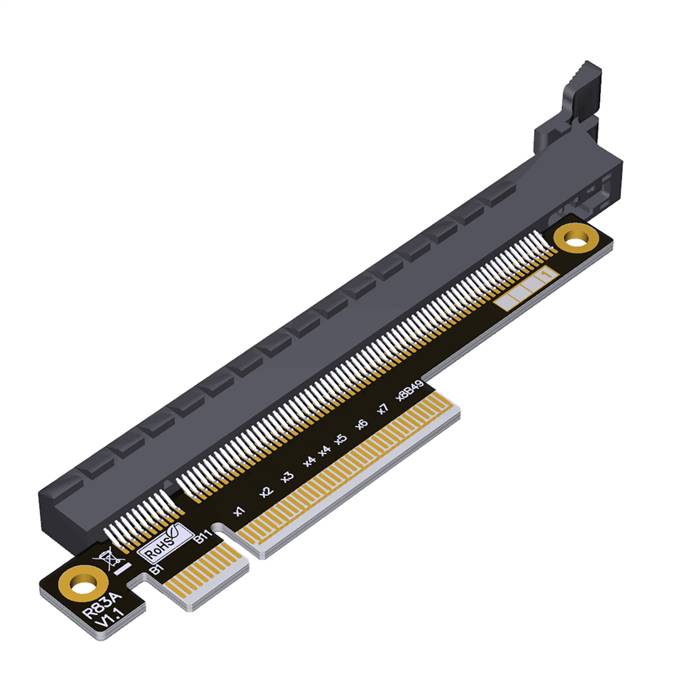

The PCIe 5.0 x8 Male to x16 Female Heightened Test Protection Card is a specialized engineering and validation tool designed for testing next-generation PCIe 5.0 systems with mixed lane configurations. This advanced adapter provides a controlled interface conversion from PCIe 5.0 x8 to x16 while incorporating comprehensive protection circuitry to prevent damage to valuable hardware during testing procedures. The card enables the connection of x16 devices to x8 slots while maintaining full PCIe 5.0 performance and signal integrity. Featuring advanced safety mechanisms, this solution safeguards both host systems and connected devices, making it essential for validating PCIe 5.0 compatibility, performance, and reliability in development and quality assurance environments. The integrated test points and monitoring capabilities provide detailed insight into signal behavior and power delivery characteristics.

Features

• PCIe 5.0 x8 to x16 Interface Conversion: Enables x16 device testing in x8 slots
• Controlled Height Extension: Precisely engineered spacing for testing access and measurement
• Advanced Test Protection: Integrated protection against shorts, overcurrent, overvoltage, and ESD events
• Signal Integrity Monitoring: Multiple high-frequency test points for signal quality verification
• Hot-Plug Simulation: Safe testing of hot-plug scenarios and power sequencing
• Real-time Monitoring: Comprehensive voltage and current monitoring for all power rails
• Lane Configuration Management: Intelligent lane mapping between x8 host and x16 device

Specifications

• Product Model: PCIe 5.0 x8 Male to x16 Female Heightened Test Protection Card
• Host Interface: PCIe 5.0 x8 Male
• Target Interface: PCIe 5.0 x16 Female
• Height Increase: 25mm standard extension
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 256 Gbps total bandwidth from x8 host)
• Supported Protocols: PCI Express 5.0
• Lane Configuration: x8 host to x16 device interface (lower 8 lanes active)
• Protection Features: Overcurrent protection, overvoltage protection, short circuit protection, ESD protection
• Test Points: Comprehensive signal test points for active PCIe lanes, power rails, and sideband signals
• Operating Temperature: 0°C to +70°C
• Power Delivery: 75W slot power with advanced monitoring and current limiting
• Construction: Military-grade PCB with reinforced connectors and enhanced shielding

Applications

• Engineering Validation: Signal integrity testing and validation of PCIe 5.0 systems with mixed lane configurations
• Manufacturing Testing: Production line testing of PCIe 5.0 devices in various slot configurations
• Compatibility Testing: Verification of x16 devices functionality in x8 slots
• Quality Assurance: Quality control procedures for PCIe 5.0 products and host systems
• R&D Laboratories: Research and development of PCIe 5.0 lane negotiation and compatibility
• Failure Analysis: Diagnostic testing and troubleshooting of PCIe 5.0 lane configuration issues
• System Integration Testing: Verification of system behavior with mixed PCIe 5.0 lane configurations
• Prototype Development: Support for prototype testing of devices in various PCIe slot configurations
• System Integration Testing: Verification of system compatibility and performance with various PCIe 5.0 devices
• Prototype Development: Support for prototype and pre-production system development and testing of next-generation hardware
