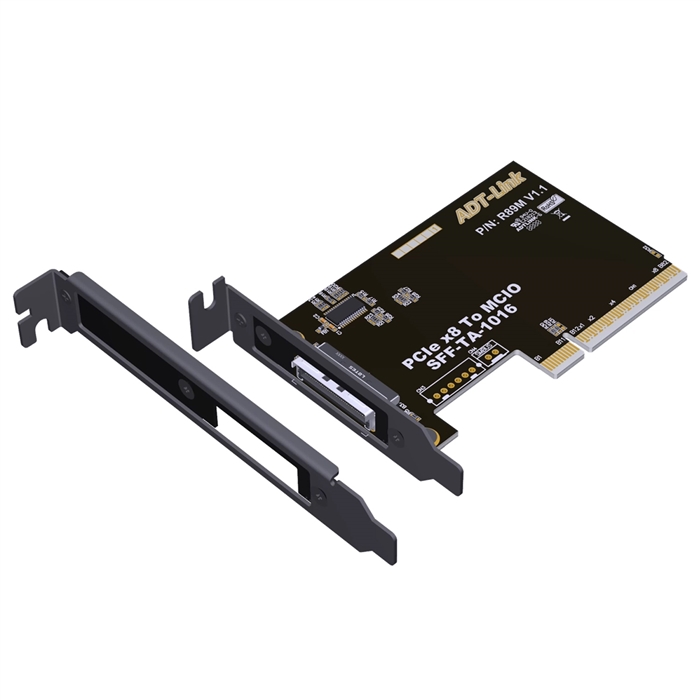

PCIe 4.0 x8 to SFF-TA-1016 MCIO 8X Female Adapter Card

The PCIe 4.0 x8 to SFF-TA-1016 MCIO 8X Female Adapter Card is a high-performance interface conversion solution designed for modern data center servers, high-performance computing systems, and enterprise storage environments. This adapter card provides a seamless bridge between a standard PCIe 4.0 x8 host slot and the high-density SFF-TA-1016 MCIO (Mini Cool Edge IO) interface, enabling flexible connectivity to MCIO-based storage devices and peripherals. Engineered to deliver full PCIe 4.0 performance while supporting the advanced features of the MCIO ecosystem, this card is ideal for system integrators and IT professionals implementing next-generation storage architectures.

Features

• High-Speed Interface Conversion: Bridges PCIe 4.0 x8 host interface to SFF-TA-1016 MCIO 8X female connector for flexible system configuration
• Full PCIe 4.0 Performance: Supports data rates up to 16 GT/s per lane, delivering maximum bandwidth for demanding storage applications
• MCIO 8X Compatibility: Implements the SFF-TA-1016 standard MCIO interface with 8X lane configuration for high-speed data transmission
• Enhanced Signal Integrity: Precision PCB design with optimized impedance matching (85?) ensures reliable signal quality at high speeds
• Robust Construction: High-quality components and professional PCB layout ensure stable operation in demanding environments
• Standard PCIe Form Factor: Compatible with standard PCIe slot mechanical specifications for easy integration
• Flexible Deployment: Enables connection between traditional PCIe systems and modern MCIO-based storage solutions

Specifications

• Host Interface: PCI Express 4.0 x8 Slot
• Target Interface: SFF-TA-1016 MCIO 8X Female
• Supported Standards: PCI-SIG PCIe 4.0 Base Specification, SFF-TA-1016
• Data Rate: Up to 16.0 GT/s per lane (PCIe 4.0)
• Total Bandwidth: 128 Gbps (x8 lanes)
• Impedance: 85? (differential)
• Connector Positions: 74-pin MCIO 8X interface
• Form Factor: Standard PCIe Card
• Operating Temperature: 0°C to +70°C
• Storage Temperature: -40°C to +85°C

Applications

• Data Center Infrastructure: Ideal for hyperscale environments implementing MCIO-based storage solutions
• Server Storage Expansion: Enables connection of MCIO-based NVMe storage devices to standard PCIe servers
• High-Performance Computing: Supports demanding computational workloads requiring high-speed storage connectivity
• Storage Array Configuration: Facilitates integration of MCIO-based backplanes and storage enclosures
• Test and Development Environments: Essential for validating MCIO devices and systems in laboratory settings
• System Integration Projects: Perfect for IT professionals building customized storage solutions with MCIO technology
• Enterprise Storage Upgrades: Enables legacy systems to leverage modern MCIO-based storage devices
• Cloud Infrastructure: Supports scalable storage architectures in cloud computing environments
