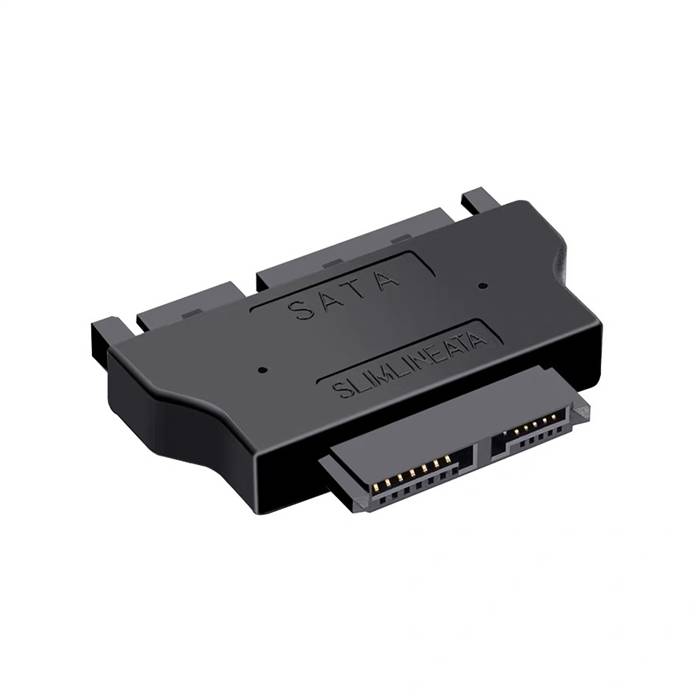

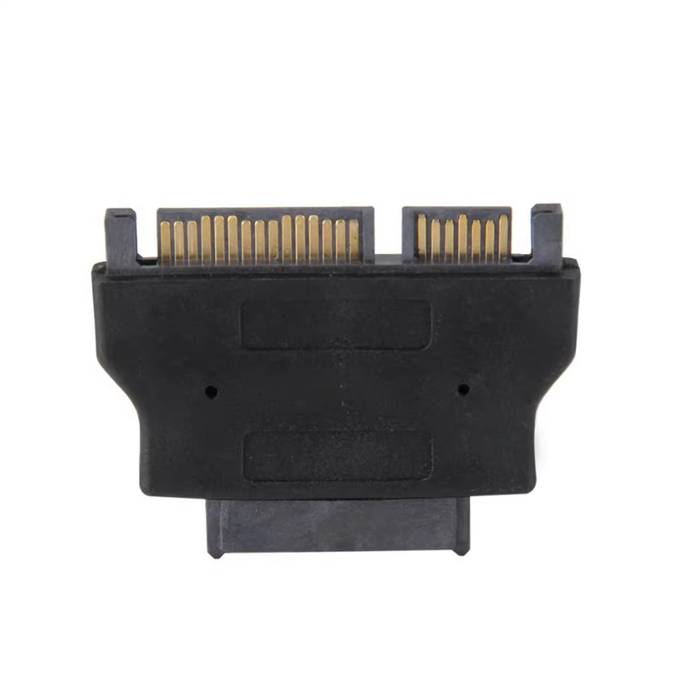

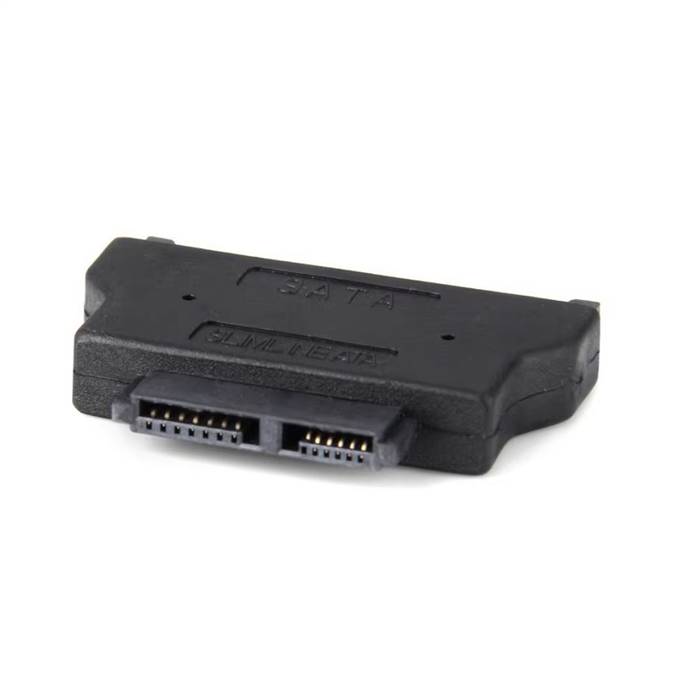

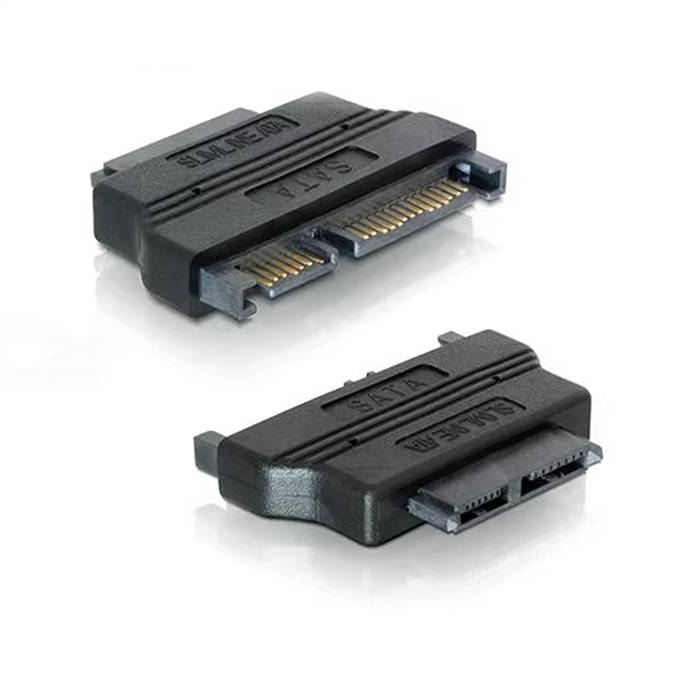

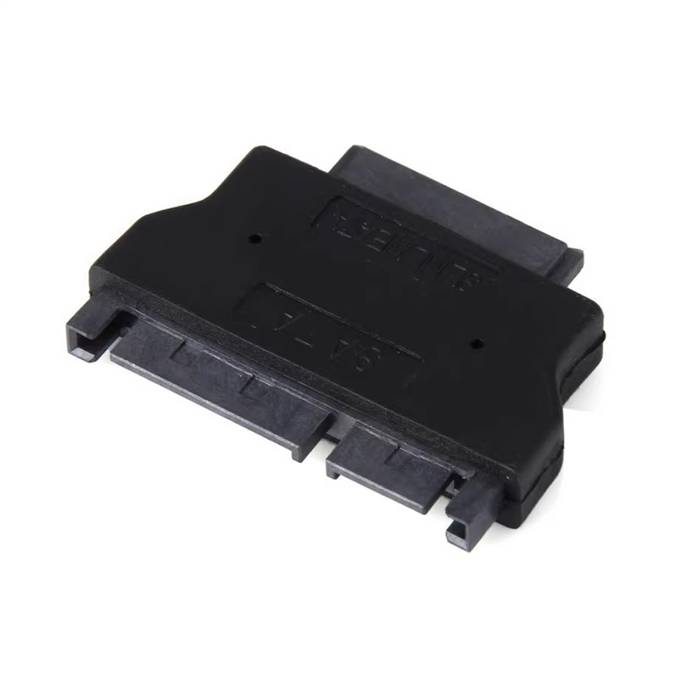

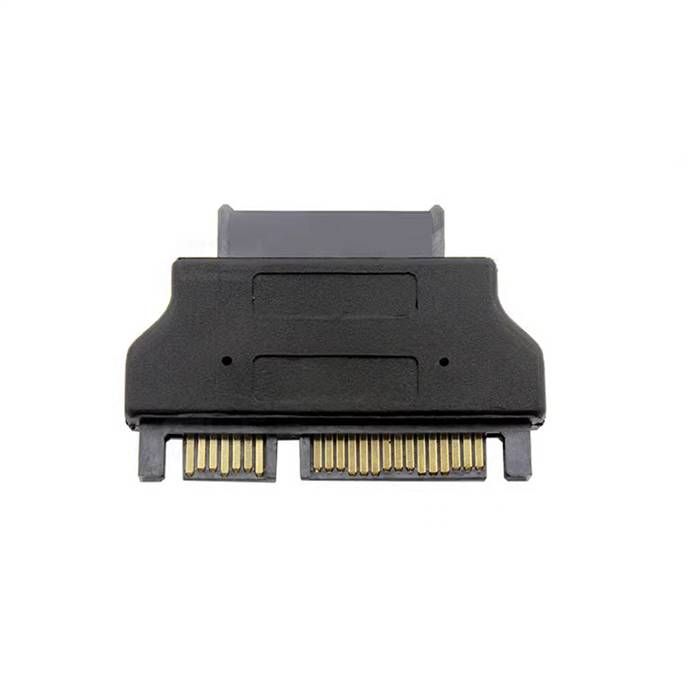

Slimline SATA 13P Female to SATA 22P (7+15) Male Adapter

The Slimline SATA 13P Female to SATA 22P (7+15) Male Adapter is a precision interface conversion solution designed to bridge the connectivity gap between slimline SATA devices and standard SATA host interfaces. This compact adapter converts a 13-pin slimline SATA female port into a standard 22-pin SATA male interface, enabling seamless compatibility between slim optical drives, slim storage devices, and conventional SATA controllers. Engineered with precision signal integrity preservation, this adapter provides reliable data transfer and power delivery while maintaining the form factor advantages of slimline connections, making it ideal for space-constrained computing environments, upgrade projects, and compatibility solutions.

Features

• Interface Conversion: Converts slimline SATA 13-pin female to standard SATA 22-pin (7+15) male interface
• Complete Signal Support: Maintains both data and power transmission capabilities
• Space-Optimized Design: Compact form factor ideal for tight spaces in slim systems
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Enhanced Compatibility: Enables use of slimline devices with standard SATA interfaces
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

• Host Connector: Slimline SATA 13-pin Female
• Device Connector: Standard SATA 22-pin (7+15) Male
• Pin Configuration: 7-pin data + 15-pin power (standard SATA); 7-pin data + 6-pin power (slimline SATA)
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Delivery: Supports power requirements for slimline devices
• Operating Temperature: 0°C to +70°C
• Durability Rating: 2,500+ mating cycles
• Construction: High-quality materials with protective shielding

Applications

• Optical Drive Integration: Connecting slim optical drives to standard SATA motherboards
• Slim System Upgrades: Adding storage options to slim form factor PCs and all-in-one systems
• Laptop Modification: Enabling use of slimline devices in standard SATA environments
• Test Benches: Temporary connectivity for testing and diagnostics of slimline devices
• Space-Constrained Installations: Ideal for compact server racks and HTPC configurations
• Repair and Maintenance: Facilitating drive replacements and compatibility solutions
• Field Service: Technical support applications requiring interface adaptation
• Educational Environments: Teaching storage technology and interface compatibility concepts

Compatibility Notes

This adapter is specifically designed for connecting slimline SATA devices (typically found in laptops and compact systems) to standard SATA interfaces. Ensure proper power requirements match between the slimline device and the host system. The adapter maintains original signal quality but does not convert between different SATA generations. Verify device compatibility before installation, particularly regarding power requirements for specific drives.
