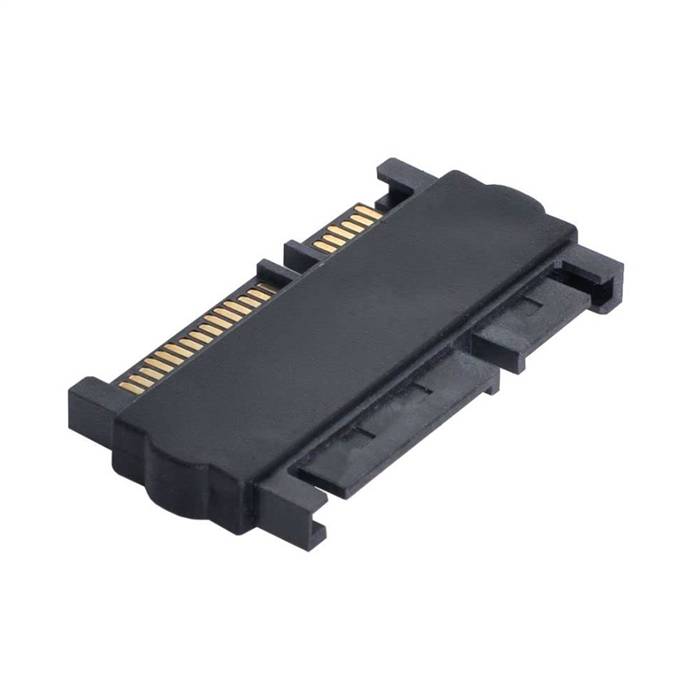

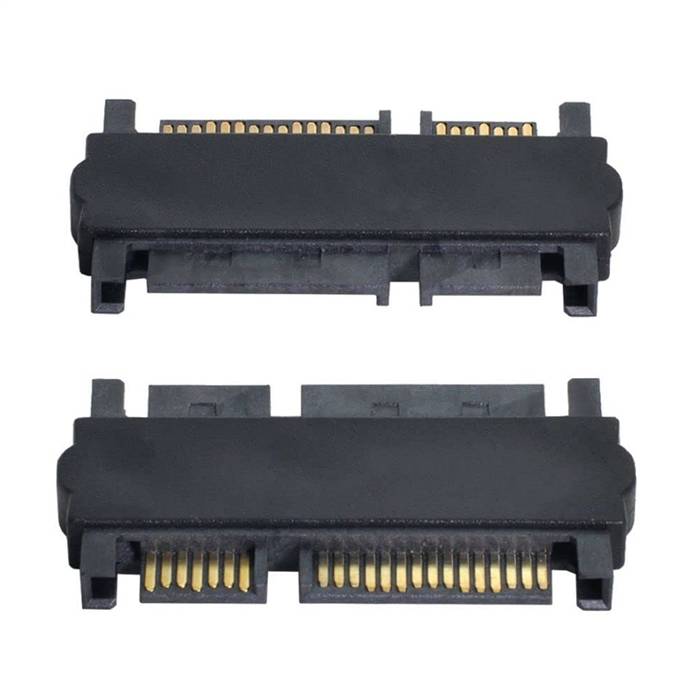

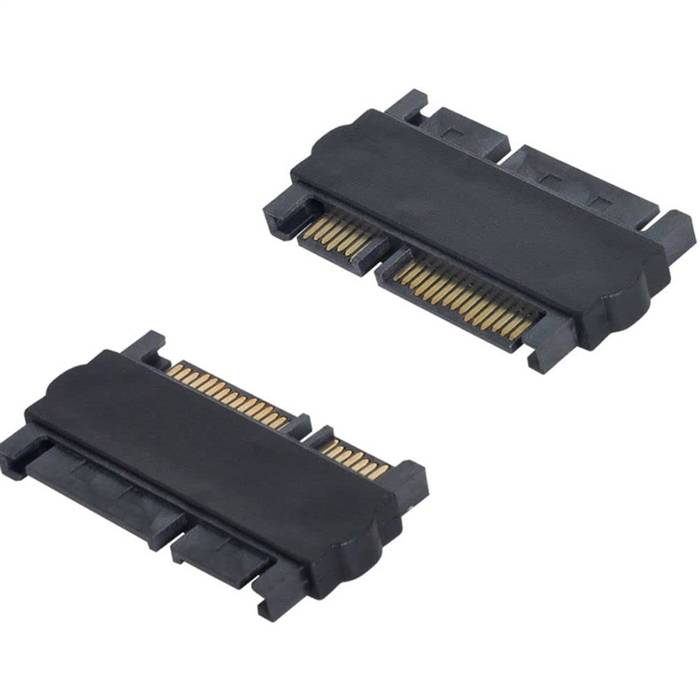

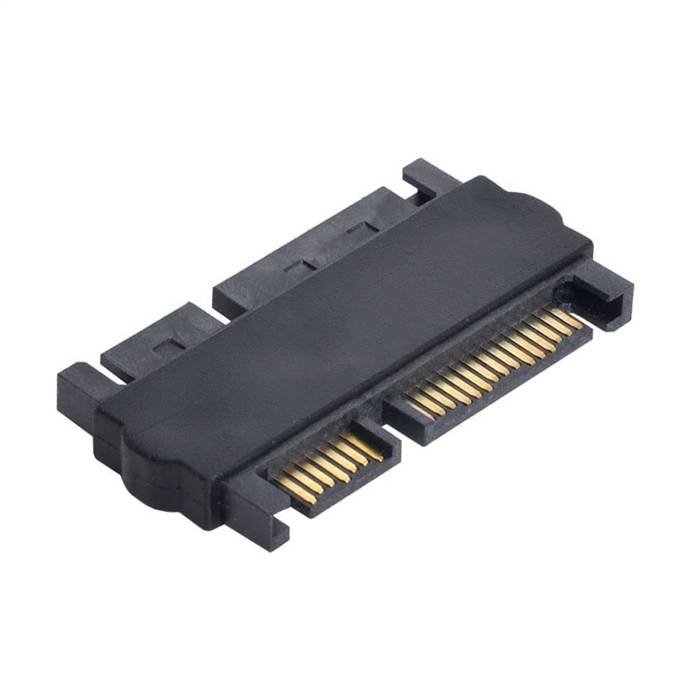

SATA 22P (7+15) Male to SATA 22P (7+15) Male Adapter

The SATA 22P (7+15) Male to SATA 22P (7+15) Male Adapter is a precision-engineered interface solution designed to extend or connect standard SATA interfaces in storage configurations. This adapter features identical male connectors on both ends, maintaining signal integrity while providing reliable connectivity between SATA devices and controllers. Engineered with precision signal preservation, this adapter ensures stable data transfer and power delivery without compromising performance, making it ideal for various storage applications, testing environments, and system integration projects.

Features

• Dual Male Interface: Features SATA 22-pin (7+15) male connectors on both ends
• Complete Signal Support: Maintains both data and power transmission capabilities
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Enhanced Compatibility: Enables connection between standard SATA devices and controllers
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation
• Gold-Plated Contacts: Enhanced conductivity and corrosion resistance for improved signal integrity

Specifications

• Host Connector: SATA 22-pin (7+15) Male
• Device Connector: SATA 22-pin (7+15) Male
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Delivery: Supports standard SATA power specifications
• Operating Temperature: 0°C to +70°C
• Durability Rating: 2,500+ mating cycles
• Construction: High-quality materials with protective shielding
• Contact Plating: Gold-plated contacts for optimal conductivity
• Impedance Matching: Optimized for signal integrity preservation

Applications

• Storage Expansion: Connecting multiple SATA devices in expanded storage configurations
• Test Benches: Temporary connectivity for testing and diagnostics of SATA devices
• System Integration: Enabling flexible drive connections in complex storage systems
• Data Recovery: Facilitating drive connections for data retrieval operations
• Server Environments: Adding connectivity options in server rack configurations
• Backup Solutions: Creating flexible backup systems with multiple drive connections
• Technical Support: Field service applications requiring interface extension
• Educational Labs: Teaching storage technology and interface compatibility concepts
