SATA 22P (7+15) Male to UP Right Angle SATA 22P (7+15) Female Adapter

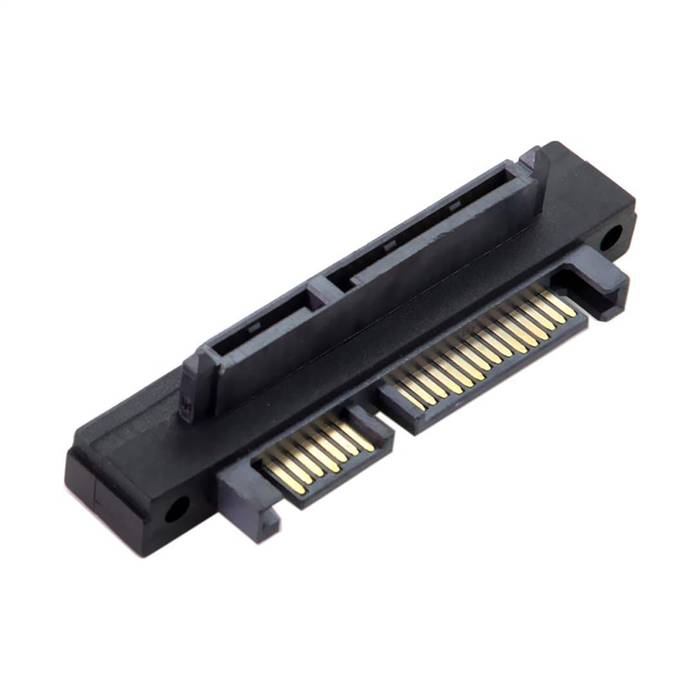

The SATA 22P (7+15) Male to UP Right Angle SATA 22P (7+15) Female Adapter is a precision-engineered interface solution designed to provide upward-oriented right-angle connectivity between standard SATA devices and host controllers. This adapter features a standard SATA 22-pin male connector on one end and an upward right-angle SATA 22-pin female connector on the other, offering both data transfer and power delivery capabilities while optimizing space utilization in compact systems. Engineered with precision signal preservation, this adapter ensures reliable performance with minimal signal degradation, making it ideal for space-constrained environments where upward cable routing and clearance are critical considerations.

Features

• Right-Angle Design: Upward right-angle female connector enables efficient cable routing in tight spaces
• Complete Signal Support: Maintains both data and power transmission capabilities without compromise
• High-Speed Performance: Supports SATA 3.0 specifications with up to 6 Gbps data transfer rates
• Secure Connection: Precision-engineered connectors ensure reliable mating and stable operation
• Space Optimization: Right-angle design minimizes profile for improved clearance in compact systems
• Enhanced Compatibility: Enables flexible connectivity between standard SATA devices and controllers
• Durable Construction: Quality materials ensure long-term reliability and repeated use
• Plug-and-Play Operation: Requires no additional drivers or software for installation

Specifications

• Host Connector: SATA 22-pin (7+15) Male
• Device Connector: SATA 22-pin (7+15) Female (Up Right-Angle)
• Data Rate Support: Up to 6 Gbps (SATA 3.0 compatible)
• Supported Protocols: SATA 3.0, SATA 2.0
• Power Delivery: Supports standard SATA power specifications (1.5A Max per pin)
• Operating Temperature: -55°C to +125°C
• Durability Rating: 2,500+ mating cycles
• Contact Resistance: ?30m?
• Insulation Resistance: >50M?
• Dielectric Withstanding Voltage: 500V AC
• Contact Plating: Gold-plated contacts (1?"~15?" thickness)
• Housing Material: LCP GF UL94V-0

Applications

• Compact System Integration: Space-constrained environments requiring upward right-angle connections
• Server Rack Configurations: High-density storage installations with limited vertical clearance
• Desktop Computers: Clean cable management and improved airflow in desktop cases
• Test Benches: Temporary connectivity solutions for testing and diagnostics
• Storage Arrays: Flexible drive connections in multi-drive configurations
• Data Recovery: Facilitating drive connections for data retrieval operations
• Embedded Systems: Industrial and commercial applications with space limitations
• Home Theater PCs: Aesthetic cable management in media center environments
