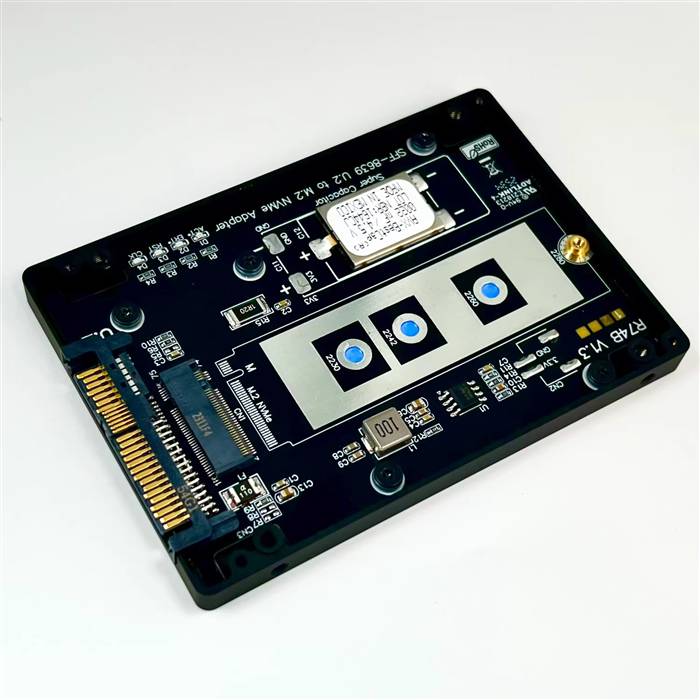

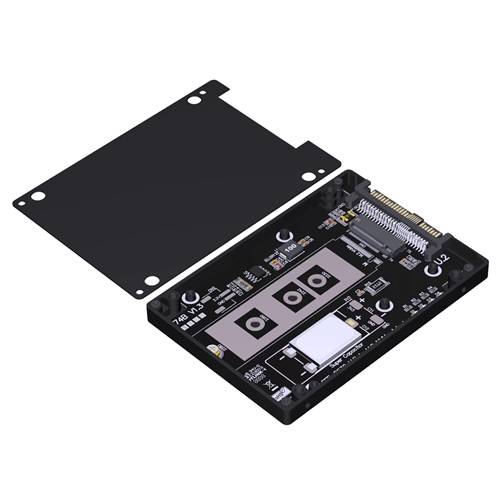

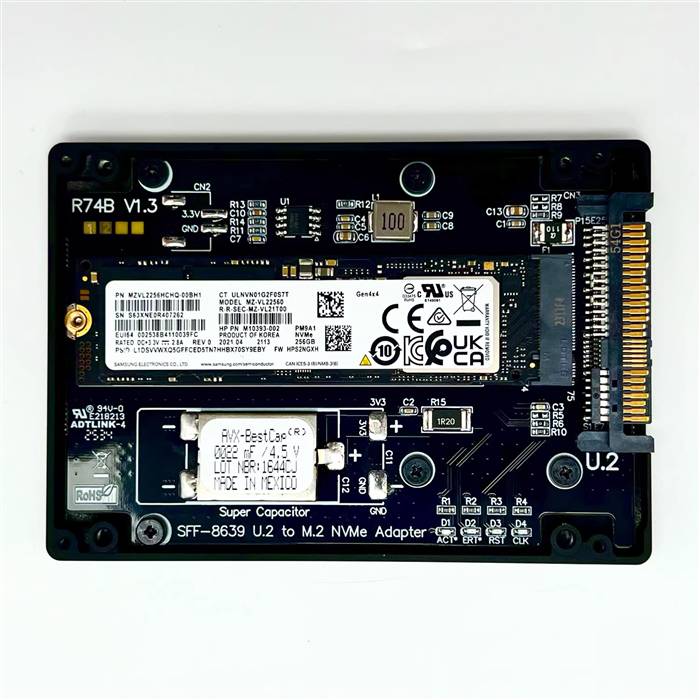

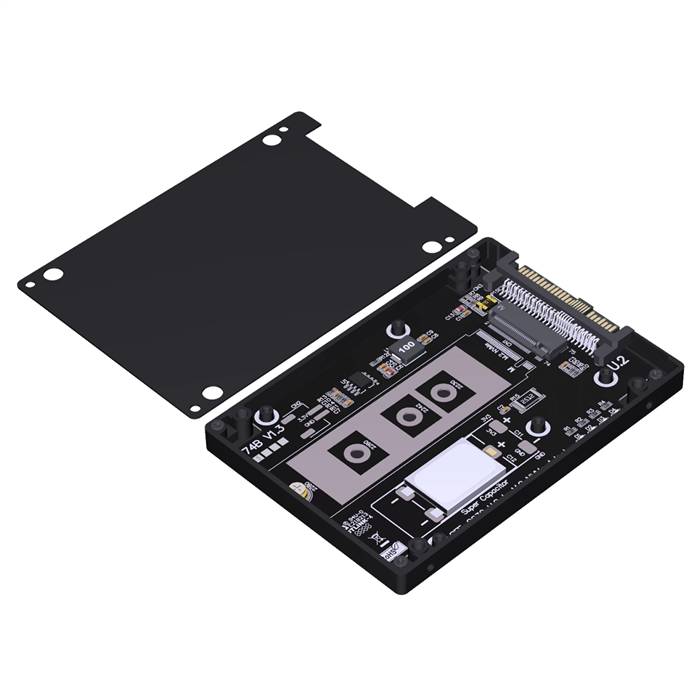

PCIe 5.0 U.2 SFF 8639 Male to M.2 M-key NVMe SSD Adapter with AVX 0.022F Supercapacitor

The PCIe 5.0 U.2 SFF-8639 Male to M.2 M-key NVMe SSD Adapter with AVX 0.022F Supercapacitor is an enterprise-grade storage interface converter engineered for high-reliability, high-performance applications. This advanced adapter enables the integration of standard M.2 NVMe SSDs into U.2 enterprise storage systems while providing robust data protection through an integrated AVX 0.022F supercapacitor-based power loss protection system. The supercapacitor ensures that during unexpected power failures, all data in transit is safely committed to non-volatile memory, preventing data corruption and maintaining absolute data integrity. Supporting the latest PCIe 5.0 specifications, this solution delivers maximum bandwidth while maintaining enterprise-level data protection, making it ideal for mission-critical data centers, servers, and storage systems where both performance and reliability are non-negotiable.

Features

• U.2 SFF-8639 Enterprise Interface: Enterprise-grade storage interface supporting NVMe over PCIe 5.0
• M.2 M-key NVMe Compatibility: Supports standard M.2 2280, 22110 NVMe SSDs
• Advanced Power Loss Protection: Integrated AVX 0.022F supercapacitor for data safety during power interruptions
• PCIe 5.0 Performance: Delivers full x4 lane bandwidth at 32 GT/s data rates
• Enterprise Reliability: Engineered for 24/7 operation in demanding server environments
• Intelligent Power Management: Comprehensive power monitoring and protection circuitry
• Hot-Plug Capable: Supports safe drive installation and removal in operational systems
• Data Integrity Assurance: Guarantees complete data commit during unexpected power events

Specifications

• Product Model: PCIe 5.0 U.2 SFF-8639 Male to M.2 M-key NVMe SSD Adapter with AVX 0.022F Supercapacitor
• Host Interface: U.2 SFF-8639 Male
• Target Interface: M.2 M-key (PCIe NVMe)
• Supported Form Factors: 2280, 22110
• Data Transfer Rate: Up to 32 GT/s per lane (approximately 128 Gbps total bandwidth)
• Supercapacitor: AVX 0.022F with advanced charging and monitoring circuit
• Supported Protocols: NVMe 2.0, PCI Express 5.0
• Power Protection: Complete power loss protection with data commit capability
• Operating Temperature: 0°C to +70°C
• Backup Hold-up Time: Sufficient for flushing controller DRAM and completing all in-flight writes
• Board Material: Enterprise-grade 8-layer PCB with impedance control
• Component Quality: Industrial-grade components for maximum reliability

Applications

• Enterprise Storage Infrastructure: Integrating M.2 NVMe SSDs into U.2 storage arrays and servers
• Mission-Critical Data Centers: Systems requiring guaranteed data integrity during power events
• Cloud Computing Infrastructure: Storage expansion in cloud and hyperscale computing environments
• Database Servers: High-performance database applications demanding absolute data protection
• Financial Systems: Trading platforms and transaction systems where data integrity is paramount
• High-Performance Computing: Scientific computing and research applications requiring both speed and reliability
• Server Virtualization: Virtualization hosts requiring reliable protected storage
• OEM Storage Solutions: Custom storage products for enterprise clients requiring advanced power loss protection
