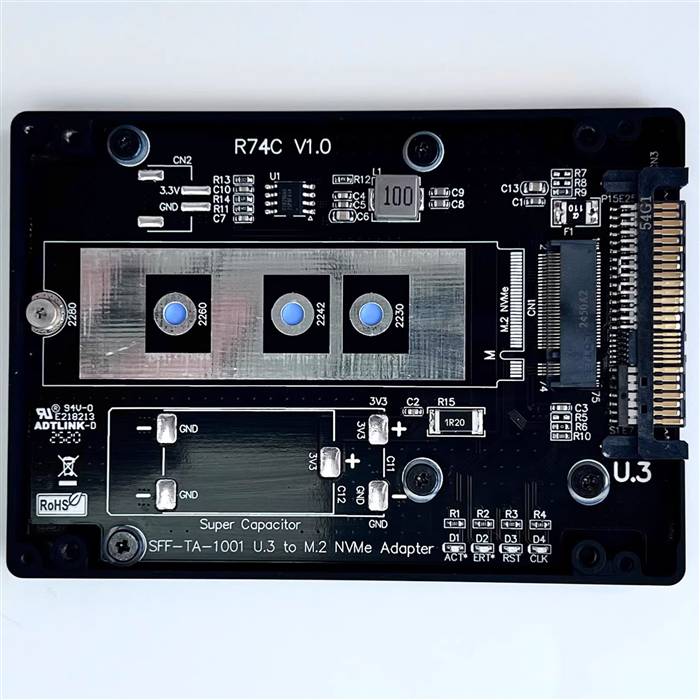

PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with Enclosure

The PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with Enclosure is an enterprise-grade storage interface converter designed for integrating standard M.2 NVMe SSDs into U.3 enterprise storage systems. This complete enclosure solution provides a robust and protected environment for high-performance SSDs, enabling their use in servers, workstations, and storage arrays that feature U.3 (SFF-TA-1001) backplanes. By combining interface conversion with physical protection and thermal management, this adapter delivers a reliable method for utilizing cost-effective M.2 form factor SSDs in professional storage infrastructure while maintaining full PCIe 4.0 performance and enterprise features.

Features

• U.3 SFF-TA-1001 Enterprise Interface: Supports NVMe over PCIe 4.0 protocol for enterprise storage systems

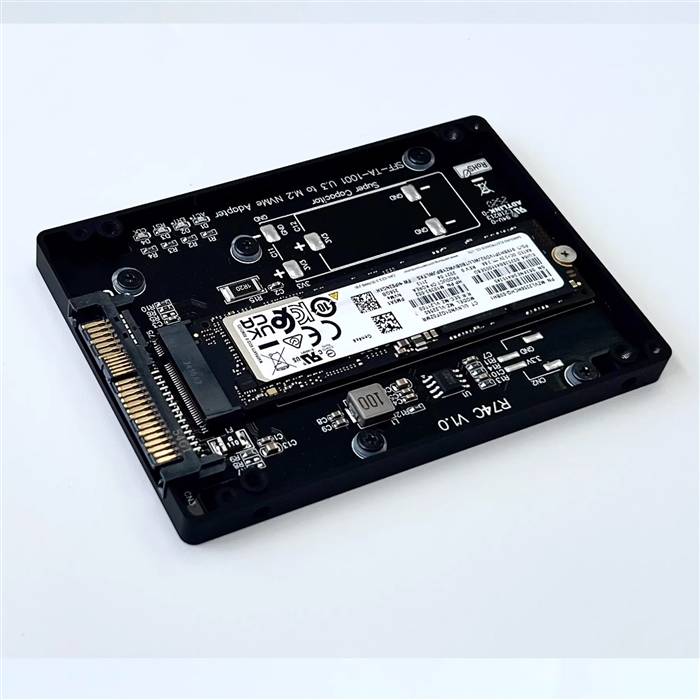

• M.2 M-key NVMe Compatibility: Works with standard M.2 NVMe SSDs in 2280 and 22110 form factors

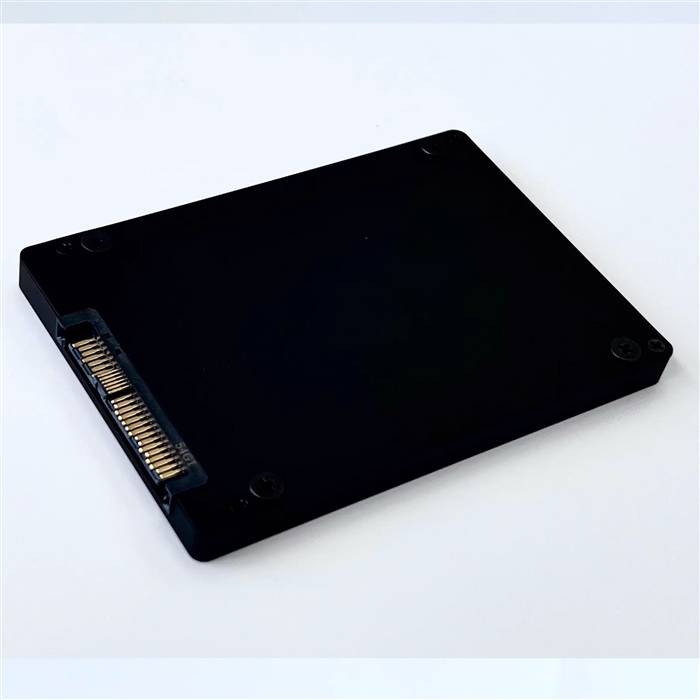

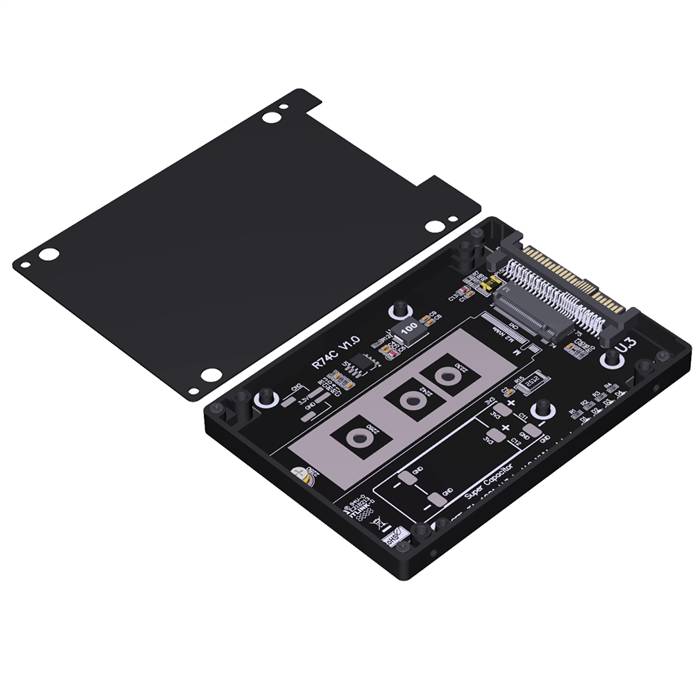

• Protected Enclosure Design: Provides physical protection and thermal management for M.2 SSDs
• PCIe 4.0 Performance: Delivers full x4 lane bandwidth at 16 GT/s data rates
• Enterprise Reliability: Engineered for 24/7 operation in demanding server environments
• Hot-Plug Capable: Supports safe drive installation and removal in operational systems
• Enhanced Thermal Management: Enclosure design with heatsinking capabilities maintains optimal SSD temperatures

Specifications

• Product Model: PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with Enclosure
• Host Interface: U.3 SFF-TA-1001
• Target Interface: M.2 M-key (PCIe NVMe)
• Supported Form Factors: 2280, 22110
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 64 Gbps total bandwidth)
• Supported Protocols: NVMe 1.4, PCI Express 4.0
• Enclosure Material: Aluminum alloy with thermal management properties
• Operating Temperature: 0°C to +70°C
• Hot-Plug Support: U.3 compliant hot-plug capability
• Compatibility: Windows, Linux, and other enterprise operating systems

Applications

• Enterprise Storage Systems: Integrating M.2 NVMe SSDs into U.3 storage infrastructure
• Data Center Servers: Adding flexible NVMe storage to rack servers and storage arrays
• Storage Expansion: Cost-effective storage expansion using M.2 SSDs in U.3 systems
• Workstation Storage: High-performance storage for professional workstations with U.3 interfaces
• Test and Development: Storage testing and validation in enterprise environments
• OEM Storage Solutions: Custom storage products for enterprise clients
• Cloud Infrastructure: Storage expansion in cloud and hyperscale computing environments
• Server Upgrade Projects: Modernizing existing server infrastructure with M.2 NVMe technology
