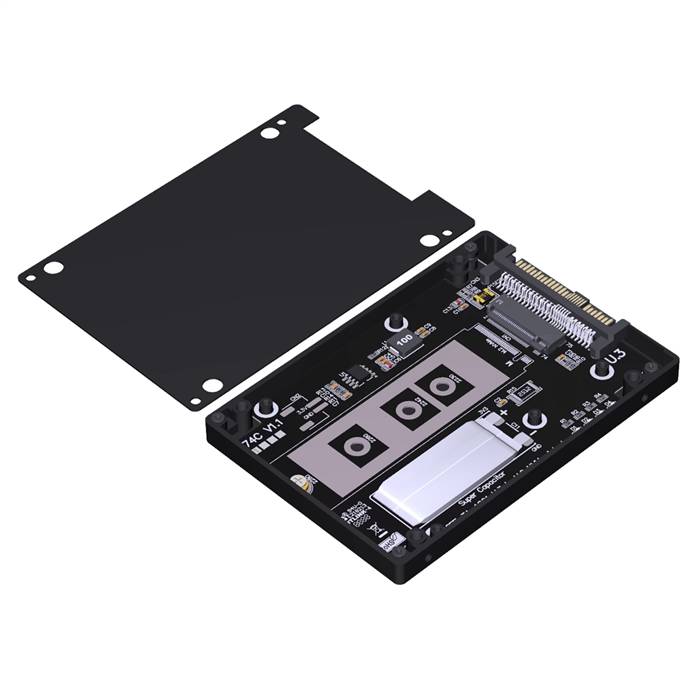

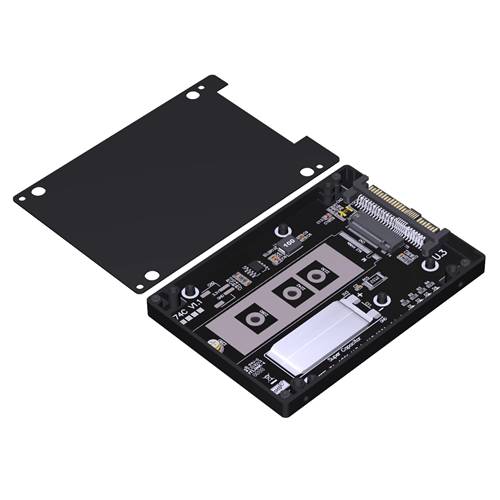

PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with NEC 0.047F Supercapacitor

The PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with NEC 0.047F Supercapacitor is an enterprise-grade storage interface converter designed for high-reliability applications. This advanced adapter enables the use of standard M.2 NVMe SSDs in U.3 enterprise storage systems while providing enhanced data protection through an integrated supercapacitor-based power loss protection system. The NEC 0.047F supercapacitor ensures that in the event of sudden power failure, critical data in transit is safely written to non-volatile memory, preventing data corruption. This solution is ideal for data centers, servers, and mission-critical systems requiring both the flexibility of M.2 form factor and the robust data integrity features of enterprise storage environments.

Features

• U.3 SFF-TA-1001 Interface: Enterprise-grade storage interface supporting NVMe over PCIe 4.0
• M.2 M-key NVMe Compatibility: Supports standard M.2 2280, 22110 NVMe SSDs
• Power Loss Protection: Integrated NEC 0.047F supercapacitor for data safety during power failures
• PCIe 4.0 Performance: Supports full x4 lane bandwidth at 16 GT/s data rates
• Enterprise Reliability: Designed for 24/7 operation in demanding server environments
• Advanced Power Management: Intelligent power monitoring and protection circuitry
• Hot-Plug Capable: Supports safe drive installation and removal in operational systems

Specifications

• Product Model: PCIe 4.0 U.3 SFF-TA-1001 to M.2 M-key NVMe SSD Adapter with NEC 0.047F Supercapacitor
• Host Interface: U.3 SFF-TA-1001
• Target Interface: M.2 M-key (PCIe NVMe)
• Supported Form Factors: 2280, 22110
• Data Transfer Rate: Up to 16 GT/s per lane (approximately 64 Gbps total bandwidth)
• Supercapacitor: NEC 0.047F with advanced charging circuit
• Supported Protocols: NVMe 1.4, PCI Express 4.0
• Power Protection: Full power loss protection with data commit capability
• Operating Temperature: 0°C to +70°C
• Backup Hold-up Time: Sufficient for flushing controller DRAM and completing in-flight writes
• Board Material: Enterprise-grade 8-layer PCB

Applications

• Enterprise Storage Systems: Integrating M.2 NVMe SSDs into U.3 storage infrastructure
• Data Center Servers: Adding flexible NVMe storage to rack servers and storage arrays
• Mission-Critical Applications: Systems requiring guaranteed data integrity during power events
• Cloud Infrastructure: Storage expansion in cloud and hyperscale computing environments
• Database Servers: High-performance database applications demanding data protection
• Virtualization Hosts: Server virtualization platforms requiring reliable storage
• Financial Systems: Trading and transaction systems where data integrity is paramount
• OEM Storage Solutions: Custom storage products for enterprise clients
