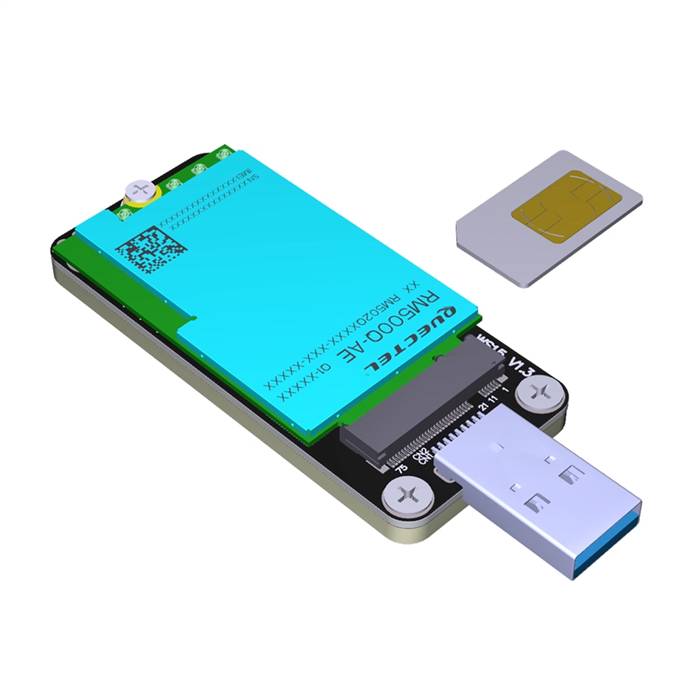

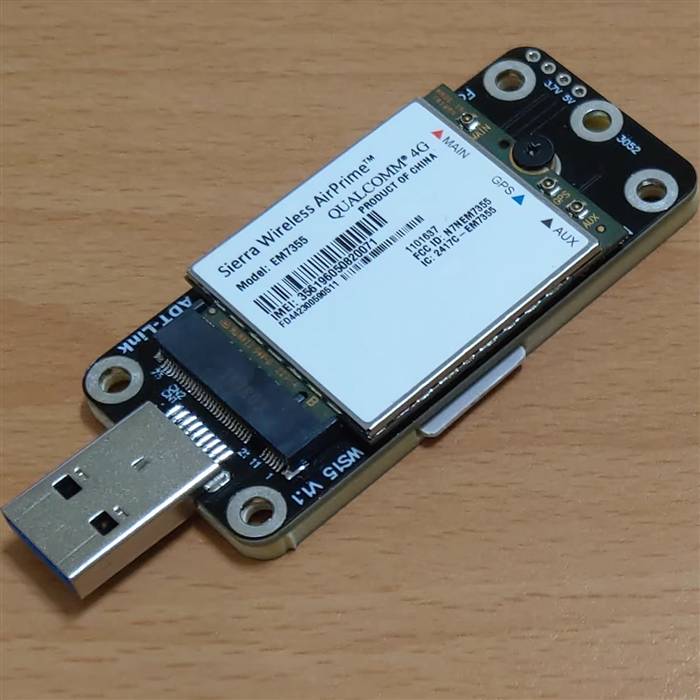

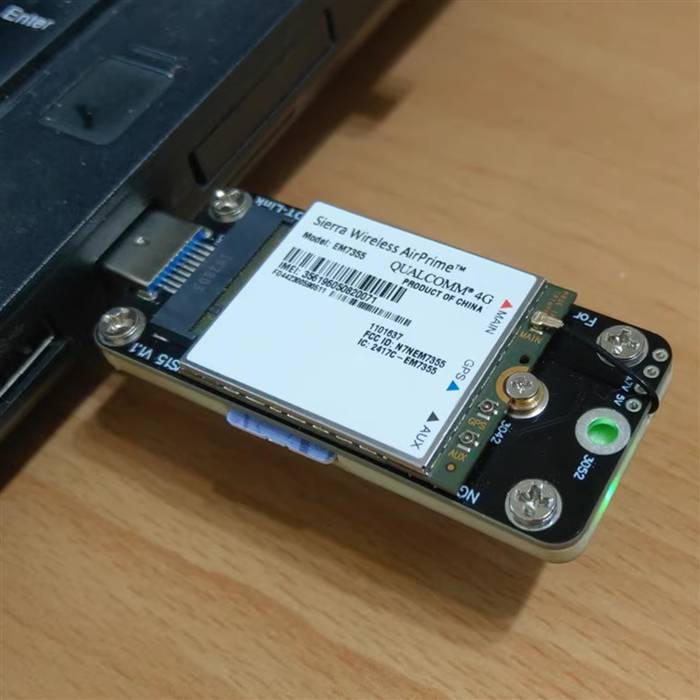

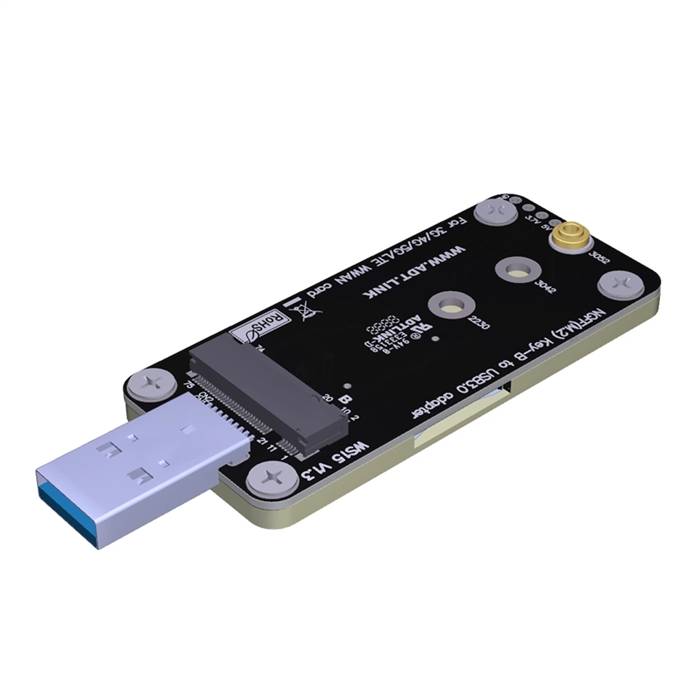

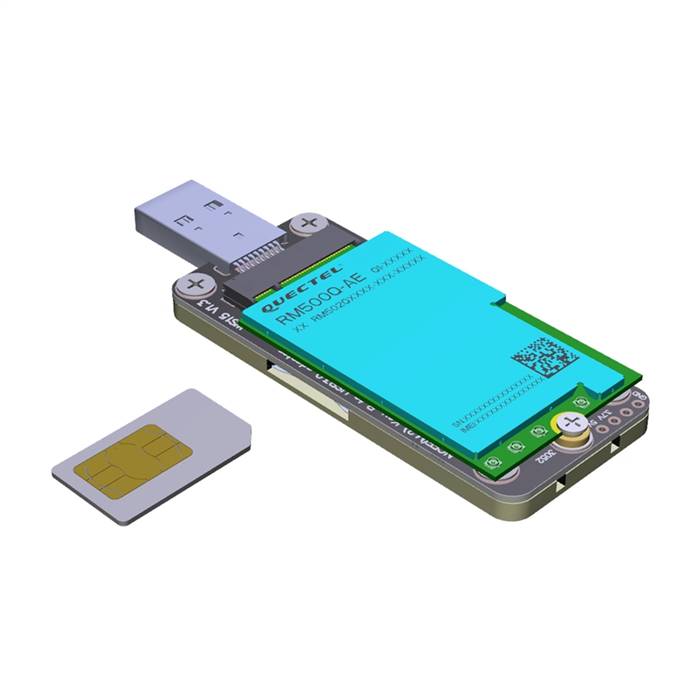

USB 3.0 Type-A Male to M.2 B-key Female 3G/4G/5G/LTE Adapter Card

The USB 3.0 Type-A Male to M.2 B-key Female 3G/4G/5G/LTE Adapter Card is a specialized interface conversion solution designed to enable cellular connectivity for a wide range of computing systems. This adapter card allows standard M.2 B-key cellular modules to be connected to computers through a USB 3.0 Type-A port, providing both high-speed data transfer capabilities and power delivery for 3G, 4G, 5G, and LTE wireless modems. The compact design incorporates necessary signal conversion circuitry to translate between USB and PCIe interfaces required by M.2 B-key cellular cards, making it an ideal solution for adding mobile broadband connectivity to desktop computers, embedded systems, and other devices lacking built-in cellular capabilities.

Features

• USB 3.0 Type-A Male Connector: Standard USB 3.0 interface for direct computer connection

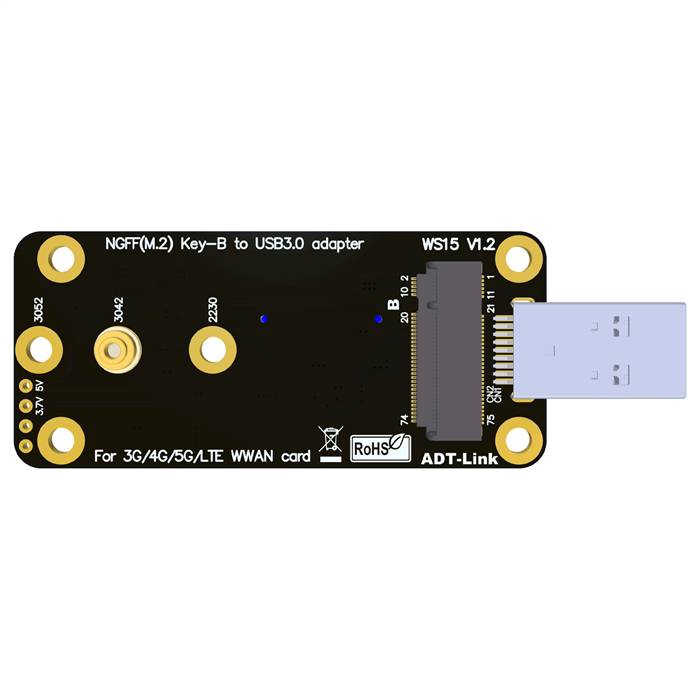

• M.2 B-key Female Socket: Supports M.2 B-key cellular modules in 3042 and 3052 form factors
• Multi-Generation Cellular Support: Compatible with 3G, 4G, 5G, and LTE cellular technologies

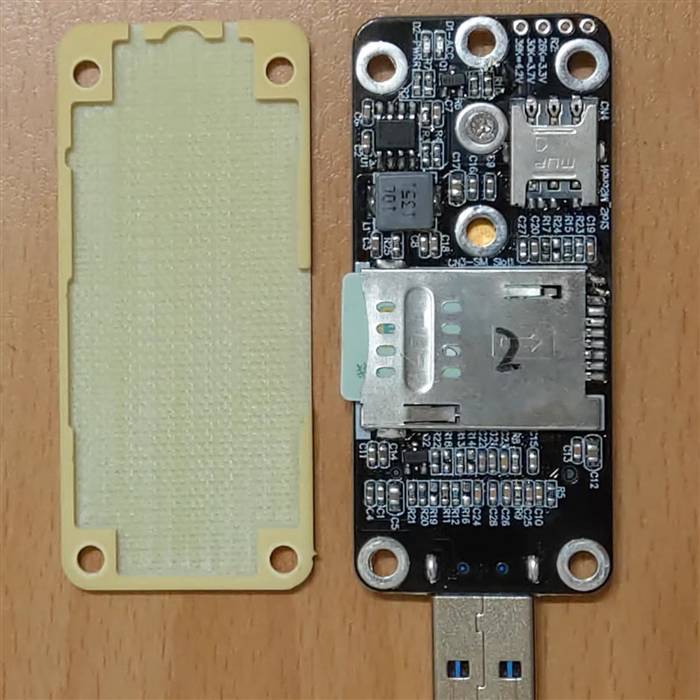

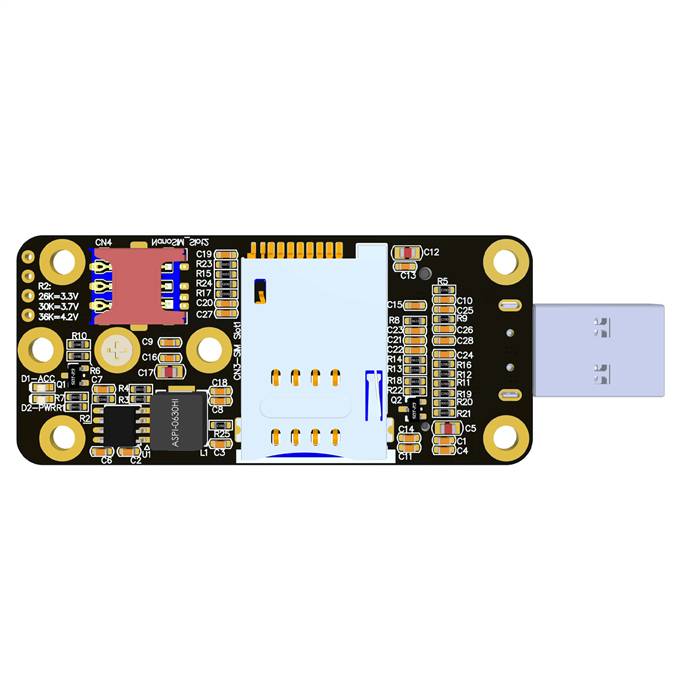

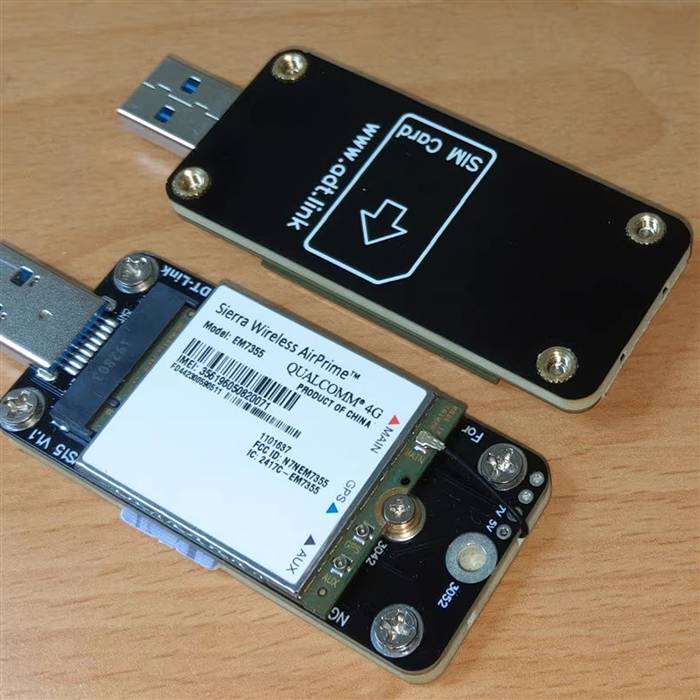

• SIM Card Slot: Integrated SIM card reader for cellular network authentication
• Plug-and-Play Operation: Simple installation without additional drivers required
• Bus-Powered Design: Draws power directly from USB port without external power adapter
• Compact Form Factor: Space-efficient design measuring approximately 85mm x 38mm

Specifications

• Product Model: USB 3.0 Type-A Male to M.2 B-key Female 3G/4G/5G/LTE Adapter Card
• Host Interface: USB 3.0 Type-A Male
• Target Interface: M.2 B-key Female
• Supported Form Factors: 3042, 3052 (30mm width)
• Data Transfer Rate: Up to 5 Gbps (USB 3.0 SuperSpeed)
• Supported Protocols: USB 3.0, PCI Express
• Cellular Support: 3G, 4G, 5G, LTE networks
• SIM Support: Single standard SIM card slot
• Power Requirements: USB bus-powered (5V, 500mA typical)
• Operating Temperature: 0°C to +70°C
• Compatibility: Windows, Linux, macOS

Applications

• Desktop Computer Connectivity: Adding cellular capabilities to desktop systems without internal expansion slots
• Embedded Systems: Industrial and commercial applications requiring reliable cellular connectivity
• Mobile Workstations: Portable computing solutions with cellular network access
• IoT Deployments: Internet of Things devices requiring cellular data connectivity
• Remote Monitoring: Systems in locations without traditional internet infrastructure
• Backup Connectivity: Failover internet connection for critical systems
• Field Computing: Mobile data access for field service and outdoor applications
• Network Testing: Development and validation of cellular modules and technologies
