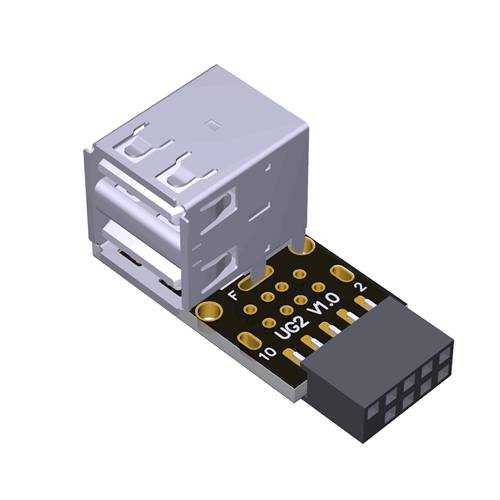

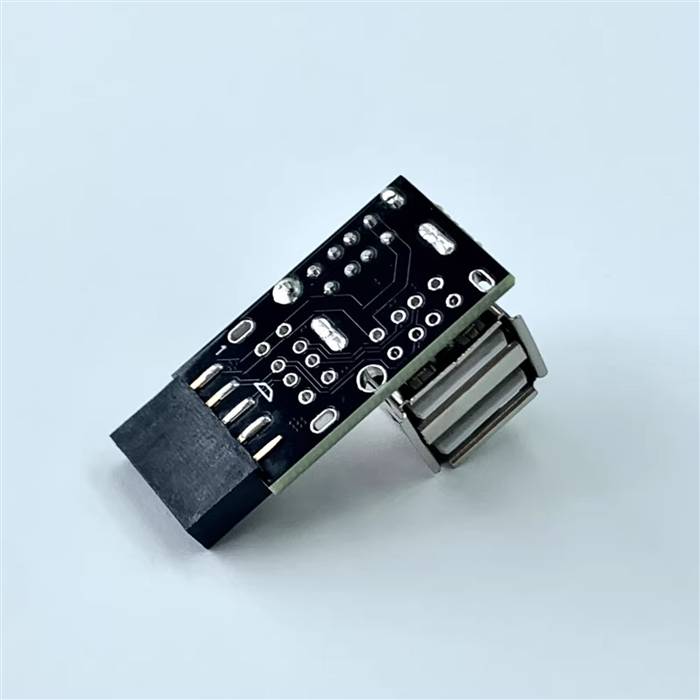

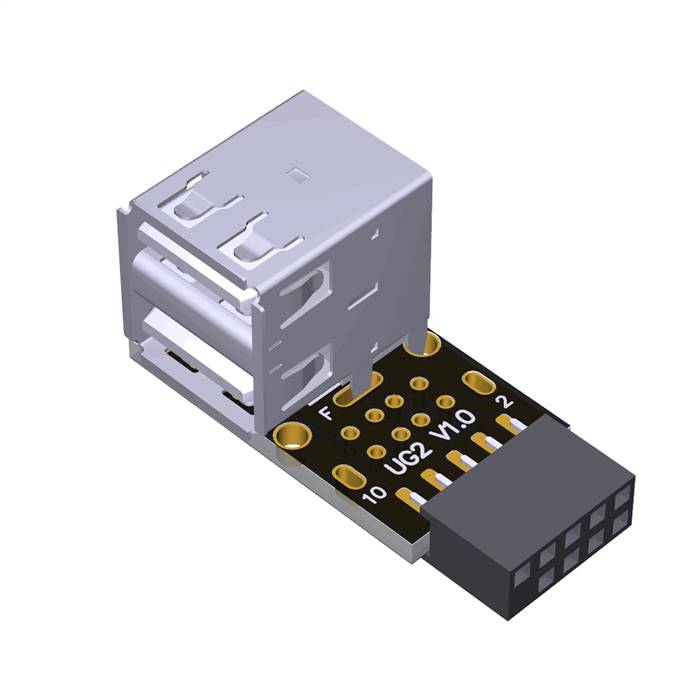

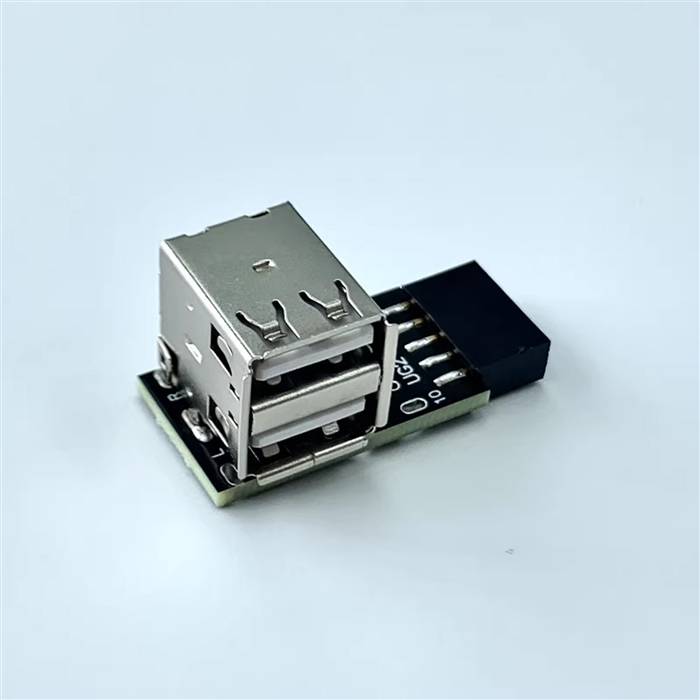

USB 9-pin to Dual USB 2.0 Type-A Female Right Side Exit Adapter

The USB 9-pin to Dual USB 2.0 Type-A Female Right Side Exit Adapter is a practical connectivity solution designed to expand USB port availability in space-constrained system configurations. This adapter converts a single standard 9-pin USB motherboard header into two independent USB 2.0 Type-A female ports with a convenient right-side exit orientation. The unique right-angle design facilitates optimal cable routing and port placement in compact computer cases, small form factor systems, and embedded applications where traditional straight connectors would cause mechanical interference. This solution provides additional USB connectivity while maintaining full USB 2.0 performance and compatibility.

Features

• Dual USB 2.0 Ports: Two independent Type-A female ports from a single 9-pin header
• Right Side Exit Design: 90-degree right-angle orientation for improved cable management
• Space-Optimized Configuration: Ideal for compact systems and tight installation spaces
• Plug-and-Play Operation: No drivers required for standard USB 2.0 functionality
• Standard USB Header: Compatible with common 9-pin motherboard USB connectors
• Durable Construction: Quality materials ensure reliable long-term performance
• Universal Compatibility: Works with all USB 2.0 devices and peripherals

Specifications

• Product Model: USB 9-pin to Dual USB 2.0 Type-A Female Right Side Exit Adapter
• Host Interface: 9-pin USB Header (Standard motherboard connector)
• Target Interfaces: 2x USB 2.0 Type-A Female
• Port Orientation: Right-side exit (90-degree right angle)
• Data Transfer Rate: Up to 480 Mbps (USB 2.0 High-Speed)
• Supported Protocols: USB 2.0
• Power Delivery: Standard USB 2.0 power (500mA maximum per port)
• Operating Temperature: 0°C to +70°C
• Cable Length: 12cm standard
• Connector Type: 9-pin USB header to dual Type-A female ports
• Pin Configuration: Standard USB 2.0 pinout

Applications

• Small Form Factor PCs: Space-optimized USB expansion in compact computer cases
• Motherboard Port Expansion: Adding additional USB ports to systems with available headers
• Embedded Systems: Industrial and commercial applications requiring compact USB connectivity
• Custom PC Builds: Unique system configurations with specific cable routing requirements
• Kiosk and Digital Signage: Commercial systems needing additional USB ports in limited space
• Test and Development: Prototyping and validation requiring multiple USB connections
• Office Workstations: Expanding USB connectivity for multiple peripherals
• OEM Solutions: Integration into custom computing products and system assemblies
