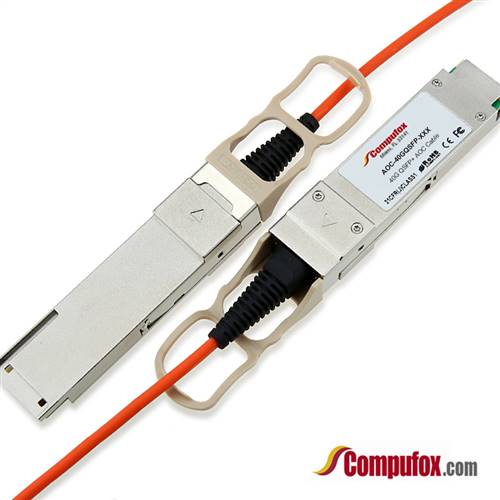

40GB QDR QSFP+ Active Optical Cable, QSFP+ AOC, 100 Meters.

QSFP+ active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. Our cables compliant with the QSFP+ MSA and IEEE P802.3ba 40GBASE-SR4.

Compufox's QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

• Full duplex 4 channel 850nm parallel active optical cable
• Transmission data rate up to 10.3Gbit/s per channel
• SFF-8436 QSFP+ compliant
• Hot pluggable electrical interface
• Differential AC-coupled high speed data interface
• 4 channels 850nm VCSEL array
• 4 channels PIN photo detector array
• Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
• Low power consumption: <1.5W
• Operating case temperature: 0°C to +70°C
• 3.3V power supply voltage
• RoHS 6 compliant

Applications

• Infiniband transmission at 4ch SDR, DDR and QDR
• 40GBASE-SR4 40G Ethernet
• Data Centers

Specifications

• Cable Type: 40G QSFP+ AOC
• Connector A: QSFP+ SFF-8436
• Connector B: QSFP+ SFF-8436
• Length: 100 Meters
• Wire: OM3 MMF
• RoHS Compliant: Yes

We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
