AOC-56G-QSFP | 56G QSFP+ to QSFP+ AOC
AOC-56G-QSFP | Active Optical Cable| Compufox.com



Our Price: $115.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-56G-QSFP

Specify Equipment for Connector 1

Select Brand:

Compatibility:

Specify Equipment for Connector 2

Select Brand:

Compatibility:

Select Length*:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

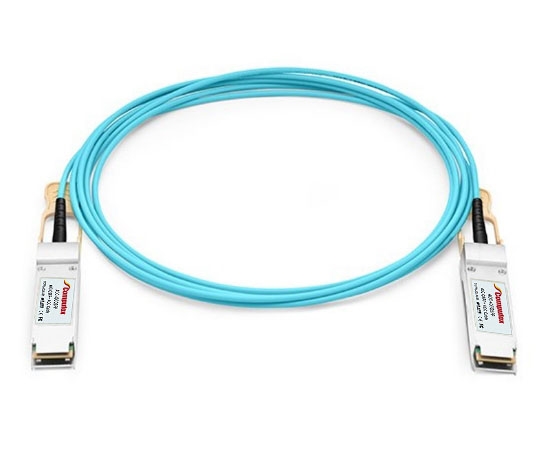

56G QSFP+ to QSFP+ AOC, FDR 56G QSFP+ Active Optical Cable.
The 56G QSFP+ AOC - active optic cables offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, this QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14 Gb/s per direction, providing an aggregated rate of 56Gb/s. The cable is available in a number of standard lengths up to 100 meters.

Features
  • Hot-pluggable QSFP+ form-factor connectors
  • 4 channels full-duplex active optical cables
  • 4x 850nm VCSEL array and PIN photo-detector array
  • Differential AC-coupled high-speed data interface
  • Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
  • Compliant with 4x16GFC and InfiniBand FDR/QDR/DDR/SDR
  • Data rate up to 56Gbps
  • Length up to 100m/150m over OM3/OM4 MMF
  • Power consumption < 1.5W per end
  • Operating case temperature range from 0°C to 70°C
  • 3.3V power supply voltage
  • RoHS compliant (lead free)
Applications
  • InfiniBand FDR,QDR,DDR,and SDR
  • 40GBASE-SR4 Ethernet links
  • 4G/8G/10G Fiber Channel
  • SATA/SAS Storage
  • HPC Interconnects
  • Proprietary Interconnections

SPECIFICATIONS
Connector AFDR 56G QSFP+
Connector BFDR 56G QSFP+
Max Data Rate56Gbps
Max Length150m (492ft)
Wavelength850nm
MediaOM4 MMF
Temperature0 to 70°C (32 to 158°F)
Power Consumption< 1.5W per end
