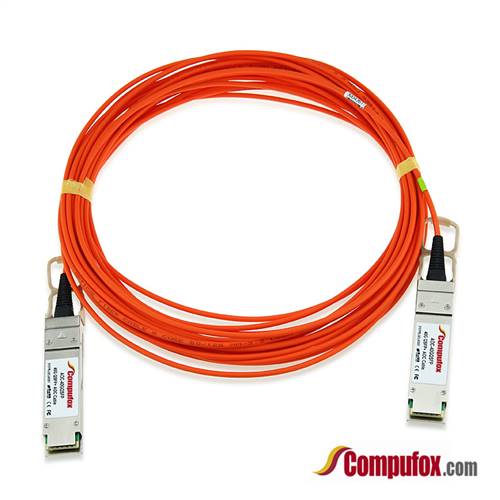

56GB FDR QSFP+ Active Optical Cable, QSFP+ AOC, 15 Meters.
Compufox's QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane is
capable of transmitting data at rates up to 14.025Gb/s, providing an
aggregated rate of 56 Gb/s.
Features
- Full duplex 4 channel 850nm parallel active optical cable
- Transmission data rate up to 14.025Gbit/s per channel
- SFF-8436 QSFP+ compliant
- Hot pluggable electrical interface
- Differential AC-coupled high speed data interface
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Maximum link length of 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
- Low power consumption
- Housing isolated from connector ground
- Operating case temperature: 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
Applications
- InfiniBand FDR
- 16x Fibre Channel
- PCI-e3.0
- Proprietary High Speed Interconnections
- SAS 3.0
Specifications
- Cable Type: 56G QSFP+ AOC
- Connector A: QSFP+ SFF-8436
- Connector B: QSFP+ SFF-8436
- Length: 15 Meters
- Wire: OM3 MMF
- RoHS Compliant: Yes
We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
