AOC-QSFP-4SFP-7M (QSFP+ to 4 SFP+ AOC Cable)
QSFP+ to 4 x SFP+ AOC Cable, 7 Meter



Our Price: $165.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: AOC-QSFP-4SFP-7M

Specify Equipment for SFP+ Side

Select Brand:

Compatibility:
Specify Equipment for QSFP+ Side

Select Brand:

Compatibility:

Qty:
Description

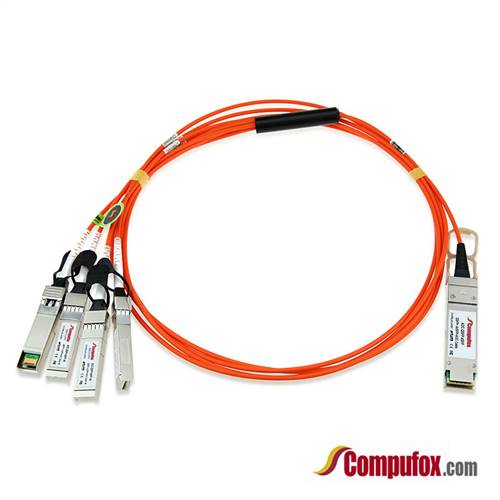

QSFP+ to 4 x SFP+ AOC Cable, 7 Meters.

Compufox's QSFP+ to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.

For typical applications, users can install this splitter Active Optical cable between an available QSFP+ port on their 40Gbps rated switch and feed up to four upstream 10GbE SFP+ enabled switches. Each QSFP+-SFP+ splitter Active Optical cable features a single QSFP+ connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.

Features

  • Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431)
  • Hot Pluggable
  • 850nm VCSEL transmitter, PIN photo-detector receiver
  • Up to 100m on OM3 MMF
  • Operating case temperature: 0to 70°C
  • All-metal housing for superior EMI performance
  • RoHS compliant (lead free)

Applications

  • 40 Gigabit Ethernet
  • Fibre Channel Applications
  • InfiniBand QDR, SDR, DDR
  • High-performance computing clusters
  • Servers, switches, storage and host card adapters

Specifications

  • Cable Type: QSFP+ to 4 SFP+ AOC
  • Connector A: QSFP+ SFF-8436
  • Connector B: 4 x SFP+ SFF-8431
  • Length: 7 Meters
  • Wire: OM3 MMF
  • RoHS Compliant: Yes

We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
