Features
- 40GBase QSFP+ to 8x LC Connectors
- OM3 MMF Cable
- Full duplex 4 channel 850nm parallel active optical cable
- Transmission data rate up to 10.3Gbit/s per channel
- SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
- Management Interface and digital diagnostic monitoring(DDM) through I2C
- Support Rx output pre-emphasis
- 4ch 850nm VCSEL array
- 4ch PIN photo detector array
- Helix type multi-mode optical fiber cable of up to 100m
- OFNP (Optical Fibre Non-Conductive Plenum) rated cable
- Differential AC-coupled high speed data interface
- Low power consumption of typical 0.8W per end
- Housing isolated from connector ground
- Easy to use release mechanism
- Operating case temperature 0ºC to +70ºC
- 3.3V power supply voltage
- RoHS 6 compliant
- Laser Class 1
Applications
- Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
- Multi-channel 10Gb Ethernet transmission up to 4 channels
- Fiber Channel transmission at 8.5Gbit/s per channel, up to 4 channels
- QSFP+ to LC cables with MT connectors for plugging into existing cable runs or patch panels
- Creating a breakout cable with four Duplex LC connectors for port expander applications
- SDR / DDR / QDR
Specifications

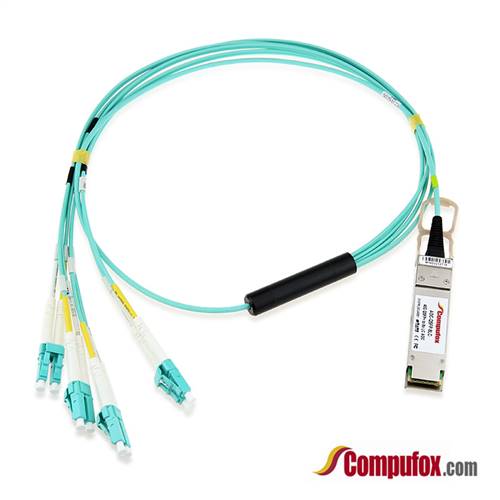

- Cable Type: QSFP+ to 8 LC AOC
- Connector A: QSFP+ SFF-8436
- Connector B: 8 Simplex LC (4 Duplex LC)
- Length: 10 Meters
- Wire: OM3 MMF
- RoHS Compliant: Yes
We can provide this cable in any length. If the length you need is not listed on our website, please feel free to contact us.
