AOC-U31-C-C | USB 3.1 AOC
AOC-U31-C-C | Active Optical Cable| Compufox.com



Alternative Views:
Our Price: $190.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 5-7 days


Product Code: AOC-U31-C-C


Select Length*:

Qty:
Description Datasheet

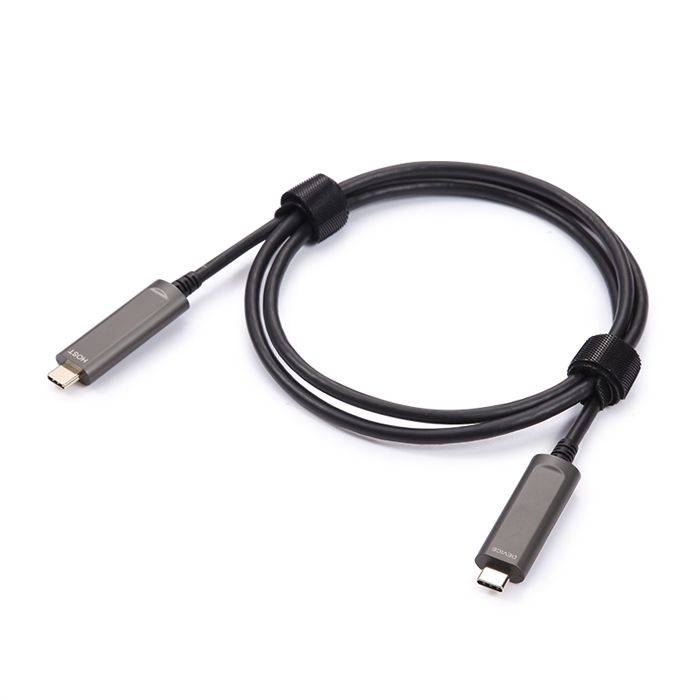

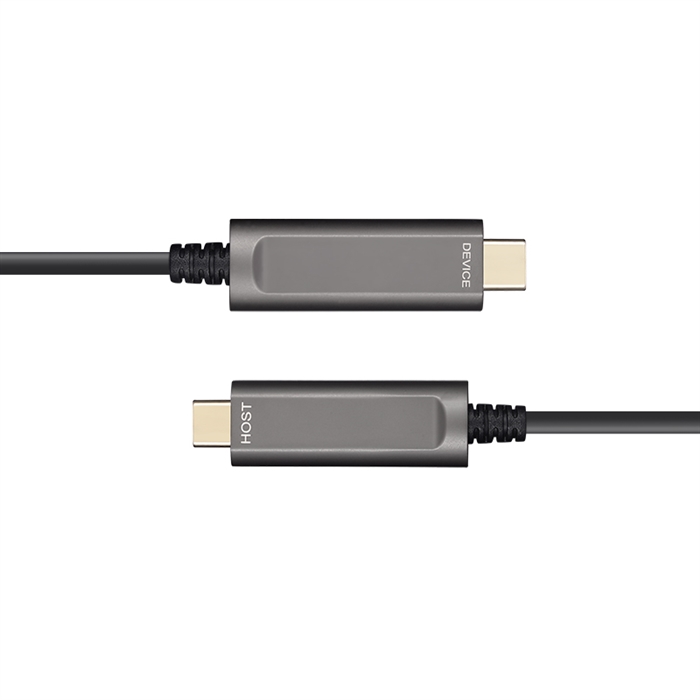

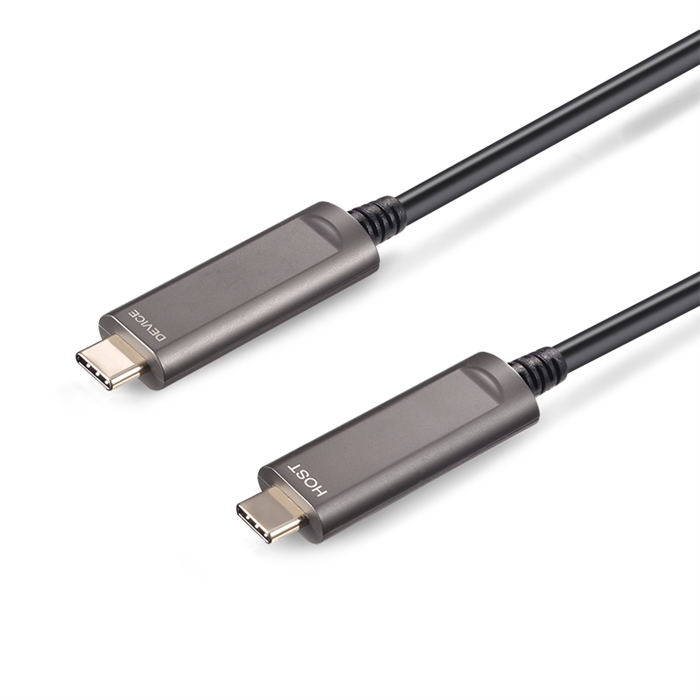

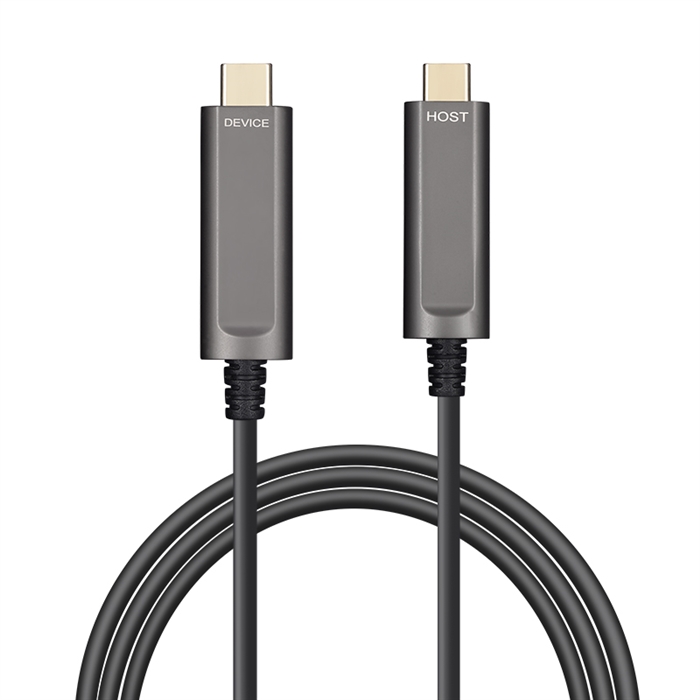

USB 3.1 AOC, Type-C to Type-C, Hybrid 10Gbps USB 3.1 GEN 2 Active Optical Cable.
The USB 3.1 GEN 2 active optical cables address the growing need for bandwidth with plug-and-play links to existing electrical connectors that scale greater distances than previously possible over copper links.

Supporting the latest USB 3.1 Gen 2 standards, the USB 3.1 GEN 2 AOCs are ideal for AR/VR, cameras for conference rooms and machine vision, storage, and other computer peripherals.

The USB 3.1 GEN2 Type C to Type C Active Optical Cables are designed for current peripheral devices using the latest USB Type-C connector. The USB 3.1 GEN 2 C-C AOC delivers superior performance while providing a reliable plug-and-play user experience.

Features
  • Meet USB 3.1 Gen2 Standard , bandwidth can reach up to 10Gbps super speed
  • Support length up to 30m
  • Hybrid optical cable with fiber and copper wire
  • Support USB 2.0 & 3.0
  • Support two sides plug and play
  • Can provide 5V 800mA power maximum to the remote device
  • Does not support charging or powering of devices
  • No RF interference , working stable in complex environments
Applications
  • Mobile Terminal
  • Home Theater
  • Medical Imaging Equipment
  • LED Signboards
  • TV Broadcast Station
  • Airplane On-board Video System
  • Conference Room
  • Digital Signage
USB Connector Type Reference Chart
USB 2.0 Type A
USB 3.0 Type A
USB 3.1 Type A
USB Connector Type Reference Chart | Compufox.com
 USB 2.0 Type C
USB 3.0 Type C
USB 3.1 Type C
USB Connector Type Reference Chart | Compufox.com
USB 2.0 Type B

USB Connector Type Reference Chart | Compufox.com 		USB 3.0 Type B

USB Connector Type Reference Chart | Compufox.com
USB 2.0 Micro B

USB Connector Type Reference Chart | Compufox.com 		USB 3.0 Micro B

USB Connector Type Reference Chart | Compufox.com
USB 2.0 Mini B
USB 3.0 Mini B

USB Connector Type Reference Chart | Compufox.com

Certifications


SPECIFICATIONS
Connector A USB 3.1 Type-C Male
Connector B USB 3.1 Type-C Male
Cable Copper Optical Hybrid Cable
Protocols Supported USB 3.1 GEN 2, USB 3.0, USB 2.0
Max Data Rate 10Gbps
Max Length 30m (98ft)
Cable Diameter 4.0mm
Minimum Bend Radius 30mm
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
