In-line Fixed Value Fiber Optic Attenuator
In-line Fixed Value Fiber Optic Attenuator



Our Price: $14.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: ATT-INL-FIX


Select Mode Type*: 		OM1 62.5/125 Multimode
OM2 50/125 Multimode
OM3 50/125 Multimode
OS1 9/125 Singlemode

Select Connector 1*: 		LC
SC
ST
FC

Polishing of Connector 1: 		UPC (Default)
APC [Add $0.50]

Select Connector 2*: 		LC
SC
ST
FC

Polishing of Connector 2: 		UPC (Default)
APC [Add $0.50]

Select Attenuation Value*:

Select Length*:

Qty:
Description

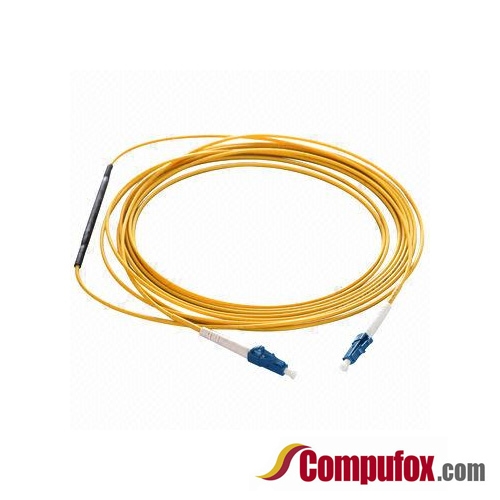

In-line fixed optical attenuators are integrated into a standard connectorized fiber optic jumper cable. Cable is terminated with ST, FC, SC, LC, and SC/APC, FC/APC, or LC/APC optical connector and available in the lengths up to 50 meters

Features

  • Single mode and Multi mode versions
  • Low insertion loss
  • Attenuation from 1dB to 30dB
  • PC, UPC, and APC polish types optional

Application

  • Telecommunication networks
  • Optical communications system
  • CATV networks

Operation wavelength 1250~1620nm
Attenuation Value 1dB~10dB (1dB step), 15, 20, 25, 30dB
Connector Type FC/PC, SC/PC, FC/APC, SC/APC, LC
Attenuation Accuracy 1~9dB (±0.5dB), 10~20dB (±1.0dB), 21~30dB (±1.5dB)
Return Loss ≥50dB (PC) or ≥60dB (APC)
PDL <0.2dB
Operating Temperature -25?~+70 °C
Storage Temperature -40 ~ 80 °C
Thermal Stability 0.3dB/°C
Power 1W
