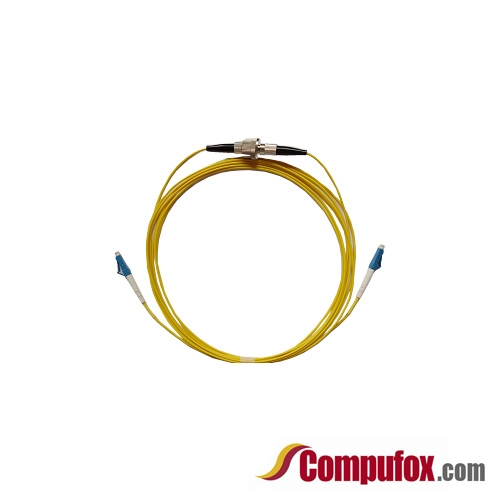

In-line Variable Fiber Optic Attenuator, 0~30dB
In-line Variable Fiber Optic Attenuator, 0~30dB



Our Price: $28.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships in 2 days


Product Code: ATT-INL-VAR


Select Mode Type*: 		OM1 62.5/125 Multimode
OM2 50/125 Multimode
OM3 50/125 Multimode
OS1 9/125 Singlemode

Select Connector 1*: 		LC
SC
ST
FC

Polishing of Connector 1: 		UPC (Default)
APC [Add $0.50]

Select Connector 2*: 		LC
SC
ST
FC

Polishing of Connector 2: 		UPC (Default)
APC [Add $0.50]

Select Length*:

Qty:
Description


The in-line variable fiber optic attenuator is manually-adjusted, used for precisely balancing the signal strengths in fiber circuits, or balancing an optical signal when evaluating the dynamic range of the measurement system.


Features

  • High Precise attenuation value
  • Perfect environmental stability and reliability
  • Low additional loss
  • Flawless end face
  • Wide attenuation range (variable)


Applications

  • Fiber optical telecommunication system
  • FTTH, CATV, LAN
  • Subscriber loop
  • Fiber optical sensor
  • Testing equipment

Operation wavelength 1260~1610nm
Attenuation Value 0dB~30dB
Initial Insertion Loss <1.0dB
Adjustment Resolution <0.2dB
Return Loss UPC: >55dB APC: >65dB
Operating Temperature -25?~+70 °C
Storage Temperature -40 ~ 80 °C
