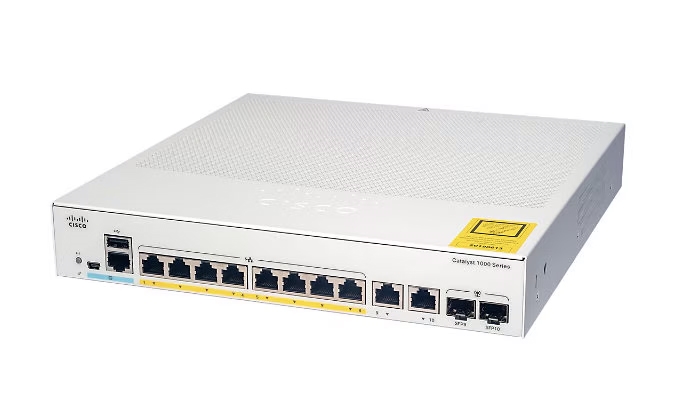

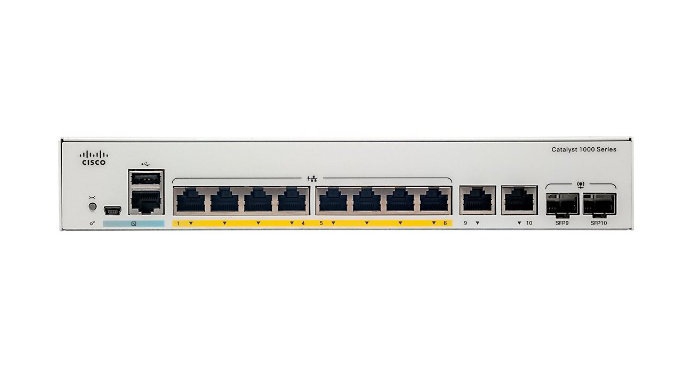

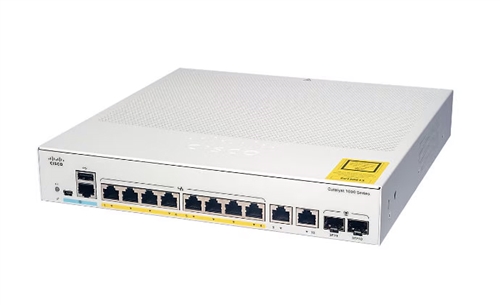

The Cisco C1000-8T-E-2G-L is a fixed, fanless, managed Gigabit Ethernet switch with 8x 10/100/1000BASE-T (RJ45) ports and 2x 1G SFP/RJ45 combo uplink ports for flexible expansion. It features 20 Gbps switching capacity and 14.88 Mpps forwarding rate, an 800 MHz ARM CPU, 512 MB RAM, and 256 MB flash memory. This Layer 2 switch supports advanced security features, VLANs, QoS, and can be managed via a web UI or CLI.

Key Specifications

• Ports: 8 x 10/100/1000BASE-T (RJ45) Ethernet ports
• Uplink Ports: 2 x 1 Gigabit SFP/RJ45 combo uplink ports
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps (Million packets per second)
• Processor: 800 MHz ARM v7 CPU
• Memory: 512 MB RAM, 256 MB Flash
• Fan Module: Fanless for silent operation
• Management: Web UI, CLI, SNMP, SSH, RADIUS, TACACS+
• Security: 802.1x, Access Control Lists (ACLs), Port Security, DHCP Snooping
• Layer 2 Features: VLANs, QoS, STP/RSTP/MSTP, Link Aggregation
• Power: Internal AC Power Supply
• Dimensions: 10.56 x 7.28 x 1.73 inches

Compatible Transceivers

The Cisco C1000-8T-E-2G-L switch has two 1 Gigabit (1G) combo SFP uplink ports. This means you can use either a copper RJ-45 connector or a fiber SFP module in these ports.
