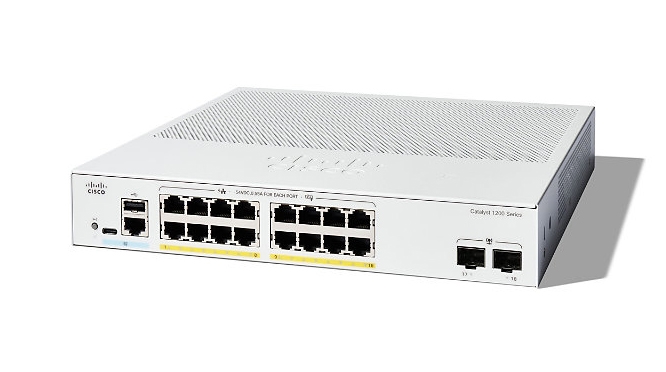

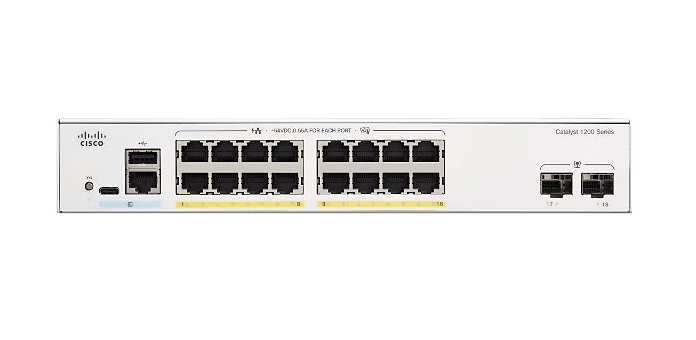

The Cisco C1200-16P-2G is a 16-port Layer 3 managed Gigabit Ethernet switch with 120W PoE+ power budget, two SFP uplink ports, a fanless design, and a switching capacity of 36 Gbps. Key features include energy-efficient Ethernet support, built-in security like 802.1X port security and ACLs, and support for various networking standards and protocols for efficient network management.

Key Specifications

• Product Name: Cisco Catalyst C1200-16P-2G
• Device Type: Smart, Managed, Layer 3 Switch
• Port Configuration: 16 x 10/100/1000 (PoE+) RJ-45 ports
• Uplink Ports: 2 x 1000Base-X (SFP) slots
• Power Over Ethernet (PoE): PoE+ support with a 120W PoE budget
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps (64-byte packets)
• Fan: Fanless design for quiet operation

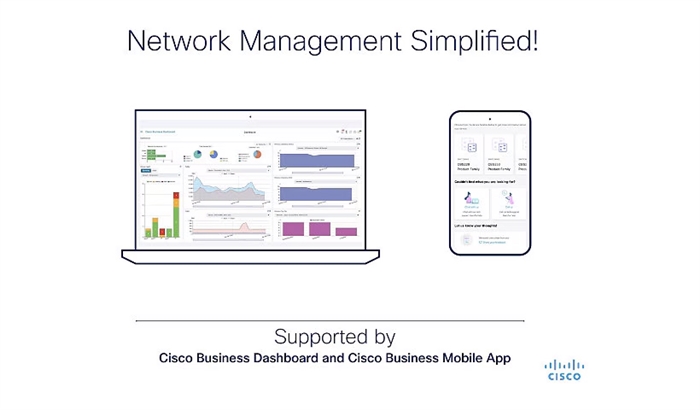

• Management: App management and supports protocols like SNMP, HTTP, HTTPS, SSH, and Telnet
• Network Standards: Supports IEEE 802.3az for energy efficiency, IEEE 802.1Q for VLANs, and IEEE 802.1X for port security
• Security: Includes port security, DoS attack prevention, and ACLs
• Form Factor: Rack-mountable, 1U height
• Memory: 512 MB Flash, 1 GB RAM
• Dimensions: 10.6" W x 11.7" D x 1.7" H

Key Features

• Layer 3 Functionality: Allows for internal routing and management, freeing up a dedicated router for external traffic.
• PoE+ Support: Provides power to compatible devices like IP cameras, access points, and VoIP phones.
• Energy Efficient: Features include IEEE 802.3az support, auto-shutoff for inactive ports, and a fanless design to reduce power consumption.
• Integrated Security: Offers features like 802.1X port security and Access Control Lists (ACLs) to control network access and protect sensitive data.
• VLAN Support: Enables network segmentation for improved performance and organization.

Compatible Transceivers

The Cisco Catalyst C1200-16P-2G switch is compatible with SFP (Small Form-Factor Pluggable) transceivers that provide 1G uplink connectivity through its two SFP ports.
