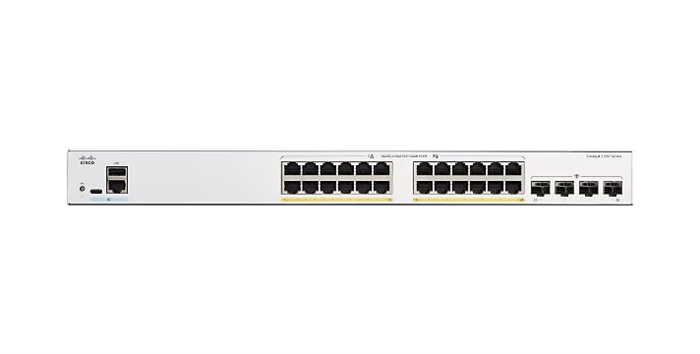

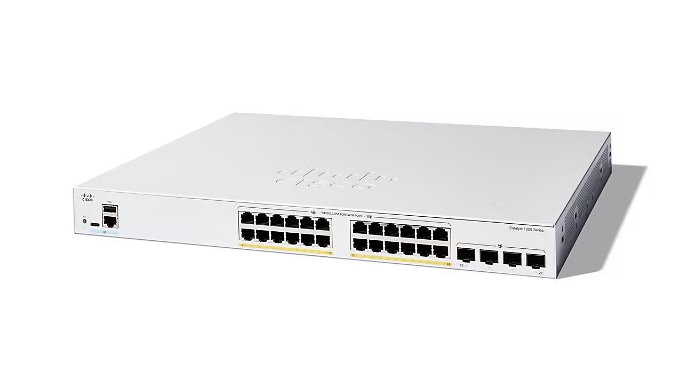

The Cisco Catalyst C1200-24FP-4G is a 24-port Gigabit PoE+ managed smart switch for small to medium-sized businesses, featuring 24 Gigabit PoE+ Ethernet ports, 4 Gigabit SFP uplink ports, and a 375W PoE budget. It offers Layer 3 static routing, a 56 Gb/s switching capacity, and supports management via a web UI or CLI. The switch is rack-mountable, supports Energy-Efficient Ethernet, and includes USB-C console access.

Key Specifications:

• Device Type: Smart Switch
• Ports: 24 x 10/100/1000 Base-T (PoE+) and 4 x 1000Base-X SFP
• PoE Budget: 375W
• Switching Capacity: 56 Gb/s
• Forwarding Rate: 41.66 Mpps (for 64-byte packets)
• Management: Web UI, Command-Line Interface (CLI), Cisco Business Dashboard, and mobile app support
• Security: 802.1X support
• Routing: Layer 3 static routing
• Form Factor: Rack-mountable
• Cooling: Single cooling fan
• Power Consumption: ~449.70W
• Memory: 512 MB flash, 1 GB RAM
• Processor: 1.4 GHz ARM

Features:

• PoE+ Power: Provides up to 30W per port for connected devices like IP phones and access points.
• SFP Uplinks: Allows for fiber optic connections for high-bandwidth needs.
• Scalability: Can connect security cameras, access points, and other network devices.
• Ease of Use: Designed for easy deployment and configuration for small to medium-sized businesses.
• Energy Efficiency: Supports Energy-Efficient Ethernet (EEE) standards to reduce power consumption.
• Connectivity Options: Includes both an RJ-45 and a USB-C port for console access.

Compatible Transceivers

The Cisco C1200-24FP-4G switch is equipped with four Gigabit Ethernet (1G) SFP ports, which are compatible with standard Cisco Gigabit Ethernet SFP transceivers.
