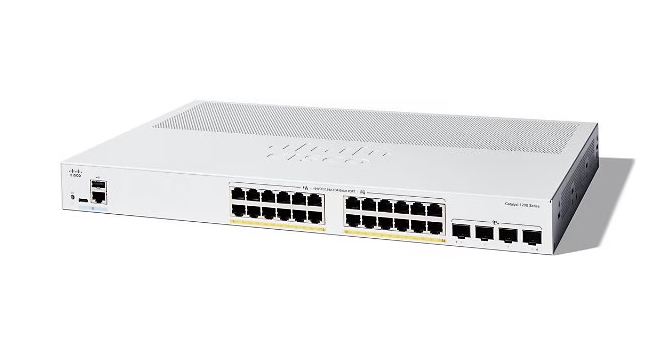

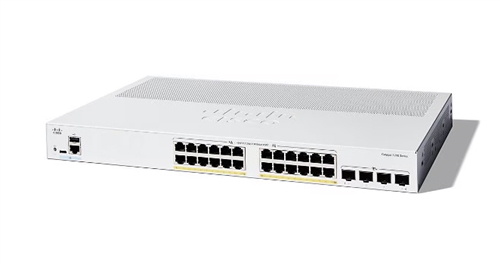

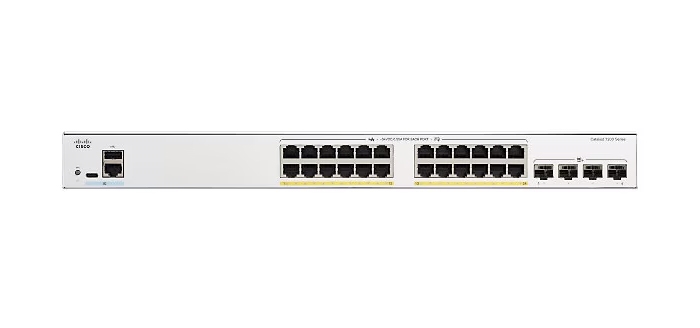

The Cisco Catalyst C1200-24P-4X is a 24-port Gigabit Ethernet smart switch featuring 4x 10GbE SFP+ uplink ports, a 195W PoE+ power budget, a fanless design, and support for Layer 3 routing capabilities. Key specifications include a 1.4 GHz ARM processor, 1 GB RAM, 512 MB flash memory, a switching capacity of 128 Gbps, and a forwarding rate of 95.23 Mpps (for 64-byte packets). It's designed for small to medium-sized businesses and includes various management features like VLAN support, Quality of Service (QoS), and Access Control Lists (ACLs).

Key Specifications

• Ports: 24 x 10/100/1000 (PoE+) RJ-45 ports
• Uplinks: 4 x 10 Gigabit SFP+ ports
• PoE Budget: 195W
• Processor: 1.4 GHz ARM processor
• Memory: 1 GB RAM and 512 MB Flash memory
• Switching Capacity: 128 Gbps
• Forwarding Rate: 95.23 Mpps (millions of packets per second)
• Dimensions: 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 inches)
• Weight: 3.68 kg (8.11 lbs)
• Cooling: Fanless design for quiet operation and increased reliability

Features

• Energy Efficient: Supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption during periods of low traffic.
• Smart & Managed: It's a smart, Layer 3 managed switch with advanced features for network management.
• Security: Includes features like Port Security, Broadcast Storm Control, and DoS (Denial of Service) protection.
• Network Management: Supports VLANs for network segmentation, Quality of Service (QoS) for traffic prioritization, and static IPv4/IPv6 routing.
• Connectivity: Offers standard console and front-panel USB-C ports for management.
• Eco-Friendly: Designed for energy efficiency and lower energy costs.

Compatible Transceivers

The Cisco C1200-24P-4X switch supports SFP+ transceivers for its four 10-Gigabit SFP+ uplink ports.
