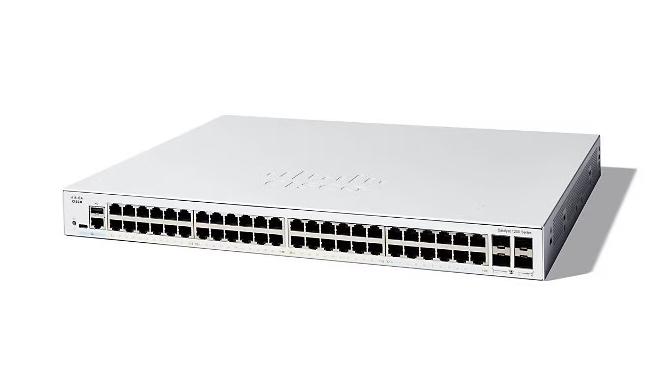

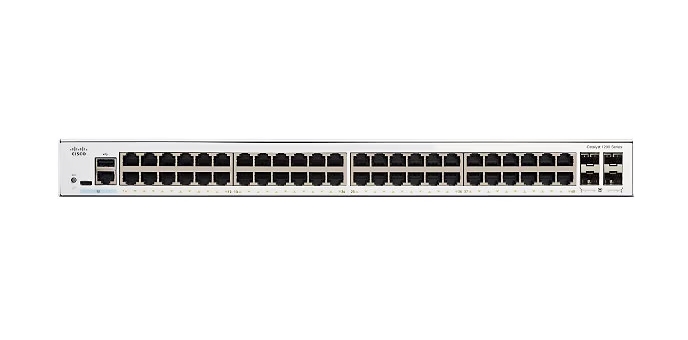

The Cisco Catalyst C1200-48T-4G is a 48-port smart,
Layer 3 managed Gigabit Ethernet switch with 4 Gigabit SFP uplink ports. Key
features include energy efficiency, support for VLANs and QoS, basic Layer 3
static routing, and security features like ACLs and port security. It is
managed via a web interface or the Cisco Business mobile app, is fanless for
quiet operation, and includes features like IGMP snooping and Link Aggregation.
Key Specifications
- Ports:
48 x 10/100/1000 Mbps RJ45 Ethernet ports
- Uplink
Ports: 4 x 1 Gbps SFP ports for fiber or long-range connectivity
- Switching
Capacity: Up to 104 Gbps
- MAC
Address Table Size: Up to 16,000 entries
- Layer:
Layer 3
- Management:
Web-based interface, Cisco Business mobile app, CLI, Cisco Business
Dashboard
- Power:
Internal power supply, AC 100-240V
- Features:
VLANs, QoS, Access Control Lists (ACLs), Port Security, IGMP Snooping,
Link Aggregation (LACP), Energy Efficient Ethernet (EEE), static routing
- Dimensions:
17.5 x 11.3 x 1.7 inches (445 x 288 x 44 mm)
- Weight:
8.71 lbs (3.95 kg)
Key Features
- Smart
Management: Intuitive on-device UI and mobile app for easy
configuration and monitoring.
- Security:
Implements ACLs, port security, and 802.1X authentication to protect
the network.
- Energy
Efficiency: Supports Energy Efficient Ethernet (EEE) and features a
fanless design to reduce power consumption.
- Connectivity:
Provides 48 Gigabit Ethernet ports for connecting endpoints and 4 SFP
uplink ports for fiber connections.
- Silent
Operation: The fanless design ensures the switch operates quietly,
making it suitable for noise-sensitive environments.
- Reliability:
Tested for high reliability and backed by a limited lifetime warranty
and firmware updates from Cisco.
- Network
Optimization: Supports essential features like VLANs for segmentation,
QoS for traffic prioritization, and IGMP snooping for efficient multicast
traffic.
Compatible Transceivers
The Cisco C1200-48T-4G switch supports standard Cisco
Gigabit Ethernet SFP transceivers in its four SFP slots.
|
|
|
