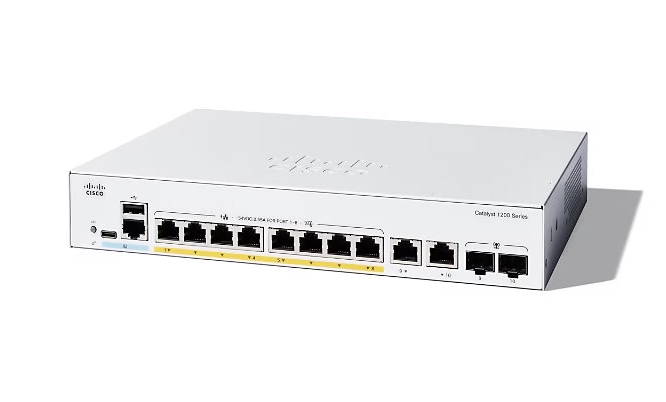

The Cisco Catalyst C1200-8P-E-2G is an 8-port Gigabit PoE+ managed switch with a 67W PoE budget and 2 combo Gigabit SFP/RJ-45 uplink ports, featuring a 20 Gbps switching capacity and 14.88 Mpps forwarding rate. It supports Layer 3 routing and includes management options like the Cisco Business Dashboard and mobile app. Key features include a fanless and silent design.

Key Features & Specifications

• Product Line: Cisco Catalyst 1200 Series

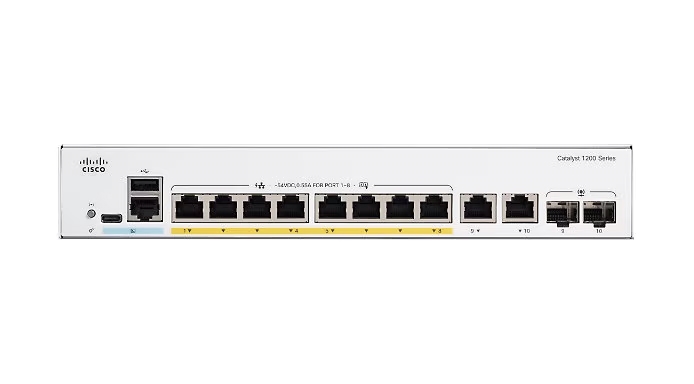

• Ports: 8 x 10/100/1000 (PoE+) RJ-45 ports, 2 x 1 Gb/s combo SFP/RJ-45 ports
• PoE: PoE+ (802.3at) support with a 67W power budget
• Performance: 20 Gbps switching capacity, 14.88 Mpps forwarding rate
• Management: Layer 3 managed switch
• Design: Fanless, silent operation
• Power: External power supply
• Memory: 1 GB RAM, 512 MB Flash memory
• Connectivity: 1 x console RJ-45, 1 x USB-C console
• Warranty: Limited lifetime warranty
• Certifications: UL, CSA, CE Mark, FCC Part 15 (Class A)

Benefits

• Enhanced Power: Provides power to devices like IP phones and access points via PoE+.
• Flexible Uplinks: Offers both copper and fiber options for network uplinks.
• Silent Operation: The fanless design ensures quiet performance.

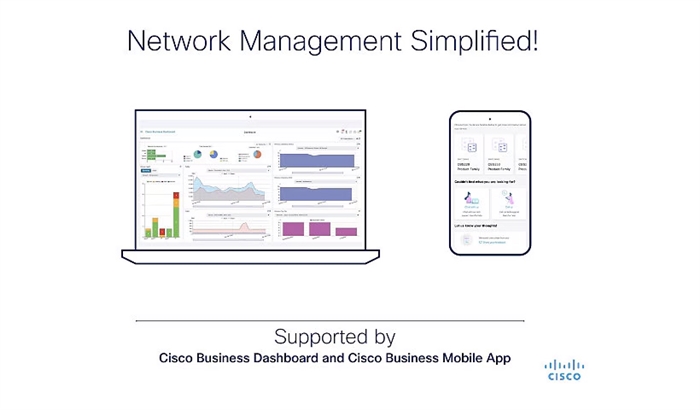

• Simplified Management: Supports on-device UI, Cisco Business Dashboard, and mobile app for easier network management.
• Network Segmentation: Ability to segment the network using VLANs for better performance and efficiency.

Compatible Transceivers

The Cisco C1200-8P-E-2G switch has two Gigabit Ethernet combo ports that support standard Gigabit SFP transceivers. Compatible transceivers can connect to either fiber optic or copper wiring, depending on the SFP module you install.
