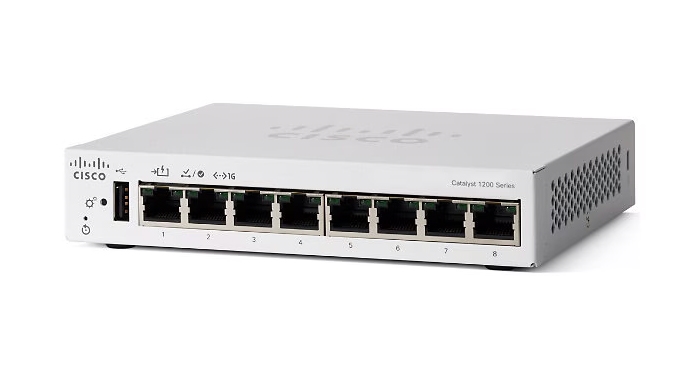

The Cisco Catalyst C1200-8T-D is an 8-port, smart managed Gigabit Ethernet desktop switch for small businesses, featuring 16 Gb/s switching capacity and a 11.9 Mpps forwarding rate. It has a fanless, compact design, 512 MB of flash memory, and 1 GB of DDR4 RAM. The switch includes one 1G PoE input port on the front and supports L3 features, enhanced security, QoS, and Energy Efficient Ethernet.

Key Specifications

• Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet ports
• Switching Capacity: 16 Gb/s
• Forwarding Rate: 11.9 Mpps (64-byte packets)
• CPU: Dual-core, up to 1.4 GHz
• RAM: 1 GB DDR4
• Flash Memory: 512 MB
• PoE Input: One 1G PD PoE input port
• Management: Smart managed, app-managed, web-based interface
• Form Factor: Desktop, fanless
• Other Features: Layer 3 capabilities, Quality of Service (QoS), Energy Efficient Ethernet (EEE), and advanced security features

Features & Benefits

• Performance: Gigabit Ethernet ports ensure high-speed, reliable data transfer for connected devices.
• Security: Advanced threat protection and security features safeguard the network.
• Flexibility: The compact, desktop, fanless design is ideal for small office environments.
• Power: The Power over Ethernet (PoE) input port on the front allows for flexible deployment of network devices.
• Efficiency: Energy Efficient Ethernet reduces power consumption, contributing to lower energy costs.

Compatible Transceivers

The Cisco Catalyst 1200 Series switches, such as the C1200-8T-D, are designed to work with 1G SFP (Small Form-Factor Pluggable) optical modules.
