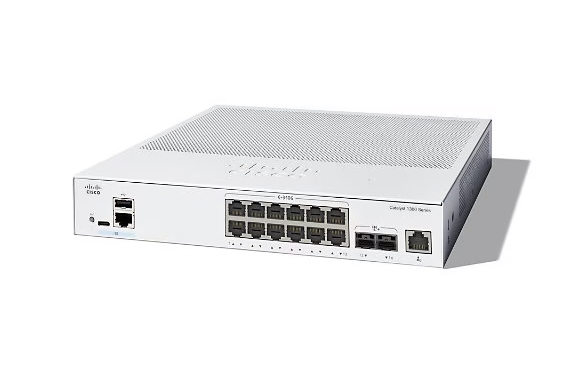

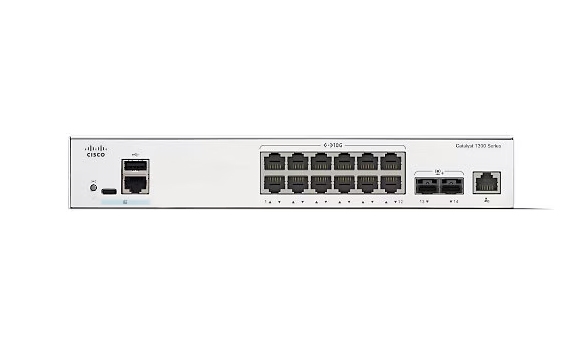

The Cisco Catalyst C1300-12XT-2X is a 12-port 10G managed network switch with 12 x 10G RJ45 ports and 2 x 10G SFP+ uplink ports. It offers Layer 3 routing, a 280 Gb/s switching capacity, and features robust security like IP-MAC port binding and IPv6 First Hop Security. This rack-mountable switch includes intuitive management via a mobile app, local web interface, and Dashboard, and features an energy-efficient design with a low-noise cooling fan.

Key Specifications

• Ports: 12 x 10GBASE-T RJ45 copper ports, 2 x 10GBASE-X SFP+ uplink ports
• Switching Capacity: 280 Gb/s
• Forwarding Rate: 208.33 Mpps
• Switching Layer: Layer 3, with Layer 2 features supported
• Management: Cisco Business mobile app, local web UI, and Cisco Business Dashboard
• Security: IP-MAC Port Binding, IPv6 First Hop Security, DHCP Snooping, Storm Control, DoS Attack Prevention
• Power: Internal power supply
• Form Factor: Rack-mountable
• Dimensions: 11.81 x 10.55 x 1.73 inches

Features

• Scalable Connectivity: Supports high-speed 10G Ethernet connectivity for demanding applications.
• Simplified Management: Cisco Business mobile app and Dashboard provide easy setup and monitoring with step-by-step instructions.
• Enhanced Security: Protects against network attacks with built-in features like IP-MAC port binding.
• Energy Efficient: Complies with IEEE 802.3az Energy Efficient Ethernet to optimize power usage.
• Advanced Layer 3 Features: Enables routing between different VLANs, providing greater network flexibility.

Compatible Transceivers

The Cisco Catalyst 1300-12XT-2X switch is compatible with 10G SFP+ modules for its two SFP+ uplink ports.
