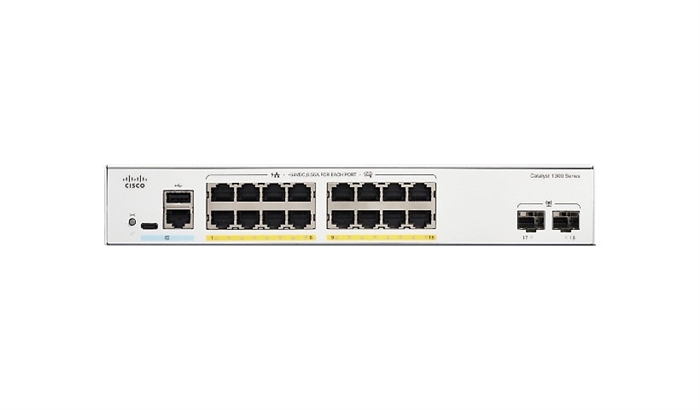

The Cisco C1300-16FP-2G is a 16-port, Layer 3 managed Gigabit Ethernet switch featuring 16 PoE+ RJ-45 ports, 2 Gigabit SFP uplink ports, a 240W total PoE power budget, a switching bandwidth of 36 Gb/s, and a fanless design. It supports advanced features like VLAN, IPv6, QoS, and is designed for small to medium-sized businesses to power devices like VoIP phones and access points.

Key Specifications

• Ports: 16 x 10/100/1000 PoE+ RJ-45, 2 x 1000Base-X SFP
• PoE Budget: 240 Watts
• Switching Bandwidth: 36 Gb/s
• Power over Ethernet (PoE) Capability: Each RJ-45 port supports up to 30W of power (802.3at)
• Management: Managed Layer 3 switch with an ARM processor
• Connectivity: 1 x RJ-45 console port, 1 x USB-C console port, 1 x USB-A port
• Form Factor: Rack-mountable, fixed configuration
• Cooling: Fanless design for quieter operation
• Layer Support: Supports Layer 3 dynamic routing

Features & Applications

• Power for Devices: The PoE+ ports can power security cameras, VoIP phones, and wireless access points, suitable for small to medium businesses.
• Scalability: The two SFP expansion slots provide flexible options for high-speed fiber optic uplinks.
• Security: Includes robust security features such as advanced threat protection, IPv6 first-hop security, and VLAN support.
• Performance: Offers high-performance switching and supports Quality of Service (QoS) for prioritizing network traffic.
• Management: Features include an integrated web-based manager, supports IPv6 for future network evolution, and offers both a console and USB-C port for configuration.

Compatible Transceivers

The Cisco C1300-16FP-2G switch has two Gigabit SFP uplink ports, meaning it is compatible with standard 1 Gigabit SFP (Small Form-Factor Pluggable) transceivers.
