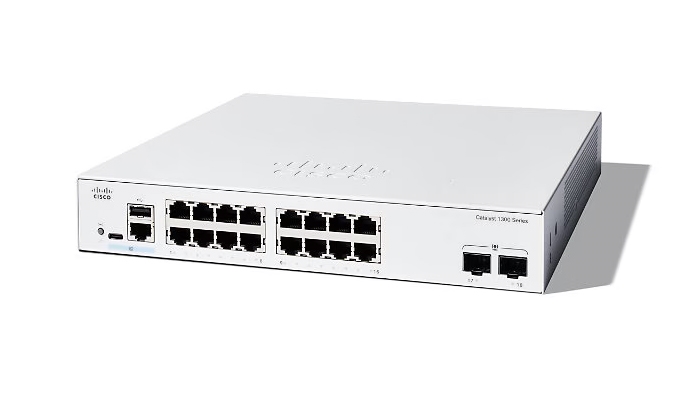

The Cisco Catalyst 1300-16T-2G is a 16-port, managed Gigabit Ethernet Layer 3 switch with 16 RJ-45 10/100/1000Base-T ports, two 1000Base-X SFP slots for fiber uplinks, a switching bandwidth of 36 Gb/s, and a forwarding rate of 26.78 Mpps. It features a dual-core ARM processor, 1 GB of RAM, 512 MB of flash memory, and supports security features like DHCP Snooping and Storm Control. The switch also includes a USB-C console port and an RJ-45 console port for management, and it can be managed via a local web UI, Cisco Business Dashboard, or CLI.

Port Specifications

• RJ-45 Ports: 16 x 10/100/1000Base-T (Gigabit Ethernet)
• SFP Ports: 2 x 1000Base-X (Gigabit Ethernet)

Performance & Capacity

• Switching Bandwidth: 36 Gb/s
• Forwarding Rate: 26.78 Mpps

Hardware & Memory

• Processor: Dual-Core ARM, up to 1.4 GHz
• RAM: 1 GB DDR4 SDRAM
• Flash Memory: 512 MB

Management

• Console Ports: 1 x RJ-45, 1 x USB-C
• Management Methods: On-box web UI, Cisco Business Dashboard, and Command Line Interface (CLI)

Features

• Layer Services: Supports Layer 2 and Layer 3 functionalities
• Security: Includes DHCP Snooping, DoS Attack Prevention, and Storm Control
• Stackable: Yes

Compatible Transceivers

The Cisco Catalyst C1300-16T-2G switch is compatible with 1 Gigabit SFP transceivers for its two uplink ports.
