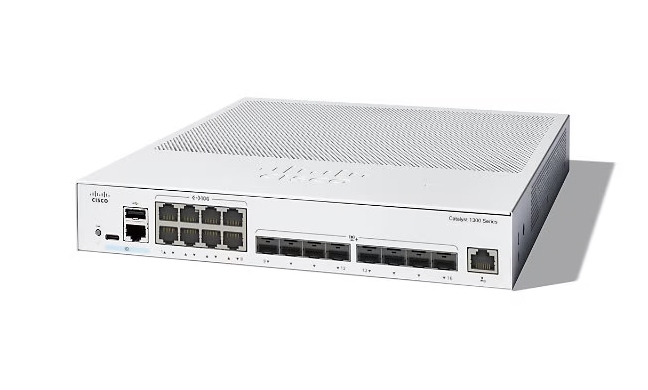

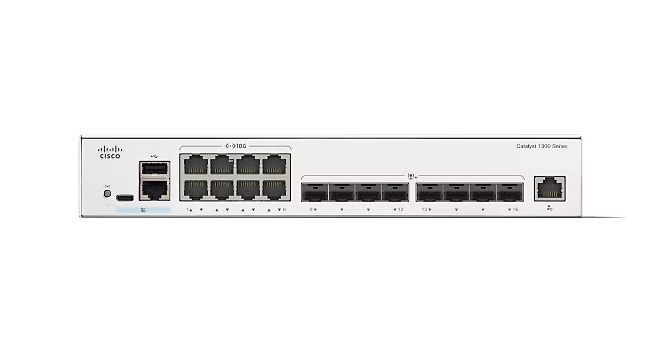

The Cisco C1300-16XTS is a 16-port, Layer 3 managed switch with 8 x 10 Gigabit Ethernet RJ-45 ports and 8 x 10 Gigabit SFP+ uplink ports. It features a 320 Gbps switching capacity, a forwarding rate of 238.1 million packets per second (Mpps), and supports front-panel hardware stacking for up to 8 switches. Key features include high-performance Layer 3 switching, robust security, remote management via web, Cisco Business Dashboard, and a command-line interface (CLI).

Key Specifications

• Device Type: Smart, Layer 3 Managed Switch
• Ports: 16 total
  • 8 x 10 Gigabit Ethernet RJ-45 ports
  • 8 x 10 Gigabit SFP+ (uplink) ports

• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.1 Mpps
• Management:
  • Web-based interface
  • Cisco Business Dashboard
  • Command-line interface (CLI)
  • USB-C and RJ-45 console ports

• Performance:
  • Supports Layer 3 features like static routing and VLANs
  • Jumbo frame support for 9000-byte packets

• Security:
  • IP-MAC port binding for network attack detection
  • IPv6 First Hop Security

• Other Features:
  • Rack-mountable enclosure
  • Hardware stacking for up to 8 switches

Compatible Transceivers

The Cisco C1300-16XTS switch supports both 10G SFP+ transceivers.
