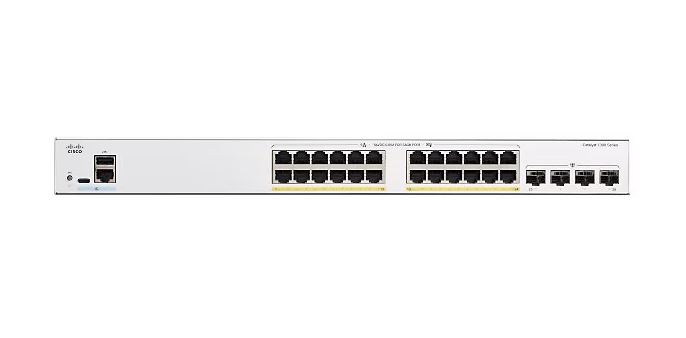

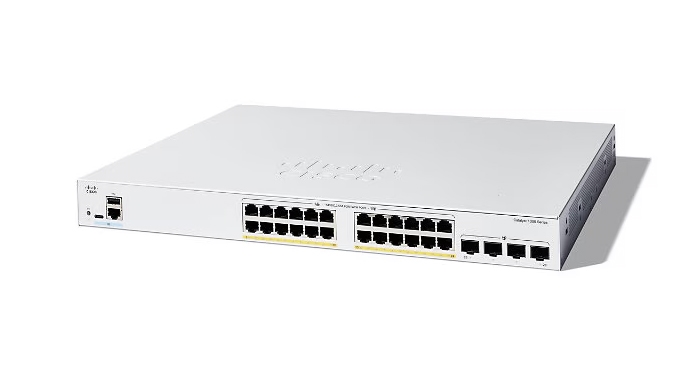

The Cisco Catalyst C1300-24FP-4G is a 24-port, managed Gigabit Ethernet switch with Power over Ethernet (PoE+), featuring 24 x 10/100/1000 Base-T PoE+ RJ-45 ports and 4 x 1000Base-X SFP ports for uplinks. It offers advanced security, management via a web dashboard and Cisco Business Dashboard, and a 370W PoE budget to power devices like IP phones and wireless access points. This rack-mountable, Layer 3 switch provides a 56 Gbps switching capacity and a 41.66 Mpps forwarding rate, ideal for small to medium-sized businesses.

Key Features & Specifications:

• Ports: 24 Gigabit Ethernet PoE+ ports (10/100/1000 Mbps) and 4 Gigabit SFP uplink ports.
• Power: A 370W total PoE budget, allowing each port to deliver up to 30W of power.
• Management: Fully managed switch with an intuitive web-based dashboard and support for Cisco Business Dashboard and CLI.
• Layer Support: Supports full Layer 3 functionality, including advanced networking features and dynamic routing.
• Switching Capacity: 56 Gbps.
• Forwarding Rate: 41.66 million packets per second (Mpps).
• Security: Includes advanced security features, such as IPv6 first-hop security and IEEE 802.1x authentication.
• Mounting: Rack-mountable, 1RU form factor.
• Console & USB: Features both an RJ-45 console port and a USB-C console port.
• Operating System: Runs on a customized, Linux-based operating system.
• Target Market: Designed for small to medium-sized businesses (SMBs) and branch offices.

Compatible Transceivers

The Cisco C1300-24FP-4G switch supports standard 1 Gigabit SFP transceivers for fiber uplinks.
