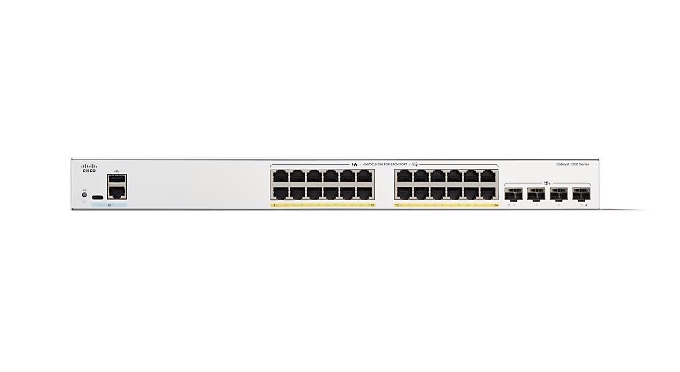

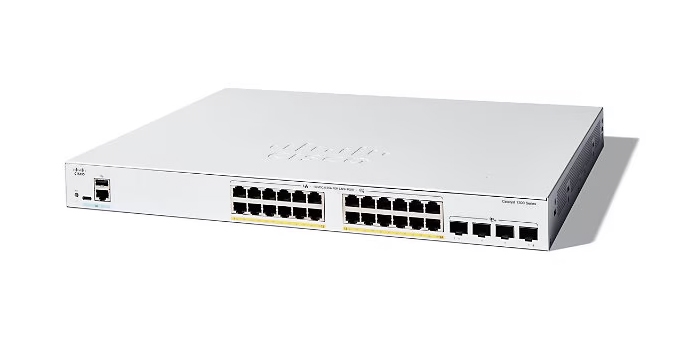

The Cisco C1300-24FP-4X is a 24-port managed Gigabit Ethernet switch with four 10 Gigabit SFP+ uplink ports and a 375W total PoE power budget for PoE+ devices. It features an ARM 1.4 GHz processor, 1 GB RAM, 512 MB flash memory, and supports native stacking of up to eight units. The switch provides Layer 2 switching, VLANs, Quality of Service (QoS), and IPv6 support, managed via a web interface, Cisco Business Dashboard, CLI, or SNMP.

Key Specifications

• Product Line: Cisco Catalyst 1300 Series
• Ports: 24 x 10/100/1000 (Gigabit Ethernet PoE+) RJ-45 ports
• Uplink Ports: 4 x 10 Gigabit SFP+
• PoE (Power over Ethernet): Yes, up to 375W PoE budget (PoE+)
• Switching Bandwidth: 128 Gb/s
• Processor: ARM, 1.4 GHz
• Memory: 1 GB RAM, 512 MB flash memory
• Connectivity: 1 x console RJ-45, 1 x USB-C console, 1 x USB-A
• Stacking: Supports native stacking with up to 8 switches
• Management: Managed switch with Cisco Business Dashboard and mobile app, on-device UI, CLI, and SNMP support
• Dimensions: 445 x 345 x 44 mm (17.5 x 13.78 x 1.73 in)
• Weight: 4.92 kg (10.84 lb)

Key Features

• Managed: Offers comprehensive network management features.
• Layer 3 Functionality: Includes advanced features like routing and full L2 functionality.
• Security: Features include advanced threat protection and IPv6 first-hop security.
• Network Features: Supports Quality of Service (QoS) and VLANs.
• PoE+ Support: Powers compatible devices like IP phones and access points.
• Native Stacking: Allows for the management of multiple switches as a single logical device.

Compatible Transceivers

The Cisco C1300-24FP-4X switch has four 10G SFP+ ports that use SFP+ (Small Form-Factor Pluggable) transceivers for 10 Gigabit speeds.
