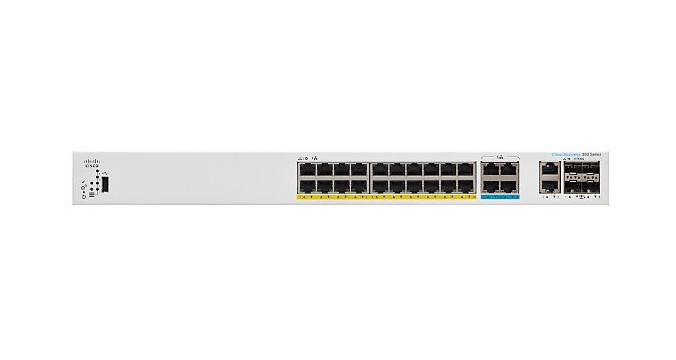

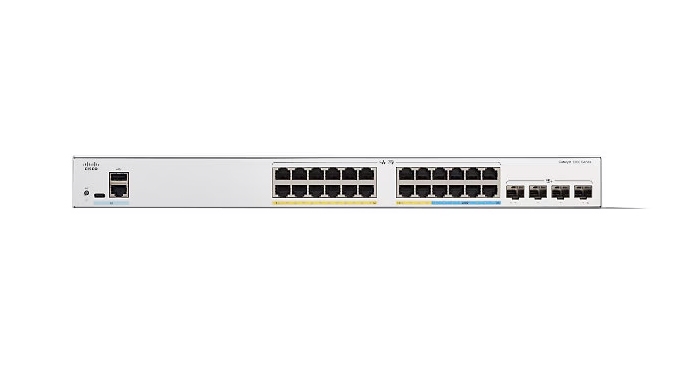

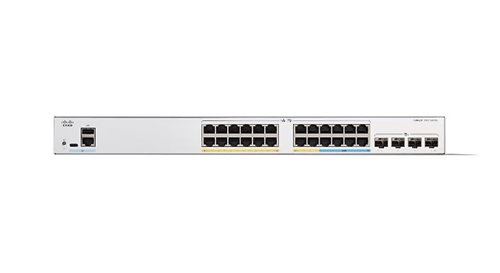

The Cisco Catalyst C1300-24MGP-4X is a managed, 24-port Layer 3 network switch featuring 16 x 1 Gigabit Ethernet PoE+ ports, 8 x 2.5 Gigabit Ethernet PoE+ ports, and 4 x 10 Gigabit SFP+ uplink ports. It offers a total PoE budget of 375W with up to 30W per port, a 152 Gbps switching bandwidth, and integrates with the Cisco Business Dashboard and mobile app for easy management.

Key Specifications:

• Ports:
  • 16 x RJ45 1 Gigabit Ethernet with PoE+
  • 8 x RJ45 2.5 Gigabit Ethernet with PoE+
  • 4 x SFP+ 10 Gigabit Ethernet

• PoE:
  • PoE per Port: Up to 30W (IEEE 802.3at)
  • PoE Budget: 375W

• Performance:
  • Switching Bandwidth: 152 Gbps
  • Forwarding Rate: 113.08 Mpps

• Management:
  • Managed Layer 3 Switch
  • Web UI, CLI, and SNMP management
  • Integration with Cisco Business Dashboard and mobile app

• Security Features:
  • Static and Dynamic Port Security
  • Access Control Lists (ACLs)
  • DHCP Snooping, ARP Inspection, IP Source Guard
  • IPv6 First Hop Security

• Hardware:
  • CPU: Dual-core, up to 1.4 GHz
  • Memory: 1 GB DDR4
  • Flash Memory: 512 MB
  • Packet Buffer: 1.5 MB
  • Form Factor: Rack-mountable

Compatible Transceivers

The Cisco Catalyst C1300-24MGP-4X is a switch with four 10 Gigabit SFP+ ports, so you will need 10G SFP+ transceivers.
