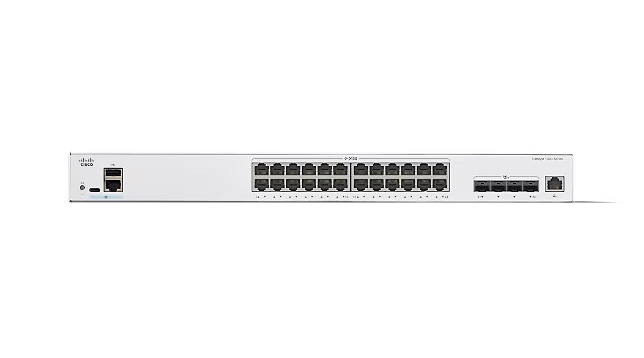

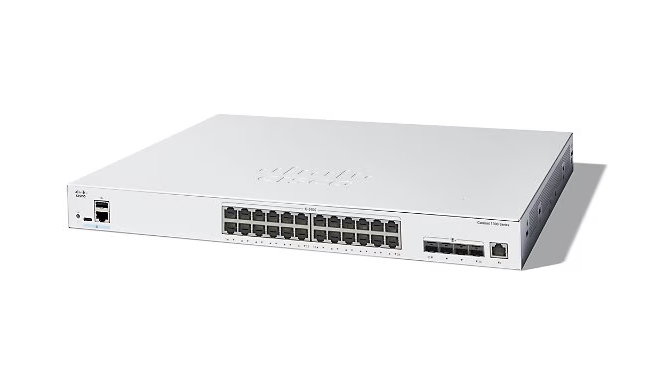

The Cisco Catalyst C1300-24XT is a fully managed, rack-mountable switch designed for small businesses, featuring 24 x 10 Gigabit Ethernet RJ-45 ports and 4 x 10 Gigabit combo RJ-45/SFP+ ports, a 1.4 GHz ARM processor, 1 GB of DDR4 RAM, 512 MB of flash memory, a switching bandwidth of 480 Gb/s, and support for both Layer 2 and Layer 3 networking. It offers advanced security, such as DHCP Snooping and Storm Control, along with features like Link Aggregation, IGMP Snooping, and support for jumbo frames.

Key Specifications

• Ports: 20 x 10 Gigabit Ethernet RJ-45, 4 x 10 Gigabit combo RJ-45/SFP+
• Switching Bandwidth: 480 Gb/s
• Forwarding Rate: 357.14 Mpps
• CPU: 1.4 GHz ARM processor
• Memory: 1 GB DDR4 SDRAM, 512 MB flash memory
• Interfaces: 1 RJ-45 console, 1 USB-A, 1 USB-C
• Stackable: Yes
• Protocols: Layer 2, Layer 3, DHCP, IPv4, IPv6, Link Aggregation, IGMP Snooping
• Power: Internal power supply, 100 to 240 VAC input
• Dimensions: 17.5 x 13.8 x 1.7 inches (445 x 350 x 44 mm)
• Rack Mountable: Yes
• Cooling: Fan

Key Features

• Management: Fully managed switch with web-based UI, CLI, and support for the Cisco Business Dashboard and mobile app.
• Security: Supports 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, and IPv6 First Hop Security for advanced threat protection.
• Performance: Designed for high-speed connectivity with 10 Gigabit ports and support for jumbo frames.
• Power Efficiency: Includes support for Energy Efficient Ethernet (IEEE 802.3az).
• Reliability: Features a metal chassis, extensive testing, and a Mean Time Between Failures (MTBF) of over 945,000 hours.

Compatible Transceivers

The Cisco C1300-24XT uses 10 Gigabit Small Form-Factor Pluggable Plus (SFP+) transceivers in its four uplink ports.
