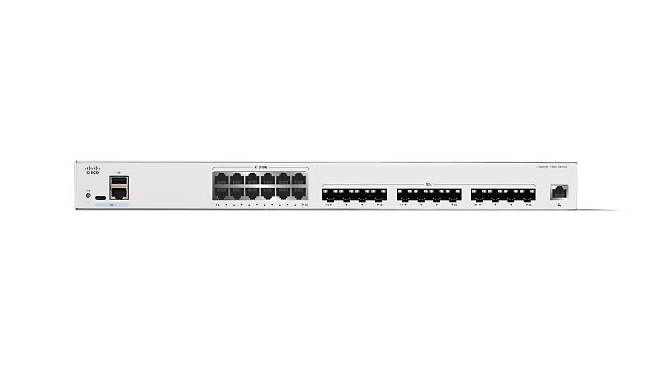

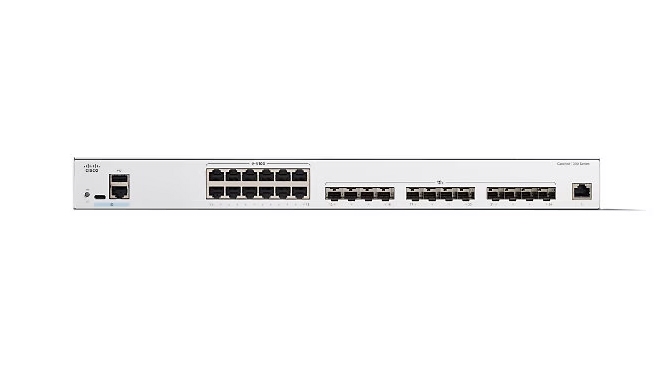

The Cisco Catalyst 1300-24XTS is a 24-port, Layer 3 managed network switch designed for small to medium-sized businesses, featuring 12 x 10G RJ45 Ethernet ports and 12 x 10G SFP+ ports for high-speed connectivity, along with a switching capacity of 480 Gb/s and a forwarding rate of 357.12 Mpps. It includes full Layer 2/3 capabilities, an intuitive web dashboard, and security features, with a fan-cooling system and rack-mountable design. The switch operates on a Linux-based software platform and supports management via a local web UI, command-line interface (CLI), and a Cisco Business mobile app or dashboard.

Key Specifications

• Port Configuration: 12 x 10Gbase-T RJ45 ports, 12 x 10GBase-X SFP+ ports.
• Switching Capacity: 480 Gb/s.
• Forwarding Rate: 357.12 Mpps.
• Layer Support: Layer 3.
• Management: Managed access switch with web UI, CLI, and Cisco Business Dashboard/Mobile App support.
• Connectivity: Supports IPv6 and offers a USB-C and RJ-45 console port for management.
• Cooling: Fan cooling system.
• Hardware Stacking: Front panel hardware stacking support.
• Form Factor: Rack-mountable (1U).
• Power: Built-in power supply.
• Processor: ARM processor with 1.4 GHz clock speed.
• Memory: 1 GB RAM, 512 MB flash memory.

Key Features

• High-Speed Connectivity: The combination of 10GBASE-T and SFP+ ports provides flexible high-bandwidth connectivity for demanding network environments.
• Simplified Management: Intuitive local web interface and mobile app options simplify setup, management, and monitoring, even for users without extensive IT expertise.
• Security: Pervasive security features are integrated to protect your network.
• Advanced Features: Full Layer 2 and Layer 3 capabilities allow for advanced routing and traffic management.

Compatible Transceivers

The Cisco C1300-24XTS switch supports a variety of 1 Gigabit (SFP) and 10 Gigabit (SFP+) transceivers.
