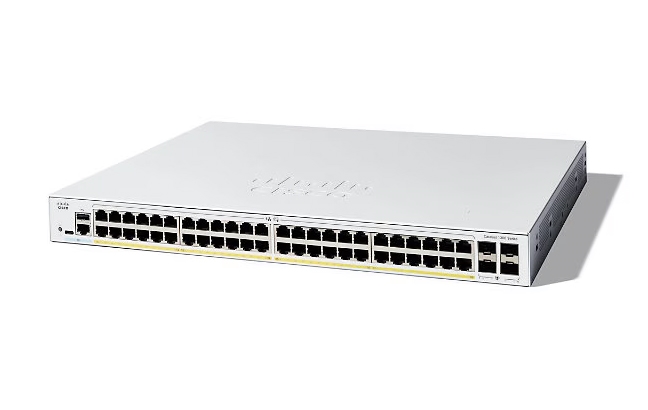

The Cisco C1300-48FP-4G is a 48-port Gigabit Ethernet switch with 4 SFP uplink ports, offering Power over Ethernet (PoE+) up to 30W per port and a total PoE budget of 740W. It features Layer 2 and Layer 3 capabilities, a switching bandwidth of 104 Gb/s, and supports advanced security features like DHCP Snooping and DoS Attack Prevention. The switch has 1 GB of RAM, 512 MB of Flash memory, a dual-core 1.4 GHz ARM CPU, and a fan for cooling.

Key Specifications

• Product Line: Cisco Catalyst 1300 Series
• Model:1300-48FP-4G
• Port Types:
  • 48 x RJ45 Gigabit Ethernet (PoE+)
  • 4 x SFP Gigabit Ethernet
  • 1 x RJ45 Console Port
  • 1 x USB-C Console Port

• Power Over Ethernet (PoE+):
  • Up to 30W per port (802.3at)
  • Total PoE Power Budget: 740W

• Performance:
  • Switching Bandwidth: 104 Gb/s
  • Forwarding Rate: 77.38 Mpps
  • Packet Buffer: 1.5 MB

• Memory:
  • 1 GB DDR4 SDRAM
  • 512 MB Flash Memory

• CPU: Dual-Core ARM, up to 1.4 GHz
• Features:
  • Stackable: Yes
  • Supported Protocols: Layer 2, Layer 3, Link Aggregation, IGMP Snooping, IPv4/IPv6, DHCP Server
  • Security: DHCP Snooping, Storm Control, RADIUS Authentication, DoS Attack Prevention
  • Management: Web dashboard, CLI, SNMP, HTTPS

• Physical:
  • Dimensions: 445 x 350 x 44 mm
  • Mounting: Rack Mountable (1RU)
  • Cooling: Internal fan

Compatible Transceivers

The Cisco C1300-48FP-4G switch supports standard 1 Gigabit SFP transceivers for uplinks.
