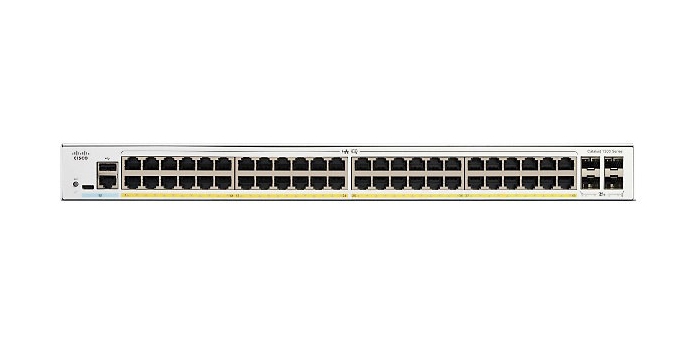

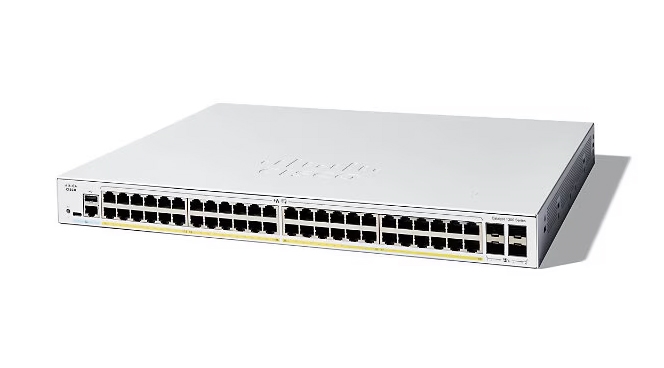

The Cisco Catalyst C1300-48P-4X is a managed, rack-mountable Gigabit Ethernet switch with 48 10/100/1000 PoE+ ports and 4 10 Gigabit SFP+ uplink ports, offering a 370W PoE power budget and a switching capacity of 176 Gbps. Key features include Layer 3 routing, enhanced security (IP-MAC binding, IPv6 First Hop Security), energy-efficient Ethernet, and simple management via a web UI, mobile app, or dashboard.

Core Specifications

• Device Type: Managed Layer 3 Switch
• Ports:
  • 48 x 10/100/1000 (Gigabit Ethernet) with PoE+ (Power over Ethernet Plus)
  • 4 x 10 Gigabit SFP+ for uplinks

• Power:
  • PoE+ power budget: 370-375W

• Performance:
  • Switching Capacity: 176 Gbps
  • Forwarding Rate: 130.94 Mpps (Million packets per second)

• Form Factor: Rack-mountable (1U)

Management & Security

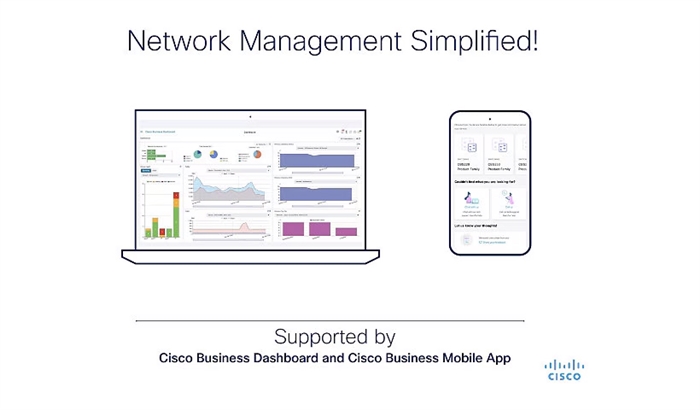

• Management: Intuitive web UI, Cisco Business mobile app, Cisco Business Dashboard
• Protocols: Supports advanced routing, SNMP, SSH, Telnet, and more
• Security: IP-MAC Port Binding, IPv6 First Hop Security, ACLs (Access Control Lists)

Other Features

• VLANs: Supports 4093 VLAN IDs
• Jumbo Frames: Supports jumbo frames up to 9000 bytes
• Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet
• Connectivity: 1 x console RJ-45 port, 1 x USB-C console port

Compatible Transceivers

The Cisco C1300-48P-4X switch supports compatible SFP+ transceivers for its four 10 Gigabit uplink ports.
