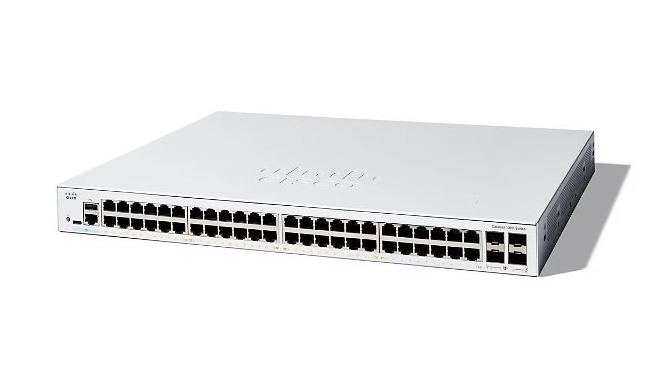

The Cisco Catalyst C1300-48T-4G is a 48-port, managed, Layer 3 Gigabit Ethernet switch with four SFP ports for uplinks, designed for small-to-medium businesses. Key specifications include an ARM processor, 1 GB of RAM, 512 MB of flash memory, support for IEEE 802.3 standards, and a 1U rack-mountable form factor. It features robust security capabilities like DHCP snooping, IP Source Guard, and ARP inspection, along with advanced Layer 3 routing to offload internal traffic from routers.

Ports and Connectivity

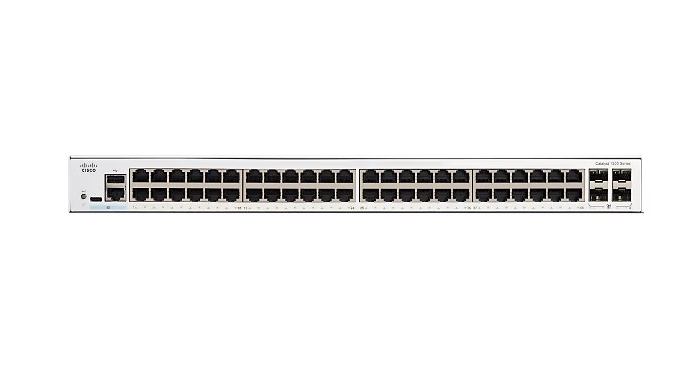

• Ports: 48 x 10/100/1000Base-T RJ-45 Ethernet ports
• Uplink Ports: 4 x Gigabit SFP ports
• Console Ports: 1 x RJ-45 console port and 1 x USB-C console port

Hardware and System

• Processor: 1.4 GHz ARM processor
• Memory: 1 GB DDR4 SDRAM
• Flash Memory: 512 MB
• Switching Capacity: 176 Gbps

Key Features

• Managed Switch: Offers advanced configuration and control over network traffic.
• Layer 3 Capabilities: Includes dynamic Layer 3 routing to segment networks into workgroups and improve performance by reducing router load.
• Security: Incorporates features like DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, and Port Security to prevent unauthorized devices and protect against DoS attacks.
• Rack Mountable: Designed to be mounted in a 1U rack.
• Platform: Operates on a customized Linux OS with an intuitive dashboard for simplified network management.

Environmental and Electrical

• Power: Operates on AC voltage between 100 to 240 VAC.
• Dimensions: 17.5 x 11.3 x 1.7 inches (445 x 288 x 44 mm)
• Certifications: CE, CSA, FCC, and UL certified.

Compatible Transceivers

The Cisco C1300-48T-4G switch supports standard 1 Gigabit (1G) SFP transceivers for its four uplink ports
