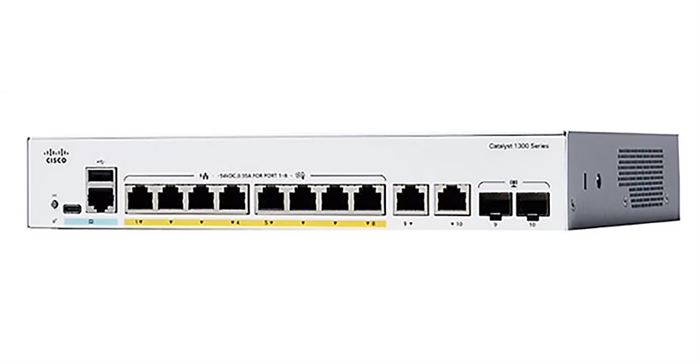

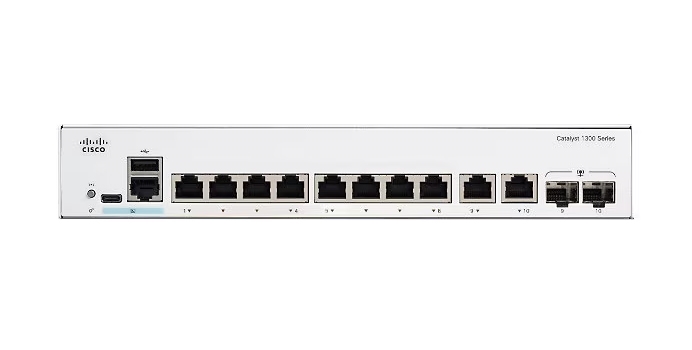

The Cisco C1300-8T-E-2G is an 8-port, rack-mountable, managed Gigabit Ethernet switch designed for small to medium businesses. It features 8 Gigabit Ethernet ports and 2 RJ45/SFP combo uplink ports, a fanless design, and 20 Gb/s switching capacity. Key specifications include 1 GB of RAM, 512 MB of flash memory, a 1.4 GHz ARM processor, and support for Layer 2 and Layer 3 features.

Key Specifications

• Manufacturer: Cisco
• Product Line: Cisco Catalyst 1300
• Model: C1300-8T-E-2G
• Ports: 8 x 10/100/1000Base-T RJ-45 ports and 2 x 1000Base-X RJ-45/SFP combo ports
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps (Million packets per second)
• RAM: 1 GB
• Flash Memory: 512 MB
• Processor: 1.4 GHz ARM-based
• Form Factor: Rack-mountable
• Cooling: Passive, fanless system
• Management: Managed switch with advanced Layer 3 features

Features & Capabilities

• Connectivity: Provides Gigabit-speed Ethernet connections for computers and other network devices.
• Uplink Options: Two combo ports allow for flexible copper or fiber optic uplinks.
• Security: Includes advanced threat protection and security features to protect business-critical transactions.
• Power: Uses an internal power supply.
• Management: Features a simple, flexible, and secure network management system with an intuitive dashboard for easy network setup.
• VLANs: Supports Virtual LANs for network segmentation.

Compatible Transceivers

The Cisco Catalyst C1300-8T-E-2G uses 1 Gigabit SFP transceivers for its two combo ports, which also support copper Gigabit connections.
