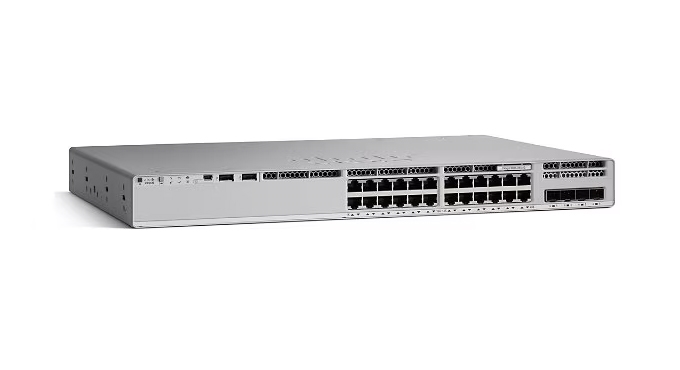

The Cisco C9200-24T-E is a 24-port Gigabit Ethernet switch that supports Layer 3 routing, with a total switching capacity of 128 Gbps and a forwarding rate of 190.4 Mpps. It features modular uplink options, includes a Network Essentials software license, has support for 160 Gbps stacking bandwidth, and offers a 6 MB packet buffer. This non-PoE model comes with a default internal power supply and is designed for rack-mounting.

Key Specifications

• Ports: 24 x 10/100/1000BASE-T copper ports (data only)
• Uplink: Modular uplink options for flexible connectivity
• Switching Capacity: 128 Gbps
• Forwarding Rate: 190.4 Mpps
• Stacking: Supports up to 160 Gbps stacking bandwidth
• Software: Includes Cisco Catalyst 9200 Series Network Essentials
• Layer: Layer 3 managed switch
• Routing Table: Supports up to 4,000 IPv4 and 2,000 IPv6 routing entries
• MAC Address Table: 32,000 entries
• Memory: 4 GB Flash and 4 GB DRAM
• Packet Buffer: 6 MB per SKU
• VLAN IDs: 4096 VLAN IDs supported
• Power: Default internal AC power supply (PWR-C5-125WAC); supports redundant power supplies
• Physical Dimensions: 1.73 x 17.5 x 13.8 in. (4.4 x 44.5 x 35 cm)
• Weight: 5.0 Kg

Features

• Cost-Effective: A budget-friendly, yet feature-rich solution for branch office access.
• High Availability: Features Resilient Architecture, including redundant power supply support.
• ** Continuous Security: ** Designed for robustness and security with hardware and software integrity.
• ** Flexible Automation: ** Incorporates features from the Cisco Digital Network Architecture (DNA) with open APIs.
• ** Programmability: ** Utilizes UADP ASIC technology for programmability and adaptability.
• Rack-Mountable: Designed for standard rack mounting.
