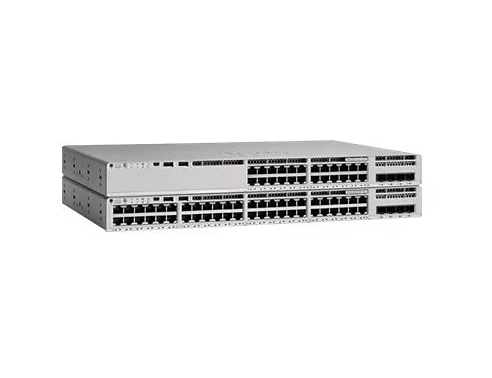

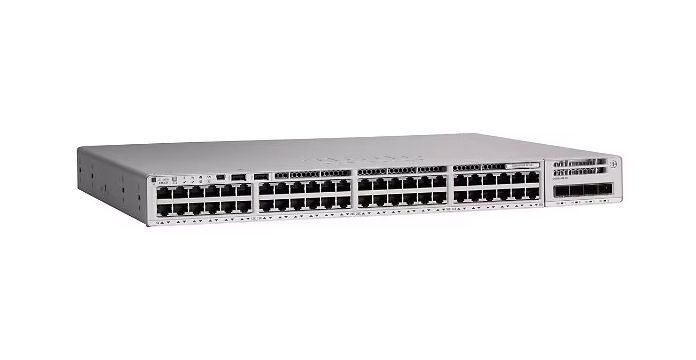

The C9200-48P-A is a Cisco Catalyst 9200 Series 48-port, managed, rack-mountable switch offering 48x 1 Gigabit Ethernet PoE+ RJ-45 ports and a total switching capacity of 176 Gbps. Key features include StackWise-160 stacking, 4 GB of RAM and 4 GB of Flash memory, and a default 740W PoE budget, with the option for up to 1440W with a second power supply. It also includes 1x RJ-45 console port, 1x Gigabit management port, and 2x USB ports for management and connectivity.

Key Specifications

• Ports: 48 x 1 Gigabit Ethernet PoE+ (RJ-45)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 261.9 Mpps (Million packets per second)
• PoE Budget:
  • 740W (with one power supply)
  • 1440W (with dual power supplies)

• Memory: 4 GB DRAM and 4 GB Flash memory
• Management Ports: 1x RJ-45 console, 1x Gigabit management, 2x USB
• Stacking: Supports StackWise-160 (160 Gbps bandwidth)
• Power Supply: Has 2 power supply slots for optional redundant power supplies
• Chassis Dimensions: 1.73 x 17.5 x 13.8 inches (H x W x D)

Features

• Network Advantage: A software feature providing advanced networking, security, and management capabilities.
• StackWise-160: Allows for stacking multiple switches to act as a single, large virtual switch for increased capacity and management simplicity.
• PoE+: Powers devices such as phones and access points, reducing the need for separate power cabling and increasing flexibility.
• Smart and Secure: Built with enhanced security features and designed for IT simplicity.
• Modular Uplinks: Allows for flexible uplink configuration through optional network modules.
