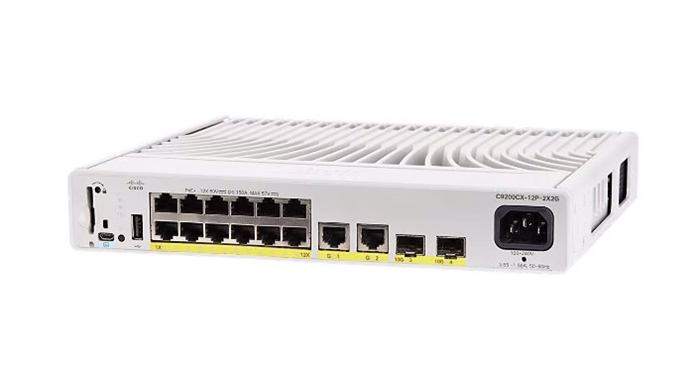

The Cisco C9200CX-12P-2X2G-A is a compact, managed, L3 switch featuring 12 x 1 Gigabit Ethernet PoE+ RJ-45 ports, 2 x 1 Gigabit Ethernet copper uplink ports, and 2 x 10 Gigabit Ethernet SFP+ uplink ports. It offers a 240W PoE budget, a 68 Gbps switching capacity, and a forwarding rate of 50.59 Mpps, with 4 GB of DRAM and 8 GB of flash memory for its operation. This fanless switch supports advanced features like Layer 3 capabilities, AES-256 MACsec encryption, and provides a durable, high-performance solution for modern network needs, especially in branch offices.

Key Specifications

• Network Ports: 12 x 1 Gbps Ethernet PoE+ RJ-45 ports
• Uplink Ports:
  • 2 x 1 Gbps Copper RJ-45 uplinks
  • 2 x 10 Gbps SFP+ uplinks

• PoE Budget: 240W maximum
• Switching Capacity: 68 Gbps
• Forwarding Rate: 50.59 Mpps
• Memory: 4 GB DRAM, 8 GB Flash
• Console Ports: 1 x micro-USB console port
• Management & Storage: 1 x USB 2.0 Type A port for storage
• Hardware Features: Fanless design, internal fixed power supply
• Security: AES-256 MACsec encryption
• Other Features: Supports Layer 3 routing, optional stacking up to 160 Gbps, and flexible power options

Compatible Transceivers

The Cisco Catalyst C9200CX-12P-2X2G-A switch features two fixed 10G SFP+ uplink ports, which can use compatible 10G SFP+ optical transceivers.
